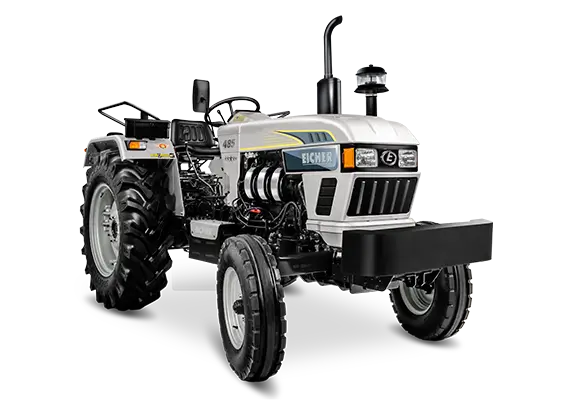

The Eicher 485 is a tractor model with a rated output of 42 hp — making it one of the more compact options in its class. Power comes from a 3-cylinder diesel air-cooled engine, driving through two-wheel drive with a 8-speed gearbox. Listed weight is 2044 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
2044 kg
Catalogue coverage
Variants represented
2
Richest spec table
44 rows
Recorded power
42 hp
Recorded weight
2044 kg
Transmissions
8-speed gear
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerEicher (a part of TAFE)Reference
Built in IndiaReference
Two-wheel driveReference
Manual steeringReference
Mechanical dry disc brakesReference
Open operator station.Reference
Engine
Eicher 2.9L 3-cyl dieselReference
Engine31.3 kWReference
Eicher 398 EDReference
dieselReference
3-cylinderReference
air-cooledReference
Displacement2.9 LReference
Bore/Stroke100 x 125 mmReference
Power31.3 kWReference
Fuel systemdirect injectionReference
Rated RPM2150Reference
StarterelectricReference
Starter volts12Reference
Oil capacity9.0 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchmechanical dry discReference
Oil capacity37.0 LReference
Capacities
Fuel48.1 LReference
PTO & Hydraulics
Hydraulic system37.1 LReference
Typeopen centerReference
Capacity37.1 LReference
Rear lift1200 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Dimensions
Wheelbase200 cmReference
Weight2044 kgReference
Front tire6.00x16Reference
Rear tire13.6x28Reference
Standard tires (ag)Front: 6.00x16. Rear: 13.6x28Reference
Length259 cmReference
Width170 cmReference
Height215 cmReference
Ground clearance38 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Battery AH75Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
