Tractor · Unverified

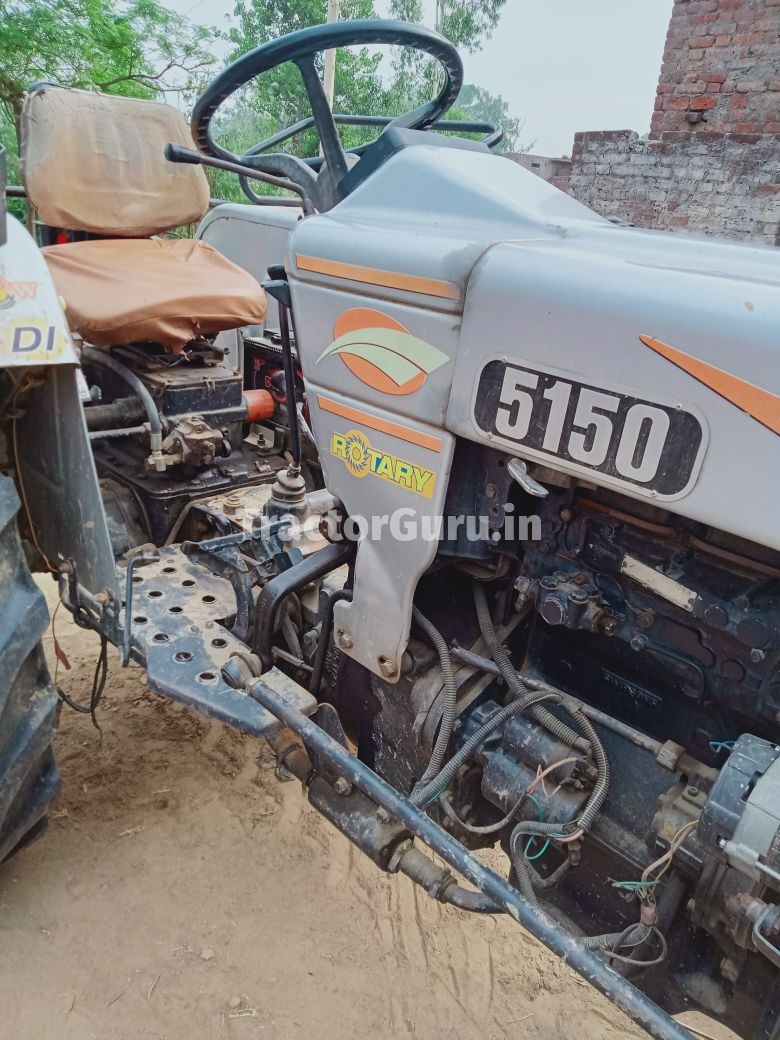

Eicher 5150
Eicher 5150 · 47 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
2100 kg
Hover a source tag to verify
Overview
ManufacturerEicher (a part of TAFE)Reference
Built in IndiaReference
Two-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Mechanical dry disc brakesReference
Open operator station.Reference
Engine
Simpson 2.5L 3-cyl dieselReference
Engine35.0 kWReference
Simpson S325Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power35.0 kWReference
Rated RPM2250Reference
StarterelectricReference
Starter volts12Reference
Oil capacity7.8 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchmechanical dry discReference
Oil capacity43.0 LReference
Capacities
Fuel45.0 LReference
PTO & Hydraulics
Hydraulic system43.1 LReference
Typeopen centerReference
Capacity43.1 LReference
Rear lift1200 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Dimensions
Wheelbase190 cmReference
Weight2100 kgReference
Front tire6.00x16Reference
Rear tire13.6x28Reference
Standard tires (ag)Front: 6.00x16. Rear: 13.6x28Reference
Length352 cmReference
Width176 cmReference
Height221 cmReference
Ground clearance35 cmReference
Electrical
Charging systemalternatorReference
Charging amps23Reference
Battery volts12Reference
Battery AH75Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
