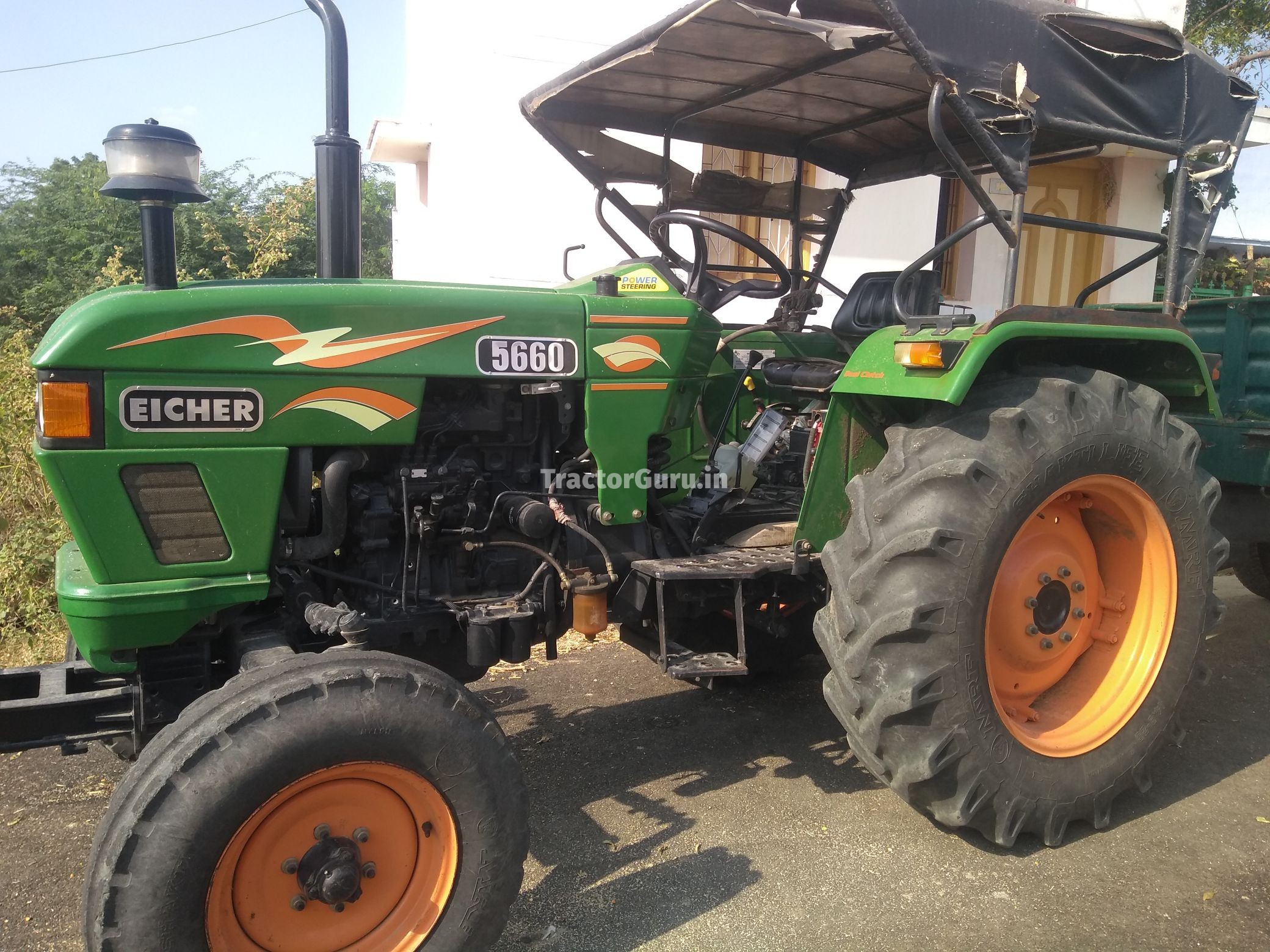

The Eicher 5660 is a tractor model rated at 52 hp — making it one of the more compact options in its class. It is powered by a 3-cylinder diesel liquid-cooled engine, driving through two-wheel drive with a 8-speed gearbox. Listed weight is 2199 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
2199 kg
Catalogue coverage
Variants represented
2
Richest spec table
44 rows
Recorded power
52 hp
Recorded weight
2199 kg
Transmissions
8-speed gear
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerEicher (a part of TAFE)Reference
Built in IndiaReference
Two-wheel driveReference
Manual steeringReference
Mechanical dry disc brakesReference
Open operator station.Reference
Engine
Eicher 3.3L 3-cyl dieselReference
Engine38.5 kWReference
Eicher 320 DEDReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
Power38.5 kWReference
Rated RPM2150Reference
StarterelectricReference
Starter volts12Reference
Oil capacity9.2 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchmechanical dry discReference
Oil capacity40.0 LReference
Capacities
Fuel45.0 LReference
PTO & Hydraulics
Hydraulic system40.1 LReference
Typeopen centerReference
Capacity40.1 LReference
Rear lift1300 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Dimensions
Wheelbase198 cmReference
Weight2199 kgReference
Front tire7.50x16Reference
Rear tire14.9x28Reference
Standard tires (ag)Front: 7.50x16. Rear: 14.9x28Reference
Length366 cmReference
Width178 cmReference
Height224 cmReference
Ground clearance38 cmReference
Electrical
Charging systemalternatorReference
Charging amps23Reference
Battery volts12Reference
Battery AH75Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
