Tractor · 1946Unverified

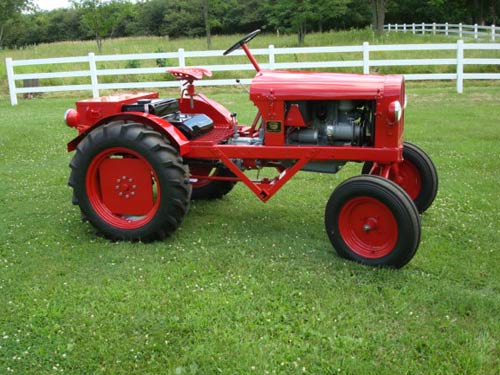

Empire 88
Empire 88 · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
1134 kg
Hover a source tag to verify
Overview
ManufacturerEmpireReference
Built in Philadelphia, Pennsylvania, USAReference
Two-wheel driveReference
SteeringmanualReference
Open operator station.Reference
Engine
Willys 2.2L 4-cyl gasolineReference
Fuel tank26.9 LReference
Engine29.8 kWReference
WillysReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke79 x 111 mmReference
Power29.8 kWReference
Air cleaneroil bathReference
Rated RPM2000Reference
Oil capacity3.8 LReference
Coolant capacity15.1 LReference
Transmission
6-speed gearReference
TransmissionWarner Gear T-84Reference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Three gears (1-3) plus reverse (R) with a two-speed Spicer transfer case.Reference
Dimensions
Wheelbase194 cmReference
Weight1134 kgReference
Front tire5.50-16Reference
Rear tire9-24Reference
Ag front5.50-16Reference
Ag rear9-24Reference
88 Serial Numbers
Location:On dashboard behind steering wheel.Reference
Electrical
Charging systemAutolight generatorReference
Charging amps35Reference
Charging volts6Reference
Battery volts6Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
