Tractor · 2010Unverified

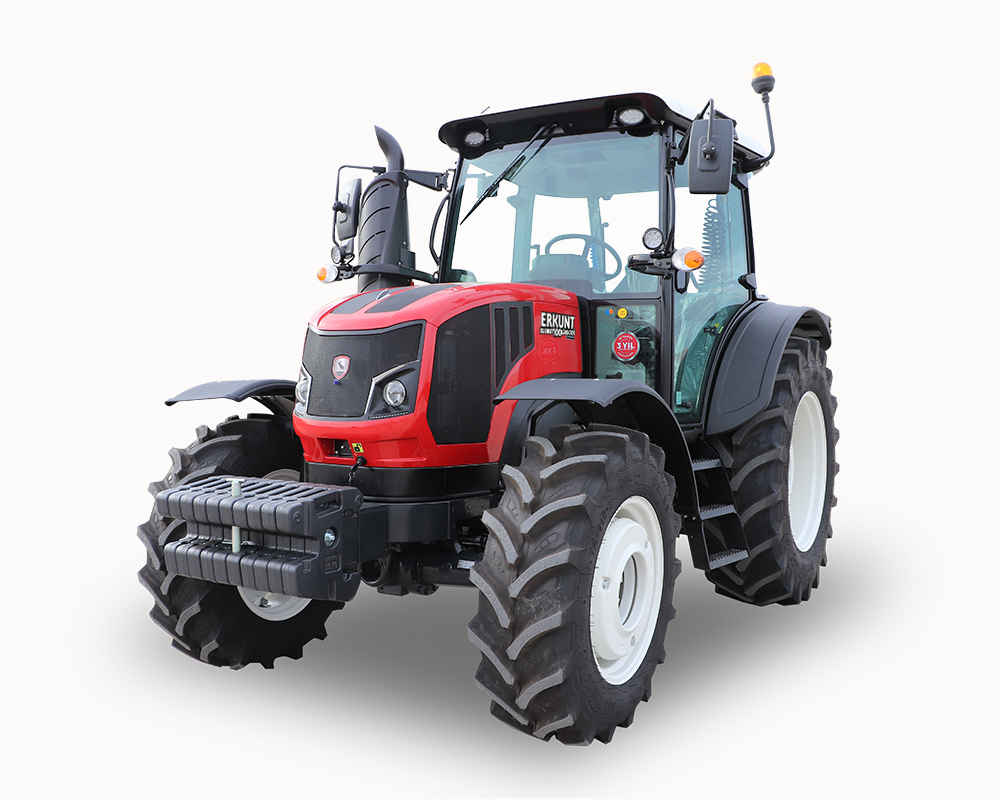

Erkunt Kudret 100
Erkunt Kudret 100 — Row-Crop tractor · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
4950 kg
Hover a source tag to verify
Overview
ManufacturerErkuntReference
Row-Crop tractorReference
Built in Ankara, TurkeyReference
Four-wheel driveReference
Cab standard with air-conditioning.Reference
Variants
CRDDeutz engineReference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank110.1 LReference
Engine74.9 kWReference
Perkins 1104D-44TAReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsStage IIIAReference
Power74.9 kWReference
Rated RPM2200Reference
Torque410.1 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
16-speed power shuttleReference
Typepower shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
Pressure190.0 barReference
Valves8Reference
Pump flow60.2 lpmReference
Rear lift5000 kgReference
Rear PTOindependentReference
Rear PTO Type430/540/540E/1000Reference
Dimensions
Wheelbase240 cmReference
Weight4950 kgReference
Front tire360/70R28Reference
Rear tire420/85R38Reference
Standard tires (ag)Front: 360/70R28. Rear: 420/85R38Reference
Length444 cmReference
Width200 cmReference
Height (cab)283 cmReference
Front tread165 to 186 cmReference
Rear tread162 to 186 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
