Tractor · 2010Unverified

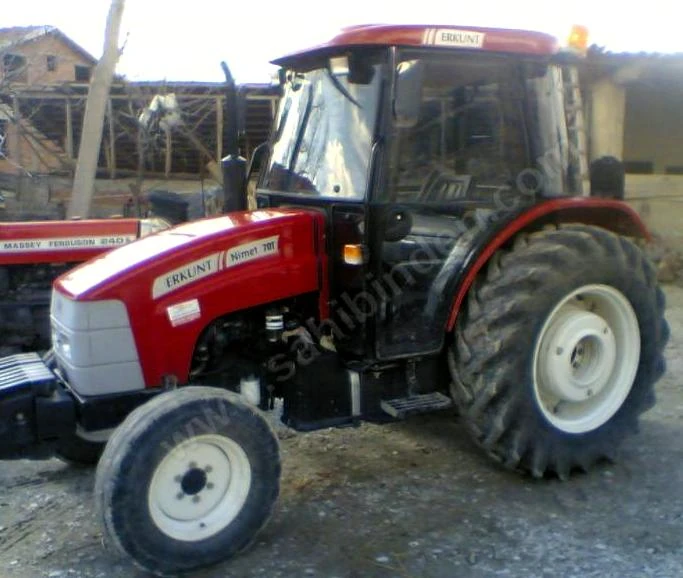

Erkunt Nimet 70
Erkunt Nimet 70 — Utility tractor · 91 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
91 hp
Weight
7716 to 8598 pounds
Hover a source tag to verify
Overview
ManufacturerErkuntReference
Utility tractorReference
Built in Ankara, TurkeyReference
Two- or four-wheel driveReference
ROPS. Cab available with air-conditioning.Reference
Engine
Perkins 3.3L 3-cyl dieselReference
Fuel tank110.1 LReference
Engine68.0 kWReference
Perkins 1103D-33TAReference
turbocharged intercooled dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke105 x 127 mmReference
EmissionsStage IIIAReference
Power68.0 kWReference
Rated RPM2200Reference
Torque285.0 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
16-speed power shuttleReference
Typepower shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
Pressure190.0 barReference
Valves4Reference
Pump flow48.4 lpmReference
Rear lift3200 kgReference
Rear PTOindependentReference
Rear PTO Type430/540/540E/1000Reference
Dimensions
2WD Wheelbase217 cmReference
4WD Wheelbase220 cmReference
Weight7716 to 8598 poundsReference
Front tire7.50-16Reference
2WD Rear tire13.6-36Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 13.6-36Reference
4WD Standard tires (ag)Front: 280/85R24. Rear: 340/85R36Reference
Length408 cmReference
Width193 cmReference
Height (ROPS)272 cmReference
Height (cab)272 cmReference
Rear tread150 to 189 cmReference
2WD ROPS3499 kgReference
4WD ROPS3800 kgReference
4WD Cab3680 kgReference
4WD Cab3900 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
