Tractor · 2010Unverified

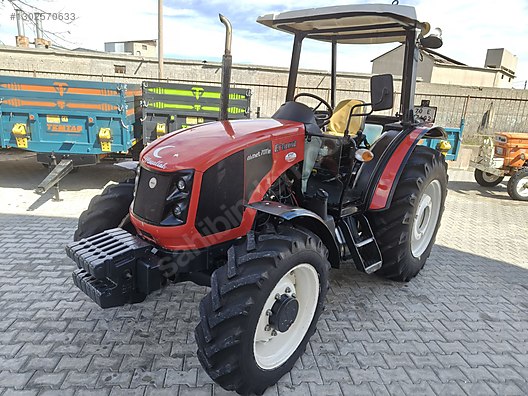

Erkunt Nimet 70E
Erkunt Nimet 70E — Utility tractor · 67 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
67 hp
Weight
7606 to 8047 pounds
Hover a source tag to verify
Overview
ManufacturerErkuntReference
Utility tractorReference
Built in Ankara, TurkeyReference
Two- or four-wheel driveReference
Two-post folding ROPS. Cab optional.Reference
Engine
Perkins 3.3L 3-cyl dieselReference
Fuel tank110.1 LReference
Engine50.0 kWReference
Perkins 1103D-33TAReference
turbocharged intercooled dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke105 x 127 mmReference
EmissionsStage IIIAReference
Power50.0 kWReference
Rated RPM2200Reference
Torque285.0 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
12-speed sync shuttleReference
24-speed sync shuttleReference
Typesync shuttleReference
Gears12 forward and reverseReference
Gears24 forward and reverseReference
PTO & Hydraulics
Pressure190.0 barReference
Valves4Reference
Pump flow48.4 lpmReference
Rear lift2600 kgReference
Plus Rear lift3000 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Dimensions
2WD Wheelbase217 cmReference
4WD Wheelbase220 cmReference
Weight7606 to 8047 poundsReference
Front tire280/85R24Reference
4WD Rear tire420/85R30Reference
4WD Standard tires (ag)Front: 280/85R24. Rear: 420/85R30Reference
4WD Standard tires (ag)Front: 320/85R24. Rear: 340/85R36Reference
Length395 cmReference
Width193 cmReference
ROPS Weight3450 kgReference
Cab Weight3650 kgReference
Erkunt Nimet 70E Height
ROPS262 cmReference
2WD Cab262 cmReference
4WD Cab254 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
