Tractor · 2010Unverified
Erkunt Servet 80.4M

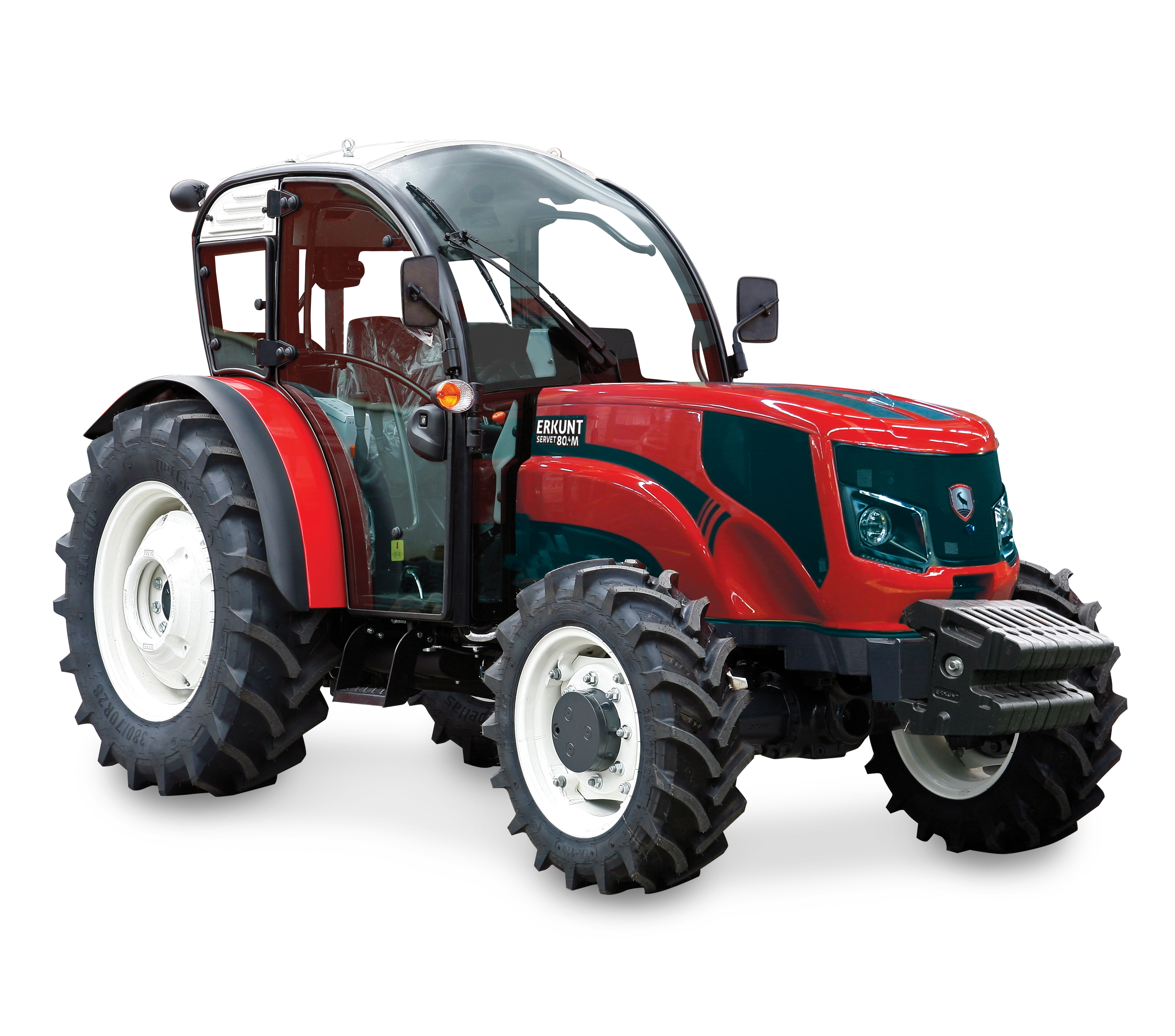

Erkunt Servet 80.4M — Orchard/Vineyard tractor · 74 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Weight
6107 to 6702 pounds
Hover a source tag to verify
Overview
ManufacturerErkuntReference
Orchard/Vineyard tractorReference
Built in Ankara, TurkeyReference
Two- or four-wheel driveReference
Two-post mid-mount ROPS. Cab optional.Reference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine55.5 kWReference
Perkins 1104D-44TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsStage IIIAReference
Power55.5 kWReference
Rated RPM2200Reference
Torque307.0 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
16-speed power shuttleReference
Typepower shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
Pressure180.0 barReference
Valves4Reference
Pump flow36.0 lpmReference
Rear lift2800 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Dimensions
Wheelbase228 cmReference
Weight6107 to 6702 poundsReference
Front tire280/70R18Reference
4WD Rear tire380/70R28Reference
4WD Standard tires (ag)Front: 280/70R18. Rear: 380/70R28Reference
4WD Standard tires (ag)Front: 260/70R16. Rear: 380/70R24Reference
Length414 cmReference
Width167 cmReference
Height (ROPS)154 cmReference
Height (cab)215 cmReference
2WD Front tread130 cmReference
4WD Front tread135 cmReference
Rear tread130 cmReference
2WD ROPS2770 kgReference
4WD ROPS2919 kgReference
4WD Cab3040 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
