Tractor · 2010Unverified

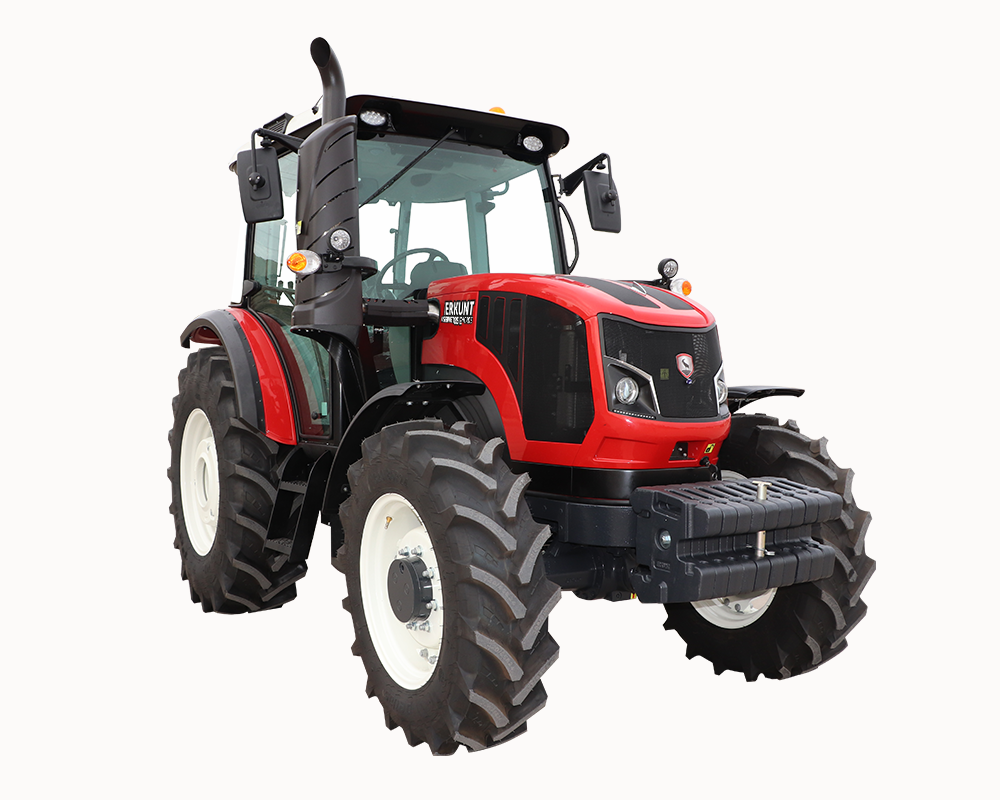

Erkunt Servet 85
Erkunt Servet 85 — Utility tractor · 85 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Weight
8488 to 9039 pounds
Hover a source tag to verify
Overview
ManufacturerErkuntReference
Utility tractorReference
Built in Ankara, TurkeyReference
Four-wheel driveReference
ROPS. Cab available with air-conditioning.Reference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank110.1 LReference
Engine63.5 kWReference
Perkins 1104D-44TReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsStage IIIAReference
Power63.5 kWReference
Rated RPM2200Reference
Torque368.0 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
16-speed power shuttleReference
Typepower shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
Pressure190.0 barReference
Valves4Reference
Pump flow48.4 lpmReference
Rear lift3900 kgReference
Rear PTOindependentReference
Rear PTO Type430/540/540E/1000Reference
Dimensions
Wheelbase232 cmReference
Weight8488 to 9039 poundsReference
Front tire320/85R24Reference
Rear tire380/85R38Reference
Standard tires (ag)Front: 320/85R24. Rear: 380/85R38Reference
Standard tires (ag)Front: 280/85R24. Rear: 460/85R30Reference
Length421 cmReference
Width199 cmReference
Height (ROPS)275 cmReference
Height (cab)275 cmReference
ROPS Weight3850 kgReference
Cab Weight4100 kgReference
Rear tread150 to 189 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
