Tractor · 2010Unverified

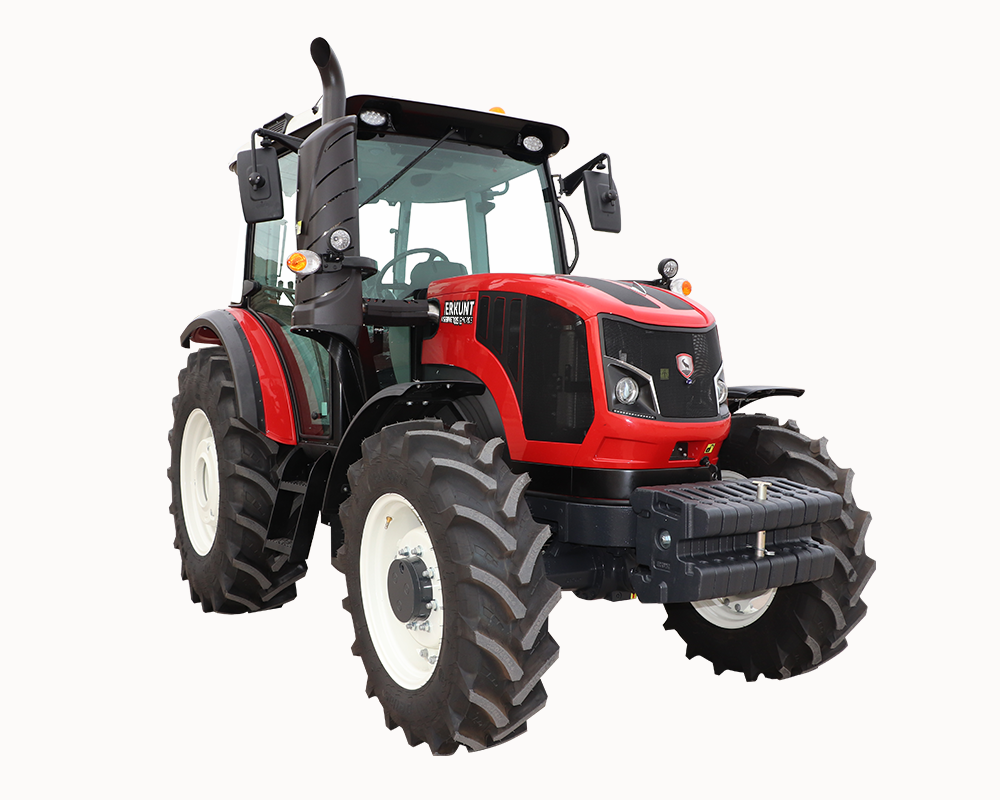

Erkunt Servet 85E
Erkunt Servet 85E — Utility tractor · 85 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Weight
7584 to 8091 pounds
Hover a source tag to verify
Overview
ManufacturerErkuntReference
Utility tractorReference
Built in Ankara, TurkeyReference
Four-wheel driveReference
Four-post ROPS. Cab optional.Reference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank110.1 LReference
Engine63.5 kWReference
Perkins 1104D-44TReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsStage IIIAReference
Power63.5 kWReference
Rated RPM2200Reference
Torque368.0 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
12-speed sync shuttleReference
24-speed sync shuttleReference
Typesync shuttleReference
Gears12 forward and reverseReference
Gears24 forward and reverseReference
PTO & Hydraulics
Pressure190.0 barReference
Valves4Reference
Pump flow48.4 lpmReference
Rear lift2600 kgReference
Plus Rear lift3000 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Dimensions
Wheelbase232 cmReference
Weight7584 to 8091 poundsReference
Front tire280/85R24Reference
Rear tire420/85R30Reference
Standard tires (ag)Front: 280/85R24. Rear: 420/85R30Reference
Standard tires (ag)Front: 320/85R24. Rear: 340/85R36Reference
Standard tires (ag)Front: 320/85R24. Rear: 460/85R30Reference
Standard tires (ag)Front: 320/85R28. Rear: 380/85R38Reference
Length411 cmReference
Width199 cmReference
Height (cab)272 cmReference
ROPS Weight3440 kgReference
Cab Weight3670 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
