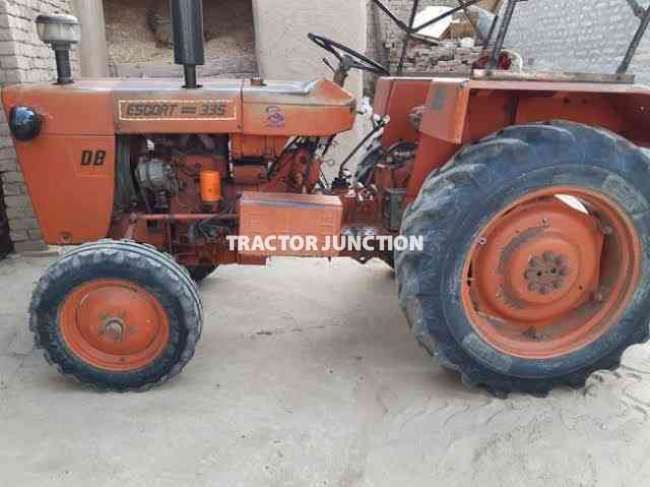

The Escorts 335 is a tractor model with a rated power output of 35 hp, positioning it at the lighter end of its class. It is powered by a diesel liquid-cooled engine and features a two-wheel drive system with a 6-speed gearbox. The tractor's operating weight is listed at 1564 kg, making it suitable for operations of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1564 kg
Catalogue coverage
Variants represented
2
Richest spec table
35 rows
Recorded power
35 hp
Recorded weight
1564 kg
Transmissions
6-speed gear
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerEscortsReference
Utility tractorReference
Two-wheel driveReference
Mechanical brakesReference
Open operator station.Reference
Engine
Escorts dieselReference
Engine26.1 kWReference
EscortsReference
dieselReference
liquid-cooledReference
Power26.1 kWReference
Fuel systemmechanical injectionReference
Rated RPM2200Reference
Torque100.3 NmReference
Torque RPM1800Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch254mm dry discReference
PTO & Hydraulics
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2160Reference
Dimensions
Wheelbase157 cmReference
Weight1564 kgReference
Front tire5.50/6.00x16Reference
Rear tire12.4/11-28Reference
Ag front5.50/6.00x16Reference
Ag rear12.4/11-28Reference
Length310 cmReference
Width124 cmReference
Height (exhaust)204 cmReference
Front tread126 to 161 cmReference
Rear tread124 to 184 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
