Tractor · 1952Unverified

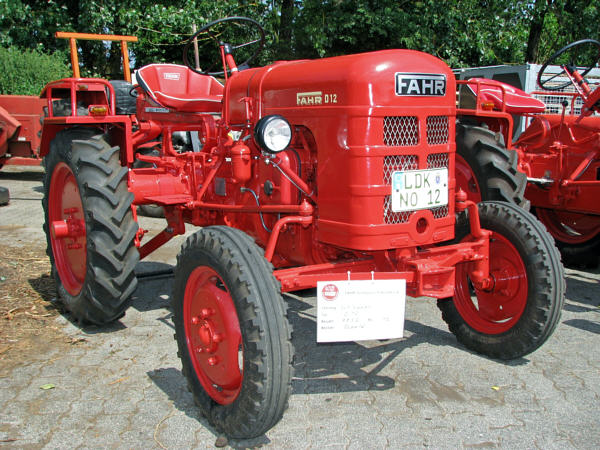

Fahr D12H

Name: Fahr D12H
Brand: Fahr

Fahr D12H · 12 hp. Reference specifications; pending source verification.

The Fahr D12H tractor is equipped with a 1-cylinder diesel liquid-cooled engine and has a maximum power output of approximately 12 horsepower. It was manufactured from 1952 to 1953 and features two-wheel drive with a 5-speed gearbox. The tractor is suitable for use on areas of up to 200 acres, and specifications for both the UK and US markets are available.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

12 hp

Catalogue coverage

Variants represented

Richest spec table

23 rows

Recorded power

12 hp

Transmissions

5-speed gear

Production years

1952-1953

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFahrReference

Total built23Reference

Two-wheel driveReference

Manual steeringReference

Open operator station.Reference

Variants

D12regular wheelReference

D12Hhigh-wheelReference

Engine

Guldner 0.8L 1-cyl dieselReference

Engine8.9 kWReference

Guldner 1DAReference

dieselReference

1-cylinderReference

liquid-cooledReference

Displacement0.8 LReference

Bore/Stroke95 x 115 mmReference

Power8.9 kWReference

Transmission

5-speed gearReference

TransmissionZF A8BReference

TypegearReference

Gears5 forward and 1 reverseReference

PTO & Hydraulics

Rear PTO Type540Reference

Dimensions

Wheelbase153 cmReference

Length247 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
