Tractor · 1953Unverified

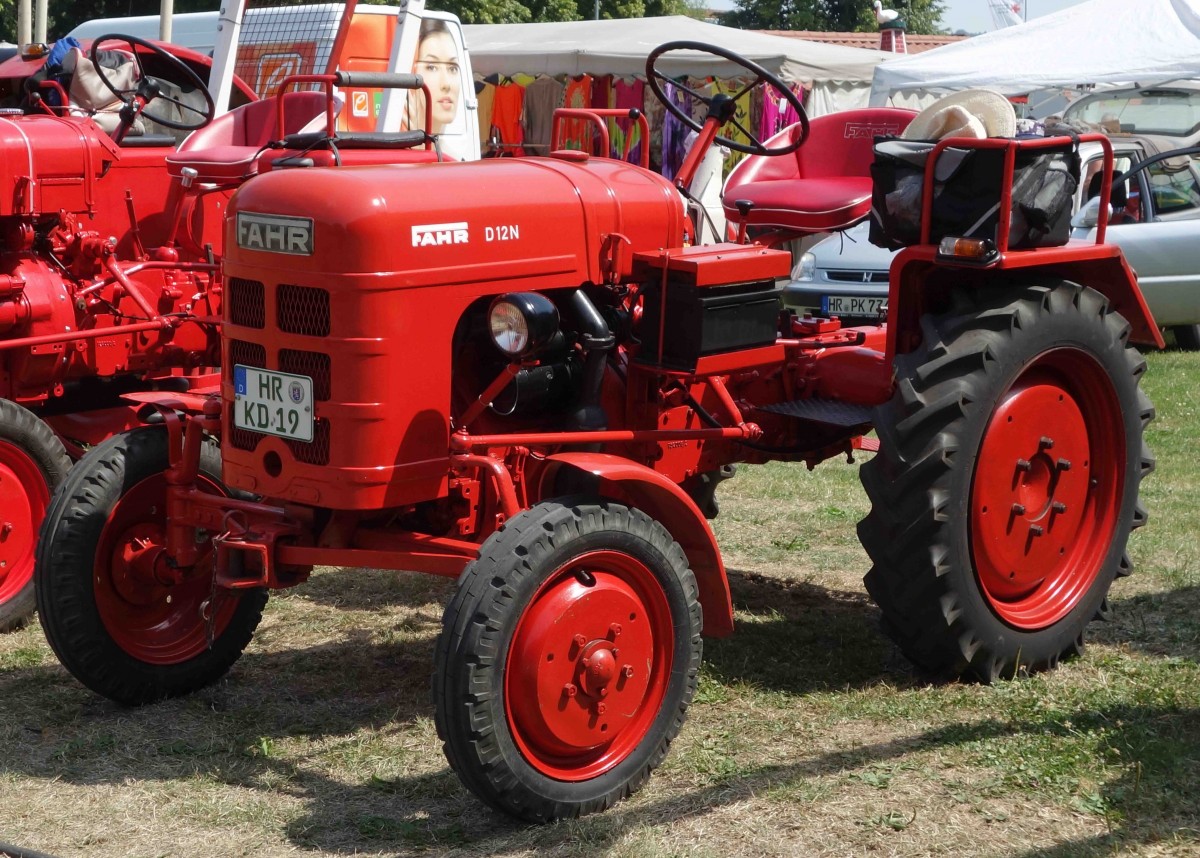

Fahr D12N
Fahr D12N · 12 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
12 hp
Weight
1099 kg
Hover a source tag to verify
Overview
ManufacturerFahrReference
Total built930Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
D12Nregular wheelReference
D12NHhigh-wheelReference
Engine
Guldner 0.8L 1-cyl dieselReference
Engine8.9 kWReference
Guldner 1DAReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke95 x 115 mmReference
Power8.9 kWReference
Transmission
10-speed gearReference
TransmissionZF A5AReference
TypegearReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase153 cmReference
Weight1099 kgReference
Length247 cmReference
Width147 cmReference
Height167 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
