Tractor · 1954Unverified

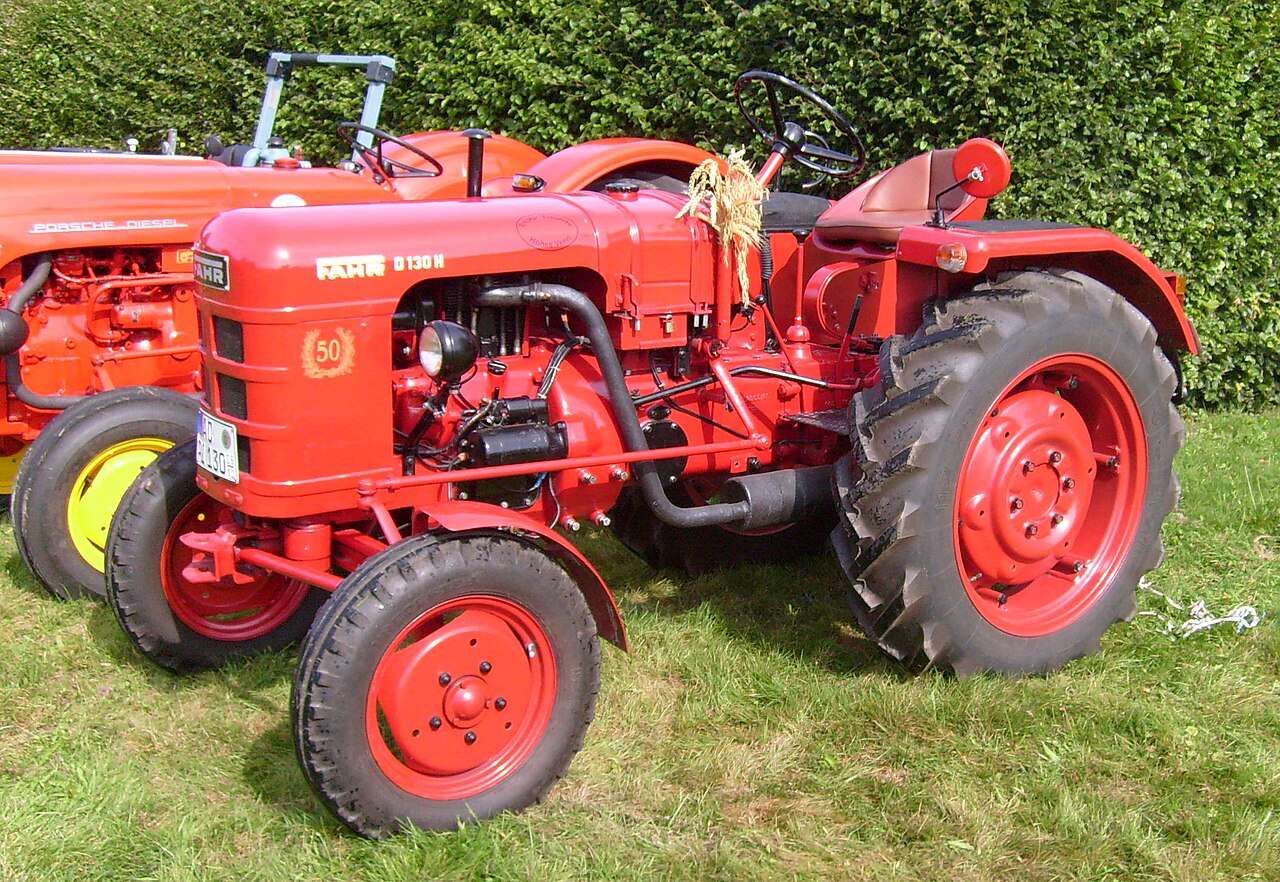

Fahr D130H
Fahr D130H · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
1256 kg
Hover a source tag to verify
Overview
ManufacturerFahrReference
Total built1757Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
D130standardReference
D130Hhigh-wheelReference
Engine
Guldner 1.3L 2-cyl dieselReference
Engine12.7 kWReference
Guldner 2LDReference
dieselReference
2-cylinderReference
air-cooledReference
Displacement1.3 LReference
Bore/Stroke85 x 115 mmReference
Power12.7 kWReference
Transmission
6-speed gearReference
TransmissionZF 5LReference
TypegearReference
Gears6 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase166 cmReference
Weight1256 kgReference
Length267 cmReference
Width163 cmReference
Height178 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
