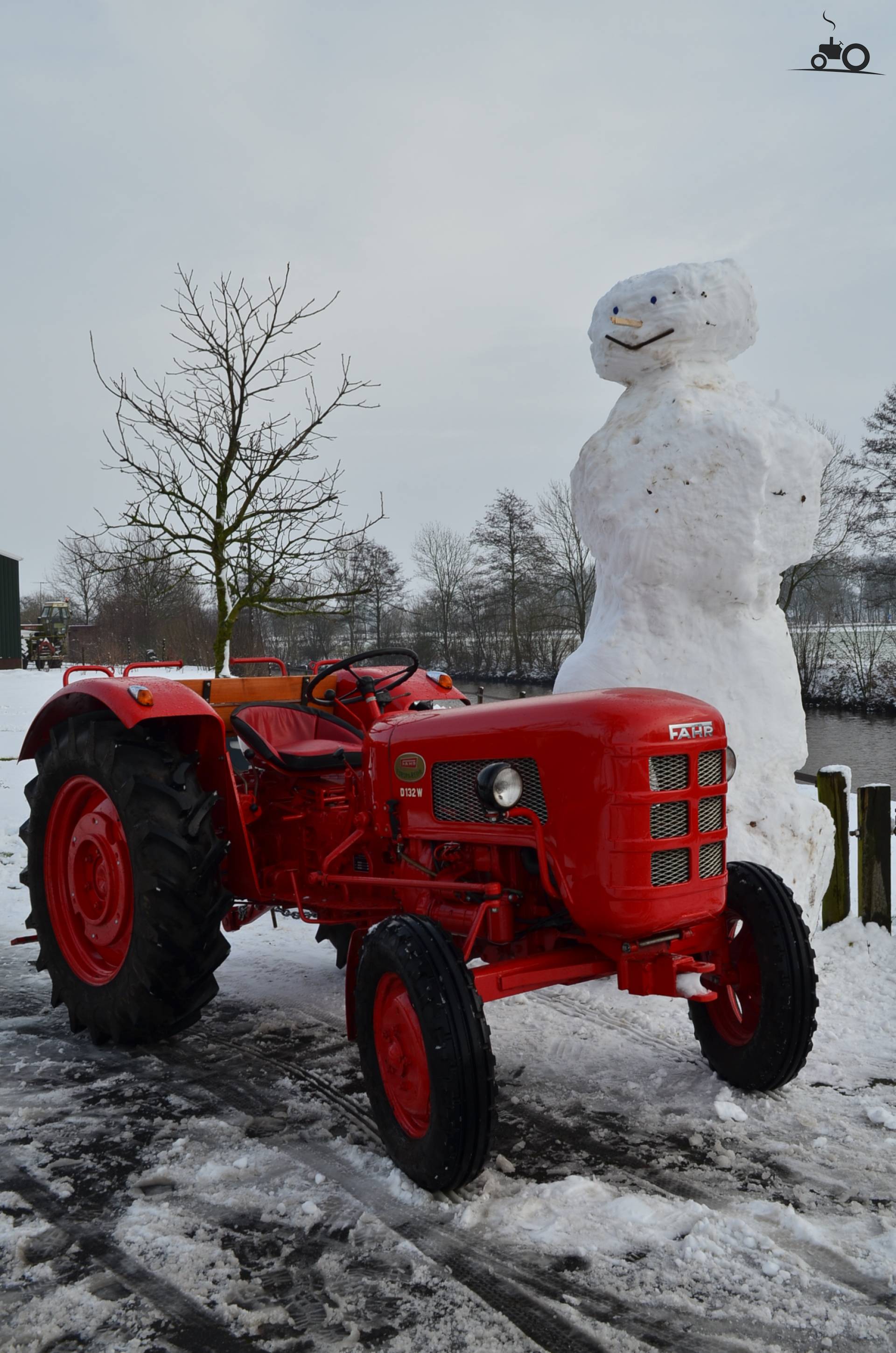

The Fahr D132W is a compact tractor with a rated output of 20 hp. It was produced between 1960 and 1961. The tractor is equipped with a 2-cylinder diesel liquid-cooled engine, which powers a two-wheel drive system via an 8-speed gearbox. Its listed weight is 1360 kg, suitable for tasks involving up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
1360 kg
Catalogue coverage
Variants represented
2
Richest spec table
24 rows
Recorded power
20 hp
Recorded weight
1360 kg
Transmissions
8-speed gear
Production years
1960-1961
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFahrReference
Total built640Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Guldner 1.3L 2-cyl dieselReference
Engine14.9 kWReference
Guldner 2DNSReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke85 x 115 mmReference
Power14.9 kWReference
Transmission
8-speed gearReference
TransmissionZF A205Reference
TypegearReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Rear PTO Type540/1000Reference
Dimensions
Wheelbase184 cmReference
Weight1360 kgReference
Length308 cmReference
Width152 cmReference
Height138 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
