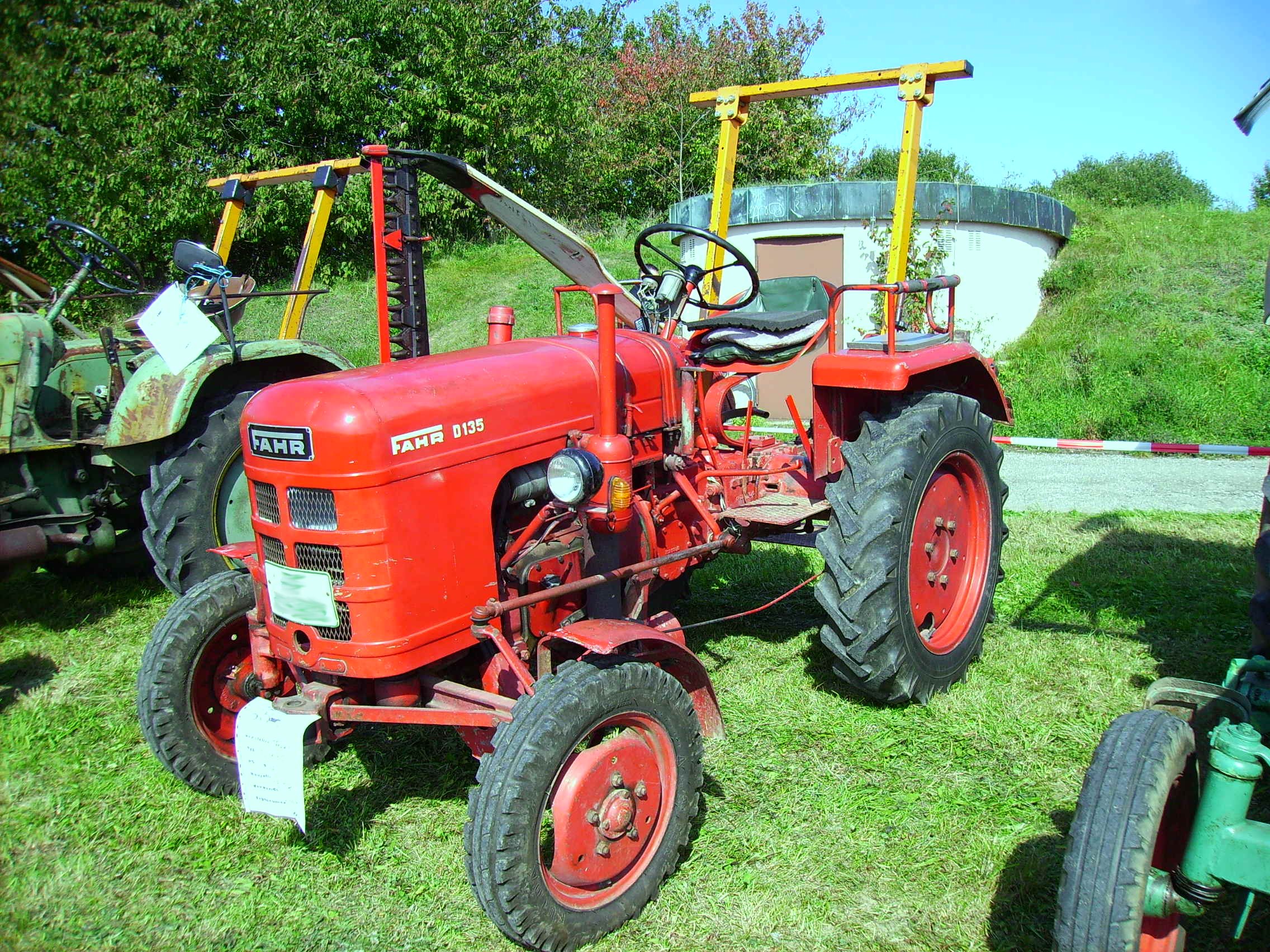

The Fahr D135 is a tractor model with a rated power output of 18 hp, positioning it at the lighter end of its class. It was manufactured between 1958 and 1959. The D135 is equipped with a 2-cylinder diesel liquid-cooled engine and features two-wheel drive with a 10-speed gearbox. It is suitable for operations covering areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Catalogue coverage
Variants represented
2
Richest spec table
25 rows
Recorded power
18 hp
Transmissions
10-speed gear
Production years
1958-1959
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFahrReference
Total built443Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
D135standardReference
D135Hhigh-wheelReference
Engine
Guldner 1.3L 2-cyl dieselReference
Engine13.4 kWReference
Guldner 2DNSFReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke85 x 115 mmReference
Power13.4 kWReference
Transmission
10-speed gearReference
TransmissionFahr F5AReference
TypegearReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase168 cmReference
Length265 cmReference
Width146 cmReference
Height130 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
