Tractor · 1950Unverified

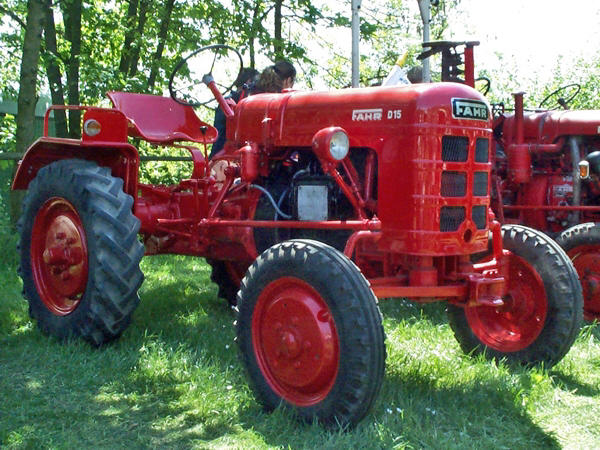

Fahr D15
Fahr D15 · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
1161 kg
Hover a source tag to verify
Overview
ManufacturerFahrReference
Total built2126Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Guldner 1.3L 2-cyl dieselReference
Engine11.2 kWReference
Guldner 2D15Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke85 x 115 mmReference
Power11.2 kWReference
Rated RPM1800Reference
Transmission
5-speed gearReference
TransmissionZF A8Reference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase164 cmReference
Weight1161 kgReference
Length260 cmReference
Width157 cmReference
Height122 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
