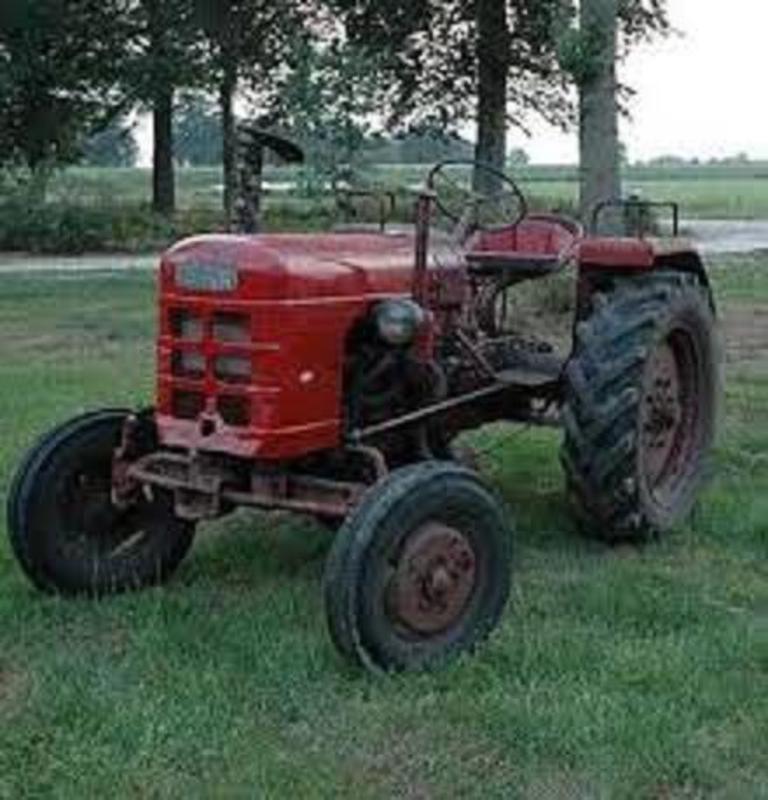

The Fahr D160H is a compact tractor with a power output of 22 hp. It was manufactured between 1954 and 1956. The D160H features a 2-cylinder diesel liquid-cooled engine driving through two-wheel drive with a 6-speed gearbox. Its listed weight is 1474 kg, making it suitable for tasks involving up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1474 kg
Catalogue coverage
Variants represented
2
Richest spec table
25 rows
Recorded power
22 hp
Recorded weight
1474 kg
Transmissions
6-speed gear
Production years
1954-1956
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFahrReference
Total built1400Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
D160standardReference
D160Hhigh-wheelReference
Engine
Guldner 1.6L 2-cyl dieselReference
Engine16.4 kWReference
Guldner 2DAReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke95 x 115 mmReference
Power16.4 kWReference
Transmission
6-speed gearReference
TransmissionFahr F9AReference
TypegearReference
Gears6 forward and 1 reverseReference
Dimensions
Wheelbase182 cmReference
Weight1474 kgReference
Length280 cmReference
Width156 cmReference
Height180 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
