Tractor · 1951Unverified

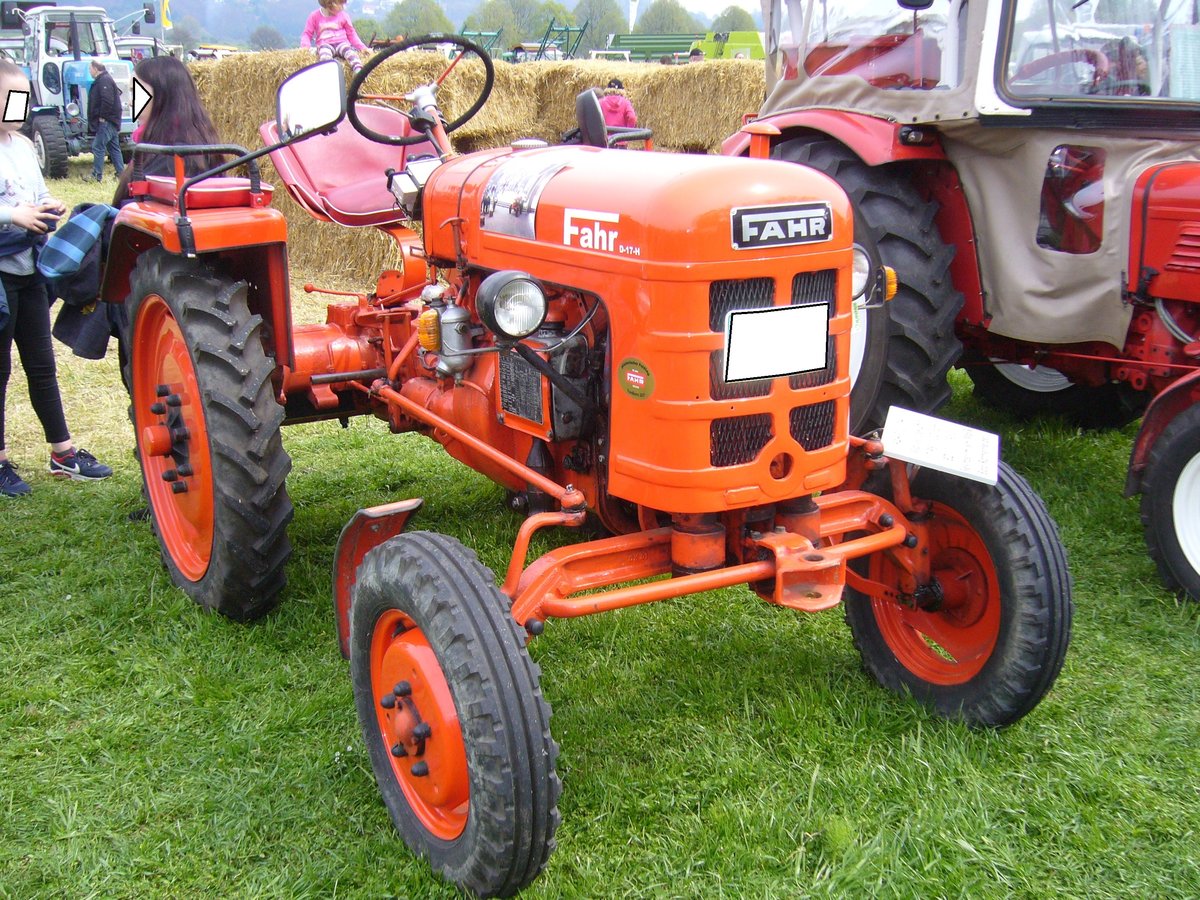

Fahr D17H

Name: Fahr D17H
Brand: Fahr

Fahr D17H · 17 hp. Reference specifications; pending source verification.

The Fahr D17H is a compact tractor rated at 17 horsepower, one of the smaller options in its class. Manufactured from 1951 to 1953, this model features a 2-cylinder diesel liquid-cooled engine driving through two-wheel drive via a 5-speed gearbox. The listed weight of the Fahr D17H is 1360 kg, and it is typically suited to tasks involving around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

17 hp

Weight

1360 kg

Catalogue coverage

Variants represented

Richest spec table

26 rows

Recorded power

17 hp

Recorded weight

1360 kg

Transmissions

5-speed gear

Production years

1951-1953

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFahrReference

Total built1455Reference

Two-wheel driveReference

Manual steeringReference

Open operator station.Reference

Variants

D17regular wheelReference

D17Hhigh-wheelReference

Engine

Guldner 1.3L 2-cyl dieselReference

Engine12.7 kWReference

Guldner 2D15Reference

dieselReference

2-cylinderReference

liquid-cooledReference

Displacement1.3 LReference

Bore/Stroke85 x 115 mmReference

Power12.7 kWReference

Transmission

5-speed gearReference

TransmissionZF A8DReference

TypegearReference

Gears5 forward and 1 reverseReference

PTO & Hydraulics

Rear PTO Type540Reference

Dimensions

Wheelbase163 cmReference

Weight1360 kgReference

Length261 cmReference

Width156 cmReference

Height184 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
