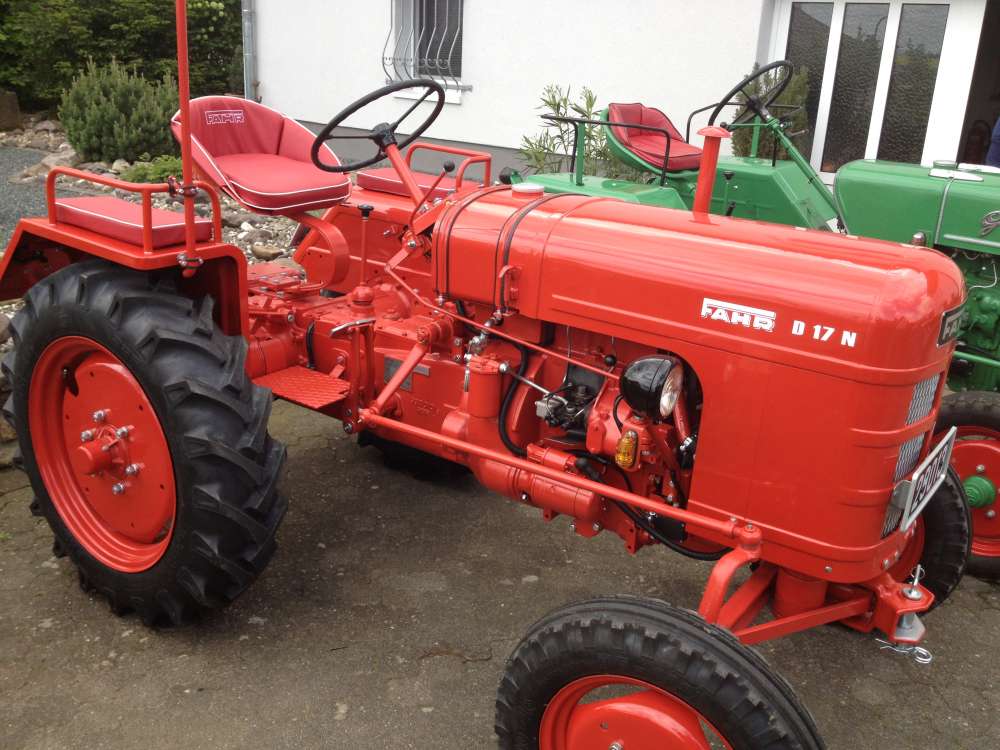

The Fahr D17N tractor is a compact model rated at 17 hp, positioned within its class due to its size. Manufactured between 1953 and 1955, it features a 2-cylinder diesel liquid-cooled engine, paired with a 5-speed gearbox and two-wheel drive. The tractor has a listed weight of 1231 kg and is suited to tasks covering approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
1231 kg
Catalogue coverage
Variants represented
2
Richest spec table
28 rows
Recorded power
17 hp
Recorded weight
1231 kg
Transmissions
5-speed gear
Production years
1953-1955
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFahrReference
Total built2226Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
D17NZF transmissionReference
D17NAFahr transmissionReference
D17NHhigh-wheelReference
D17NHAhigh-wheel Fahr transmissionReference
Engine
Guldner 1.3L 2-cyl dieselReference
Engine12.7 kWReference
Guldner 2DNReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke85 x 115 mmReference
Power12.7 kWReference
Transmission
5-speed gearReference
TransmissionZF A8BReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase164 cmReference
Weight1231 kgReference
Length258 cmReference
Width156 cmReference
Height173 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
