Tractor · 1953Unverified

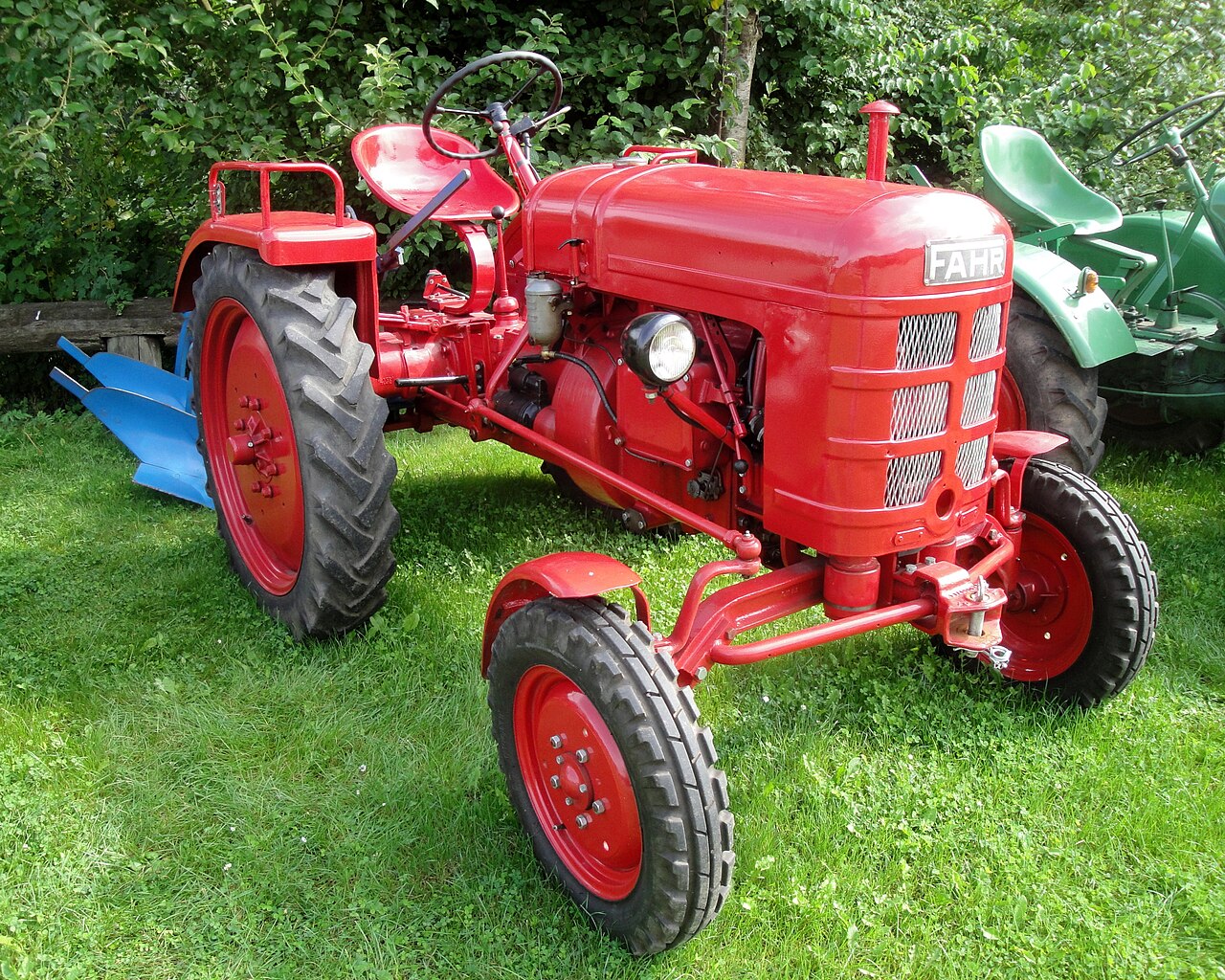

Fahr D17NA

Name: Fahr D17NA
Brand: Fahr

Fahr D17NA · 17 hp. Reference specifications; pending source verification.

The Fahr D17NA is a tractor with a rated output of 17 hp — making it one of the more compact options in its class. The D17NA was produced from 1953 to 1955. It is powered by a 2-cylinder diesel liquid-cooled engine, driving through two-wheel drive with a 6-speed gearbox. It is aimed at jobs of around up to 200 ac. The available specification table below shows both UK and US units.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

17 hp

Catalogue coverage

Variants represented

Richest spec table

23 rows

Recorded power

17 hp

Transmissions

6-speed gear

Production years

1953-1955

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFahrReference

Total built92Reference

Two-wheel driveReference

Manual steeringReference

Open operator station.Reference

Variants

D17NregularReference

D17NA6-speedReference

D17NHhigh-wheelReference

D17NHAhigh-wheel 6-speedReference

Engine

Guldner 1.3L 2-cyl dieselReference

Engine12.7 kWReference

Guldner 2DNReference

dieselReference

2-cylinderReference

liquid-cooledReference

Displacement1.3 LReference

Bore/Stroke85 x 115 mmReference

Power12.7 kWReference

Transmission

6-speed gearReference

TransmissionFahr F9AReference

TypegearReference

Gears6 forward and 1 reverseReference

PTO & Hydraulics

Rear PTO Type540Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
