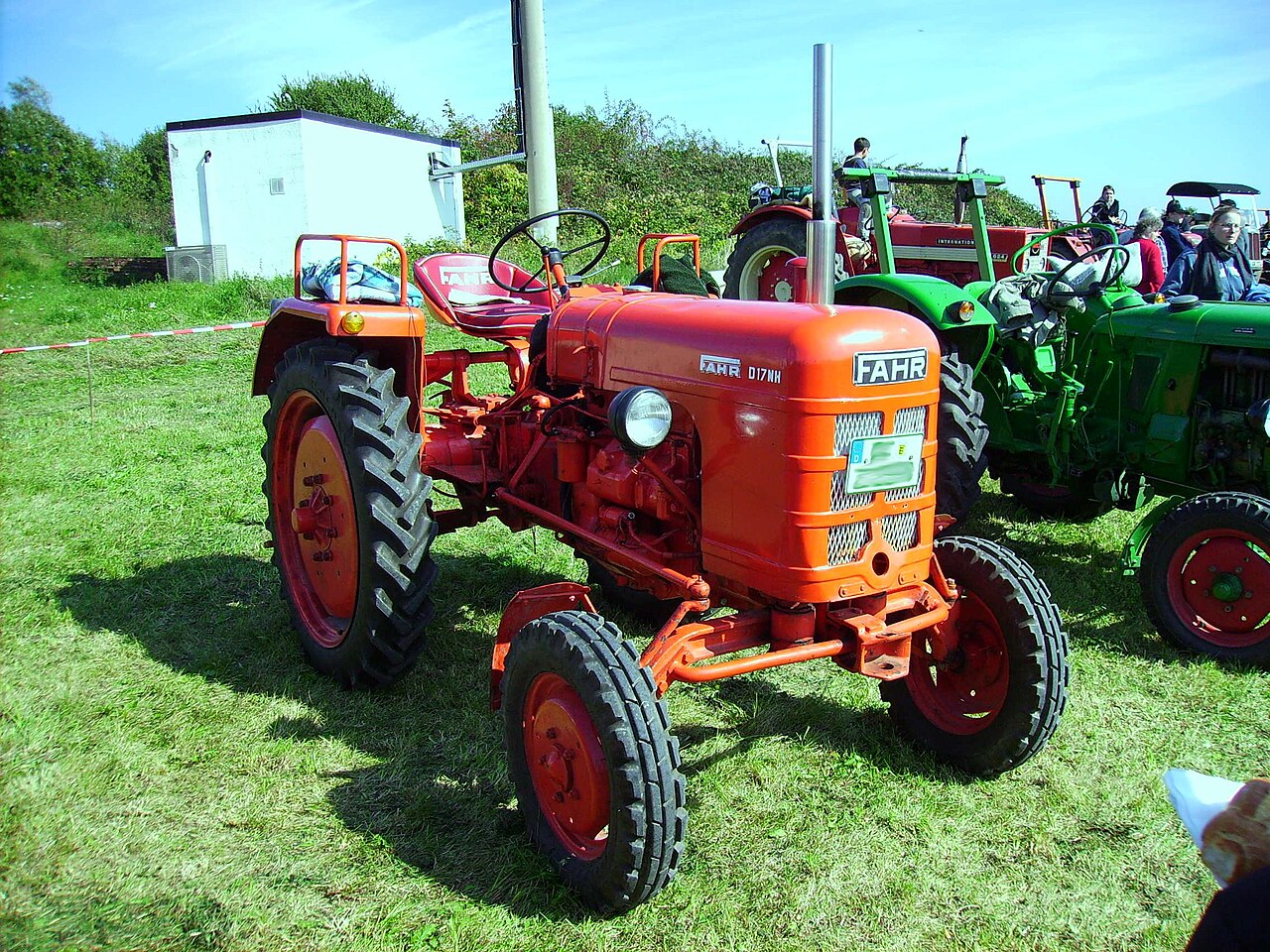

The Fahr D17NH is a compact tractor with a rated output of 17 hp, making it one of the more compact options in its class. It was manufactured from 1953 to 1955. The tractor is equipped with a 2-cylinder diesel liquid-cooled engine, driving through two-wheel drive via a 6-speed gearbox. Its listed weight is 1333 kg, and it is suited to working areas of approximately 200 ac.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
1333 kg
Catalogue coverage
Variants represented
2
Richest spec table
28 rows
Recorded power
17 hp
Recorded weight
1333 kg
Transmissions
5-speed gear
Production years
1953-1955
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFahrReference
Total built918Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
D17NregularReference
D17NA6-speedReference
D17NHhigh-wheelReference
D17NHAhigh-wheel 6-speedReference
Engine
Guldner 1.3L 2-cyl dieselReference
Engine12.7 kWReference
Guldner 2DNReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke85 x 115 mmReference
Power12.7 kWReference
Transmission
5-speed gearReference
TransmissionZF A8DReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase163 cmReference
Weight1333 kgReference
Length264 cmReference
Width156 cmReference
Height184 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
