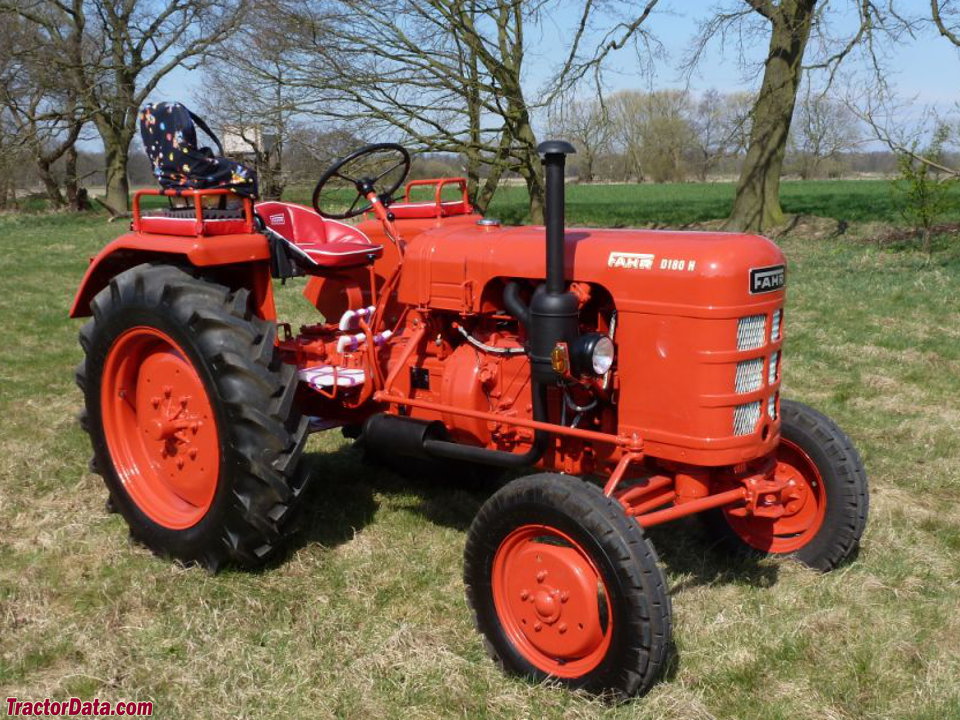

The Fahr D180H is a tractor with a rated output of 24 hp — making it one of the more compact options in its class. This model was produced from 1954 to 1959. It is powered by a 2-cylinder diesel air-cooled engine, driving through two-wheel drive with a 5-speed gearbox. Listed weight is 1428 kg, and it is aimed at jobs of around up to 200 ac. Recorded specifications in UK and US units are listed below.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1428 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
24 hp
Recorded weight
1428 kg
Transmissions
5-speed gear
Production years
1954-1959
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFahrReference
Total built8020Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
MWM 1.8L 2-cyl dieselReference
Engine17.9 kWReference
MWM AKD112ZReference
dieselReference
2-cylinderReference
air-cooledReference
Displacement1.8 LReference
Bore/Stroke98 x 120 mmReference
Power17.9 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
5-speed gearReference
TransmissionFahr F9C1Reference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase181 cmReference
Weight1428 kgReference
Front tire5.50-16Reference
Rear tire10-28Reference
Ag front5.50-16Reference
Ag rear10-28Reference
Ag rear8-32Reference
Length280 cmReference
Width156 cmReference
Height181 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
