Tractor · 1955Unverified
Fahr D181

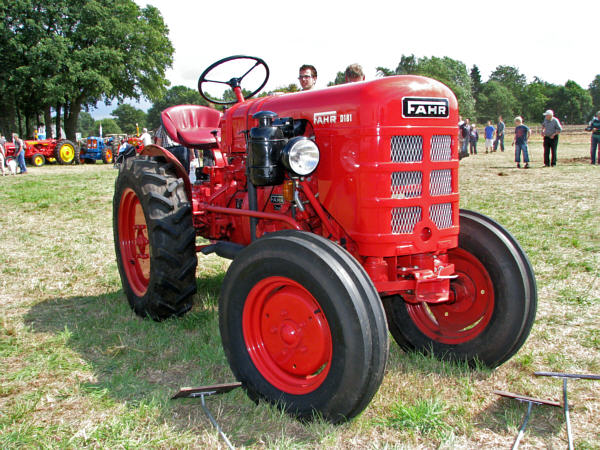

Fahr D181 — Orchard/Vineyard tractor · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1261 kg
Hover a source tag to verify
Overview
ManufacturerFahrReference
Orchard/Vineyard tractorReference
Total built158Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
D181standardReference
D181Hhigh-wheelReference
Engine
MWM 1.8L 2-cyl dieselReference
Engine17.9 kWReference
MWM AKD112ZReference
dieselReference
2-cylinderReference
air-cooledReference
Displacement1.8 LReference
Bore/Stroke98 x 120 mmReference
Power17.9 kWReference
Transmission
5-speed gearReference
TransmissionZF 6Reference
TypegearReference
Gears5 forward and 1 reverseReference
Dimensions
Wheelbase173 cmReference
Weight1261 kgReference
Front tire5.00-16Reference
Rear tire9-24Reference
Ag front5.00-16Reference
Ag rear9-24Reference
Length269 cmReference
Width107 cmReference
Height150 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
