Tractor · 1949Unverified

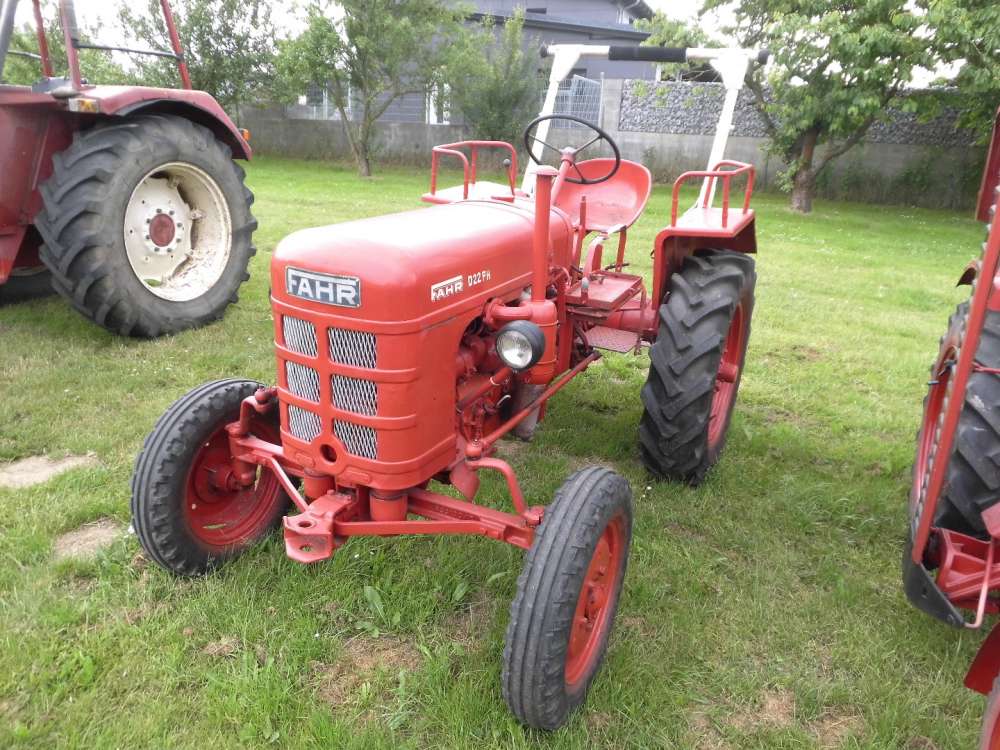

Fahr D22

Name: Fahr D22
Brand: Fahr

Fahr D22 · 25 hp. Reference specifications; pending source verification.

The Fahr D22 is a compact tractor with a rated output of 25 hp, produced from 1949 to 1951. It features a 2-cylinder diesel liquid-cooled engine and is equipped with a 2-wheel drive transmission and a 5-speed gearbox. The D22 has a listed weight of 1678 kg, making it suitable for tasks covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Weight

1678 kg

Catalogue coverage

Variants represented

Richest spec table

26 rows

Recorded power

25 hp

Recorded weight

1678 kg

Transmissions

5-speed gear

Production years

1949-1951

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFahrReference

Total built1032Reference

Two-wheel driveReference

Manual steeringReference

Open operator station.Reference

Variants

D22PHhigh-wheelReference

Engine

Deutz 2.2L 2-cyl dieselReference

Engine18.6 kWReference

Deutz F2M414Reference

dieselReference

2-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke100 x 140 mmReference

Power18.6 kWReference

Rated RPM1500Reference

Transmission

5-speed gearReference

TransmissionZF A15Reference

TypegearReference

Gears5 forward and 1 reverseReference

PTO & Hydraulics

Rear PTO Type540Reference

Dimensions

Wheelbase176 cmReference

Weight1678 kgReference

Length284 cmReference

Width153 cmReference

Height139 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
