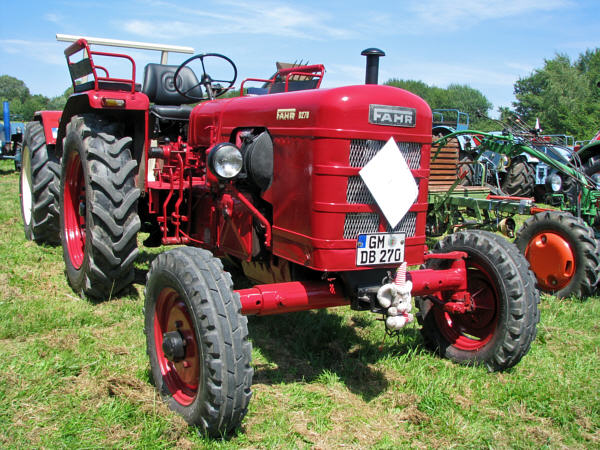

The Fahr D270 is a tractor model with a rated output of 32 hp, representing one of the more compact options in its class. It was manufactured from 1954 to 1958. The tractor features a 2-cylinder diesel air-cooled engine, coupled with a 5-speed gearbox and two-wheel drive. Its listed weight is 1941 kg, making it suitable for tasks covering approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
1941 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
32 hp
Recorded weight
1941 kg
Transmissions
5-speed gear
Production years
1954-1958
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFahrReference
Total built1158Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
D270standardReference
D270Hhigh-wheelReference
Engine
Deutz 2.7L 2-cyl dieselReference
Engine23.9 kWReference
Deutz F2L514Reference
dieselReference
2-cylinderReference
air-cooledReference
Displacement2.7 LReference
Bore/Stroke110 x 140 mmReference
Power23.9 kWReference
Transmission
5-speed gearReference
TransmissionFahr F16Reference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase199 cmReference
Weight1941 kgReference
Front tire6.00-16Reference
Rear tire11-28Reference
Ag front6.00-16Reference
Ag rear11-28Reference
Length306 cmReference
Width158 cmReference
Height208 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
