Tractor · 1954Unverified

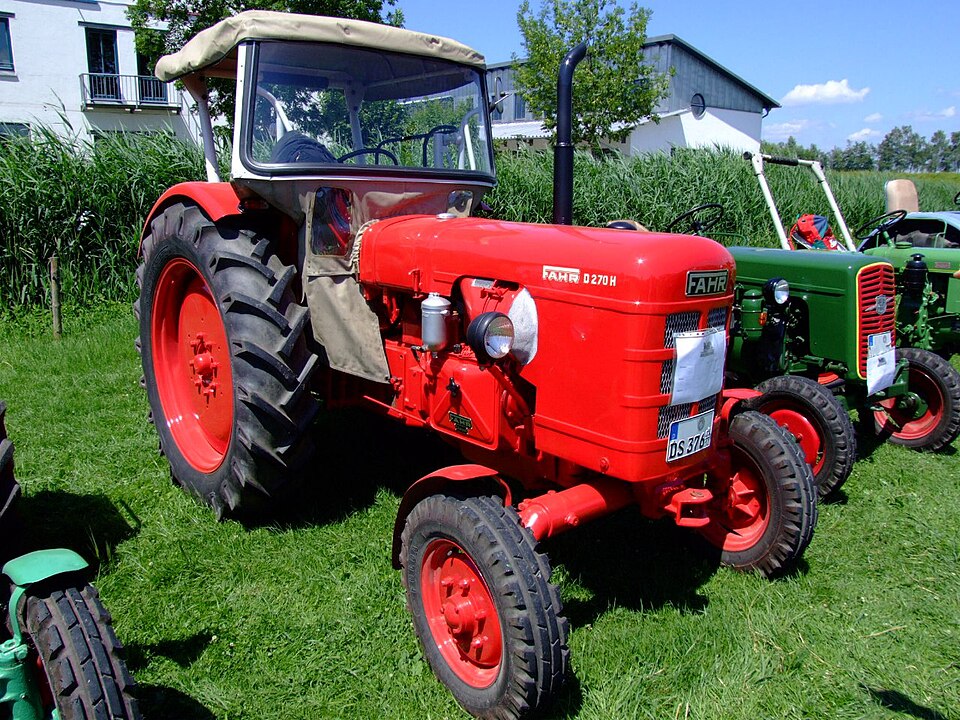

Fahr D270H
Fahr D270H · 32 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
1959 kg
Hover a source tag to verify
Overview
ManufacturerFahrReference
Total built1703Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
D270standardReference
D270Hhigh-wheelReference
Engine
Deutz 2.7L 2-cyl dieselReference
Engine23.9 kWReference
Deutz F2L514Reference
dieselReference
2-cylinderReference
air-cooledReference
Displacement2.7 LReference
Bore/Stroke110 x 140 mmReference
Power23.9 kWReference
Transmission
5-speed gearReference
TransmissionFahr F16HReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase199 cmReference
Weight1959 kgReference
Length314 cmReference
Width152 cmReference
Height220 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
