Tractor · 1949Unverified

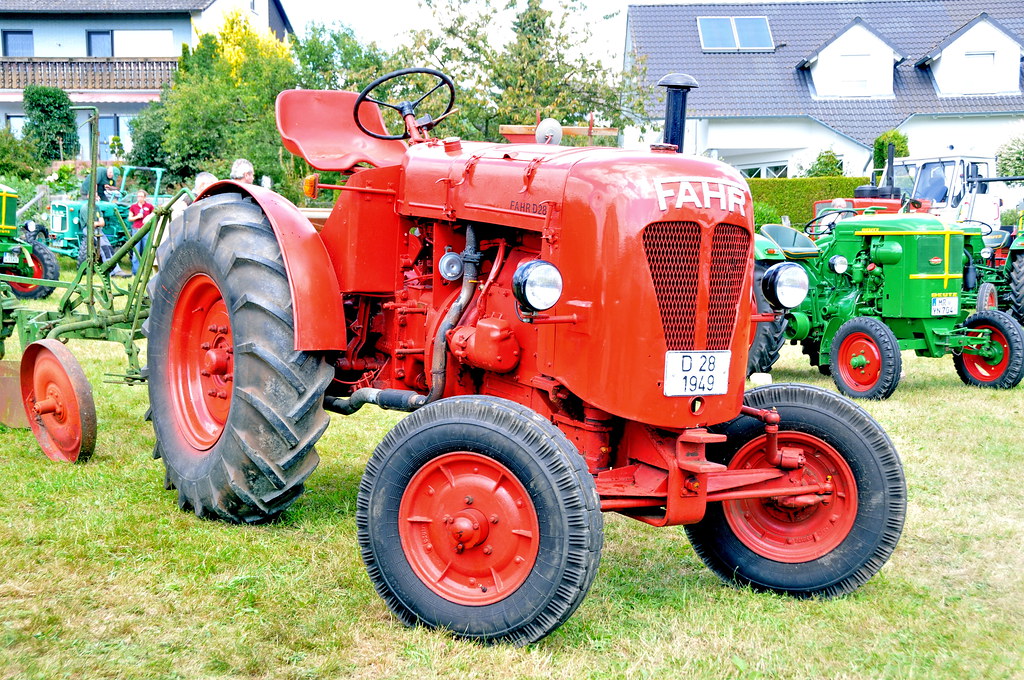

Fahr D28

Name: Fahr D28
Brand: Fahr

Fahr D28 · 28 hp. Reference specifications; pending source verification.

The Fahr D28 is a tractor model rated at approximately 28 hp, which positions it at the lighter end of its class. Produced from 1949 to 1950, this tractor features a 2-cylinder diesel liquid-cooled engine and a two-wheel drive configuration paired with a 5-speed gearbox. The operating weight of the Fahr D28 is listed at 1979 kg, and it is suited for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

28 hp

Weight

1979 kg

Catalogue coverage

Variants represented

Richest spec table

24 rows

Recorded power

28 hp

Recorded weight

1979 kg

Transmissions

5-speed gear

Production years

1949-1950

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFahrReference

Total built580Reference

Two-wheel driveReference

Manual steeringReference

Open operator station.Reference

Engine

Guldner 2.6L 2-cyl dieselReference

Engine20.9 kWReference

Guldner 2FReference

dieselReference

2-cylinderReference

liquid-cooledReference

Displacement2.6 LReference

Bore/Stroke105 x 150 mmReference

Power20.9 kWReference

Transmission

5-speed gearReference

TransmissionFahr F15Reference

TypegearReference

Gears5 forward and 1 reverseReference

PTO & Hydraulics

Rear PTO Type540Reference

Dimensions

Wheelbase187 cmReference

Weight1979 kgReference

Length292 cmReference

Width156 cmReference

Height146 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
