Tractor · 1951Unverified

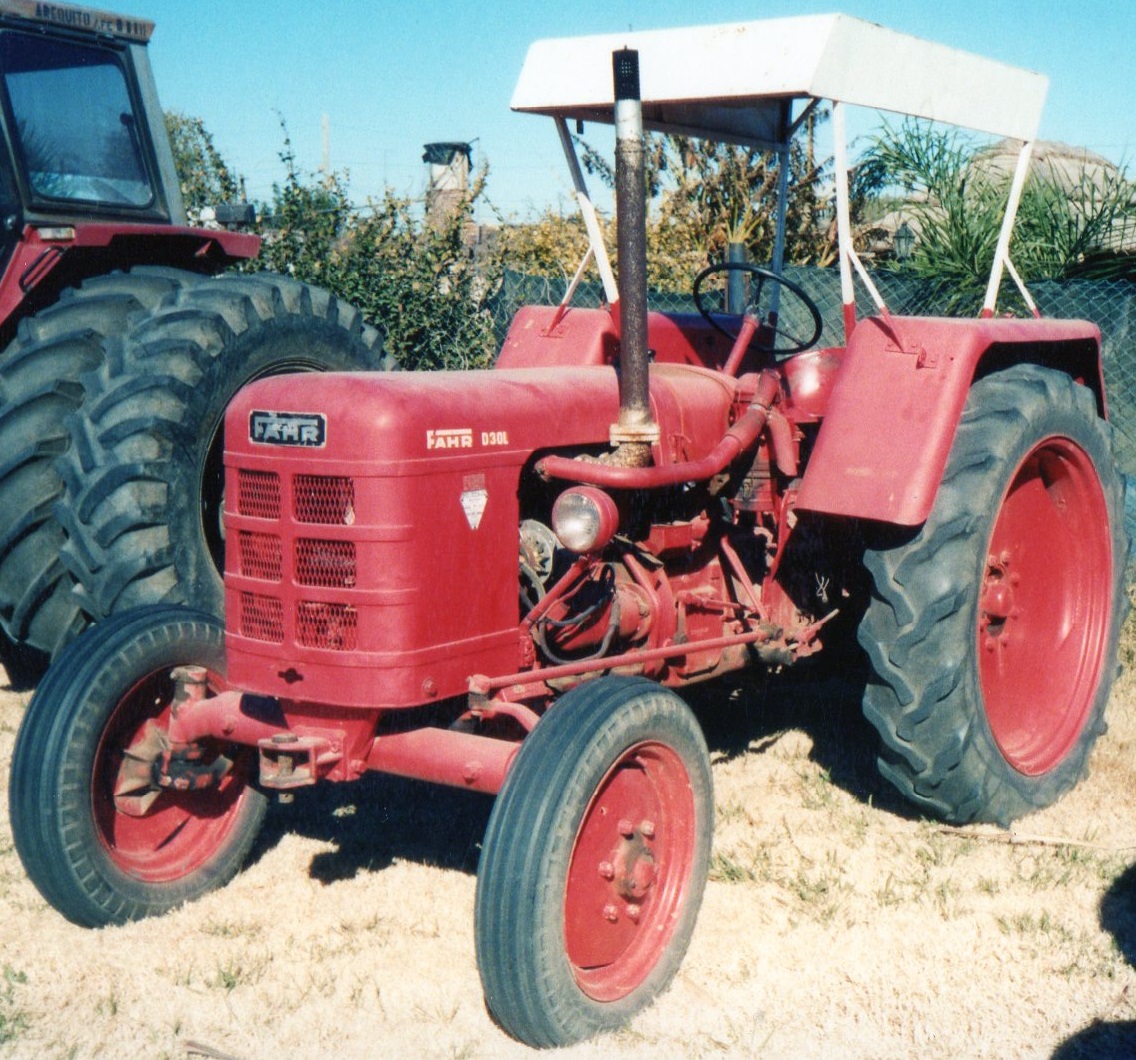

Fahr D30L

Name: Fahr D30L
Brand: Fahr

Fahr D30L · 30 hp. Reference specifications; pending source verification.

The Fahr D30L is a tractor model with a rated power output of 30 hp, positioning it at the lower end of its class in terms of power. The D30L was manufactured from 1951 to 1953. It features a 2-cylinder diesel air-cooled engine and two-wheel drive with a 5-speed gearbox. The tractor is capable of operating on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

30 hp

Catalogue coverage

Variants represented

Richest spec table

23 rows

Recorded power

30 hp

Transmissions

5-speed gear

Production years

1951-1953

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFahrReference

Total built1042Reference

Two-wheel driveReference

Manual steeringReference

Open operator station.Reference

Engine

Deutz 2.7L 2-cyl dieselReference

Engine22.4 kWReference

Deutz F2L514Reference

dieselReference

2-cylinderReference

air-cooledReference

Displacement2.7 LReference

Bore/Stroke110 x 140 mmReference

Power22.4 kWReference

Transmission

5-speed gearReference

TransmissionFahr F12NReference

TypegearReference

Gears5 forward and 1 reverseReference

PTO & Hydraulics

Rear PTO Type540Reference

Dimensions

Wheelbase184 cmReference

Length298 cmReference

Width158 cmReference

Height178 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
