Tractor · 1952Unverified

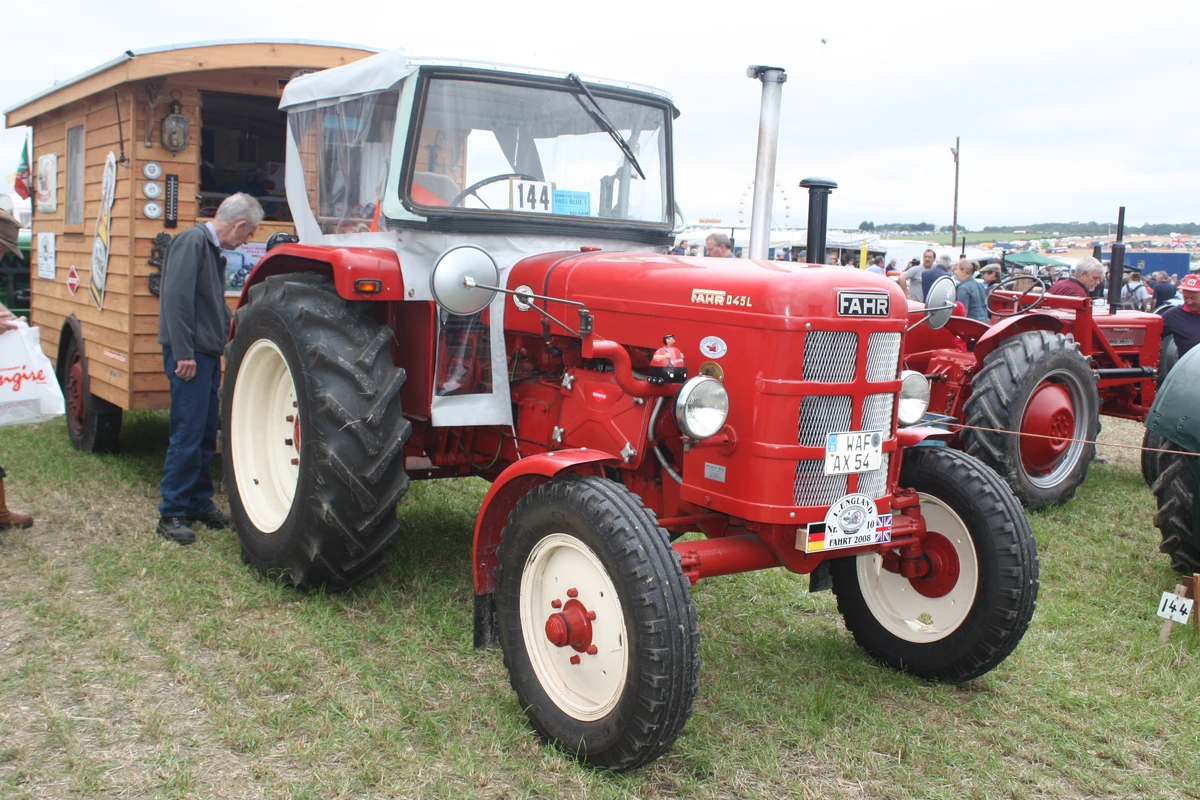

Fahr D45L

Name: Fahr D45L
Brand: Fahr

Fahr D45L · 45 hp. Reference specifications; pending source verification.

The Fahr D45L is a compact tractor model with a rating of 45 hp, making it a smaller option in its class. Manufactured between 1952 and 1954, this model utilises a 3-cylinder diesel air-cooled engine, which powers two-wheel drive via a 6-speed gearbox. The tractor's listed weight is 2422 kg, and it is suitable for tasks covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

45 hp

Weight

2422 kg

Catalogue coverage

Variants represented

Richest spec table

24 rows

Recorded power

45 hp

Recorded weight

2422 kg

Transmissions

6-speed gear

Production years

1952-1954

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFahrReference

Total built184Reference

Two-wheel driveReference

Manual steeringReference

Open operator station.Reference

Engine

Deutz 4.0L 3-cyl dieselReference

Engine33.6 kWReference

Deutz F3L514Reference

dieselReference

3-cylinderReference

air-cooledReference

Displacement4.0 LReference

Bore/Stroke110 x 140 mmReference

Power33.6 kWReference

Transmission

6-speed gearReference

TransmissionZF A17Reference

TypegearReference

Gears6 forward and 1 reverseReference

PTO & Hydraulics

Rear PTO Type540Reference

Dimensions

Wheelbase210 cmReference

Weight2422 kgReference

Length289 cmReference

Width186 cmReference

Height154 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
