Tractor · 1955Unverified

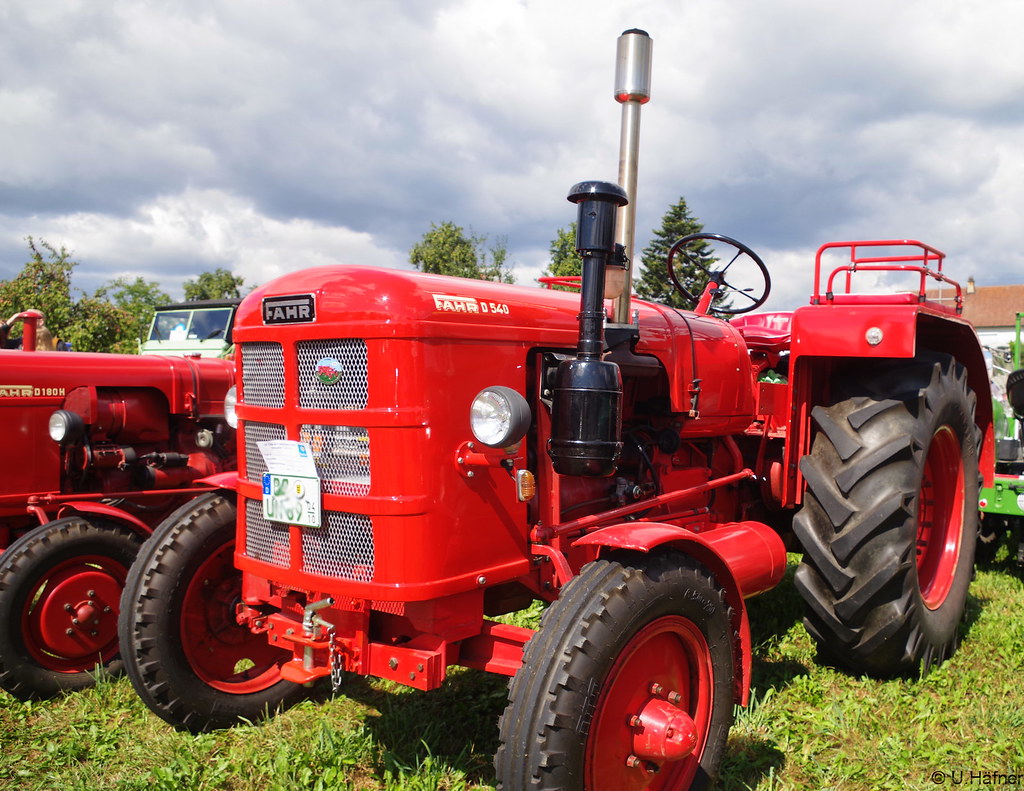

Fahr D540

Name: Fahr D540
Brand: Fahr

Fahr D540 · 60 hp. Reference specifications; pending source verification.

The Fahr D540 is a tractor with a rated power of 60 hp, categorised as a lighter model within its class. Built from 1955 to 1958, it features a 4-cylinder diesel air-cooled engine and two-wheel drive with a 5-speed gearbox. The tractor's operating weight is listed at 3470 kg, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

60 hp

Weight

3470 kg

Catalogue coverage

Variants represented

Richest spec table

23 rows

Recorded power

60 hp

Recorded weight

3470 kg

Transmissions

5-speed gear

Production years

1955-1958

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFahrReference

Total built866Reference

Two-wheel driveReference

Manual steeringReference

Open operator station.Reference

Engine

Deutz 5.3L 4-cyl dieselReference

Engine44.7 kWReference

Deutz F4L514Reference

dieselReference

4-cylinderReference

air-cooledReference

Displacement5.3 LReference

Bore/Stroke110 x 140 mmReference

Power44.7 kWReference

Transmission

5-speed gearReference

TransmissionZF A26Reference

TypegearReference

Gears5 forward and 2 reverseReference

Dimensions

Wheelbase230 cmReference

Weight3470 kgReference

Length388 cmReference

Width198 cmReference

Height232 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
