Tractor · 1952Unverified

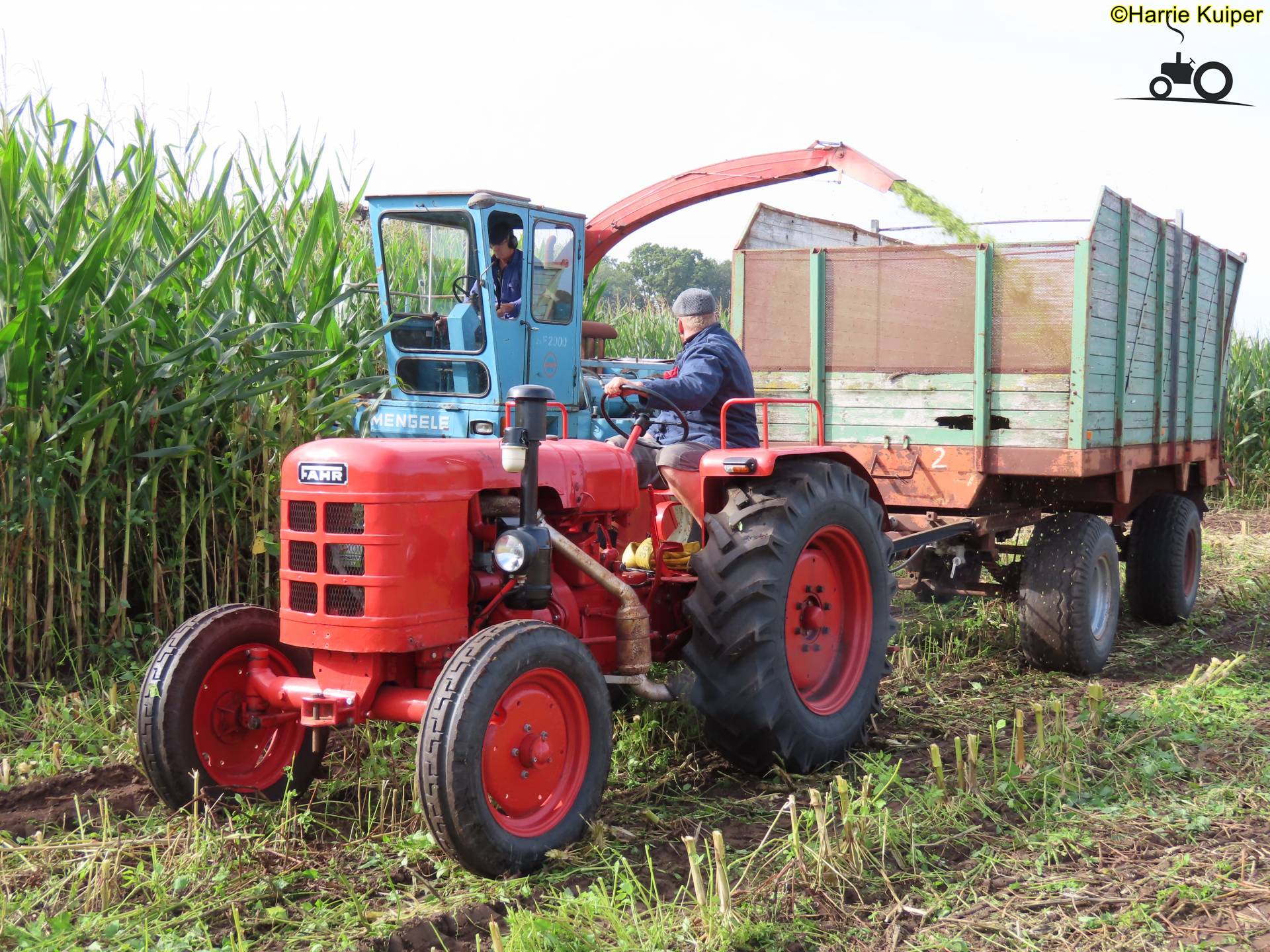

Fahr D60L

Name: Fahr D60L
Brand: Fahr

Fahr D60L · 60 hp. Reference specifications; pending source verification.

The Fahr D60L is a tractor, rated at approximately 60 horsepower, which positions it at the lighter end of its class in terms of power output. It was produced from 1952 to 1955 and features a 4-cylinder diesel air-cooled engine, coupled with two-wheel drive and a 7-speed gearbox. The tractor has an operating weight of 3460 kg and is suited to operations on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

60 hp

Weight

3460 kg

Catalogue coverage

Variants represented

Richest spec table

24 rows

Recorded power

60 hp

Recorded weight

3460 kg

Transmissions

7-speed gear

Production years

1952-1955

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFahrReference

Total built379Reference

Two-wheel driveReference

Manual steeringReference

Open operator station.Reference

Engine

Deutz 5.3L 4-cyl dieselReference

Engine44.7 kWReference

Deutz F4L514Reference

dieselReference

4-cylinderReference

air-cooledReference

Displacement5.3 LReference

Bore/Stroke110 x 140 mmReference

Power44.7 kWReference

Transmission

7-speed gearReference

TransmissionZF A26Reference

TypegearReference

Gears7 forward and 1 reverseReference

PTO & Hydraulics

Rear PTO Type540Reference

Dimensions

Wheelbase230 cmReference

Weight3460 kgReference

Length388 cmReference

Width198 cmReference

Height155 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
