Tractor · 1956Unverified

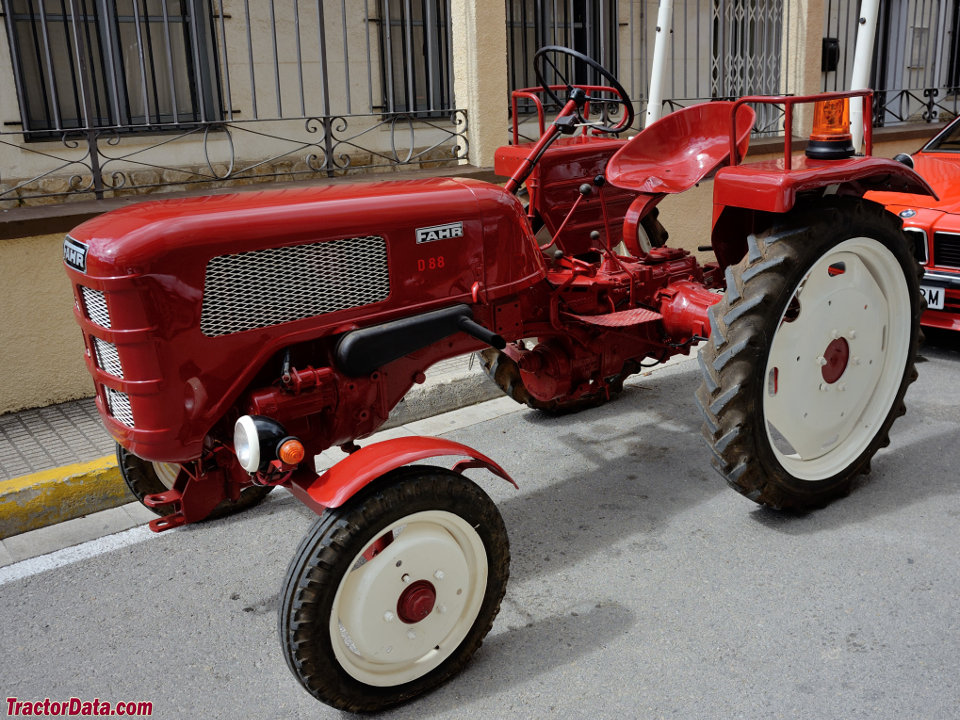

Fahr D88
Fahr D88 — Model year 1956-19581958-19591959-1960 · 13 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
861 kg
Hover a source tag to verify
Overview
ManufacturerFahrReference
Total built2583Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Guldner 0.9L 2-cyl dieselReference
Engine9.7 kWReference
Guldner 2LKNReference
dieselReference
2-cylinderReference
air-cooledReference
Displacement0.9 LReference
Bore/Stroke75 x 100 mmReference
Power9.7 kWReference
Transmission
6-speed gearReference
TransmissionZF A4Reference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase165 cmReference
Weight861 kgReference
Length265 cmReference
Width147 cmReference
Height150 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
