Tractor · 1954Unverified

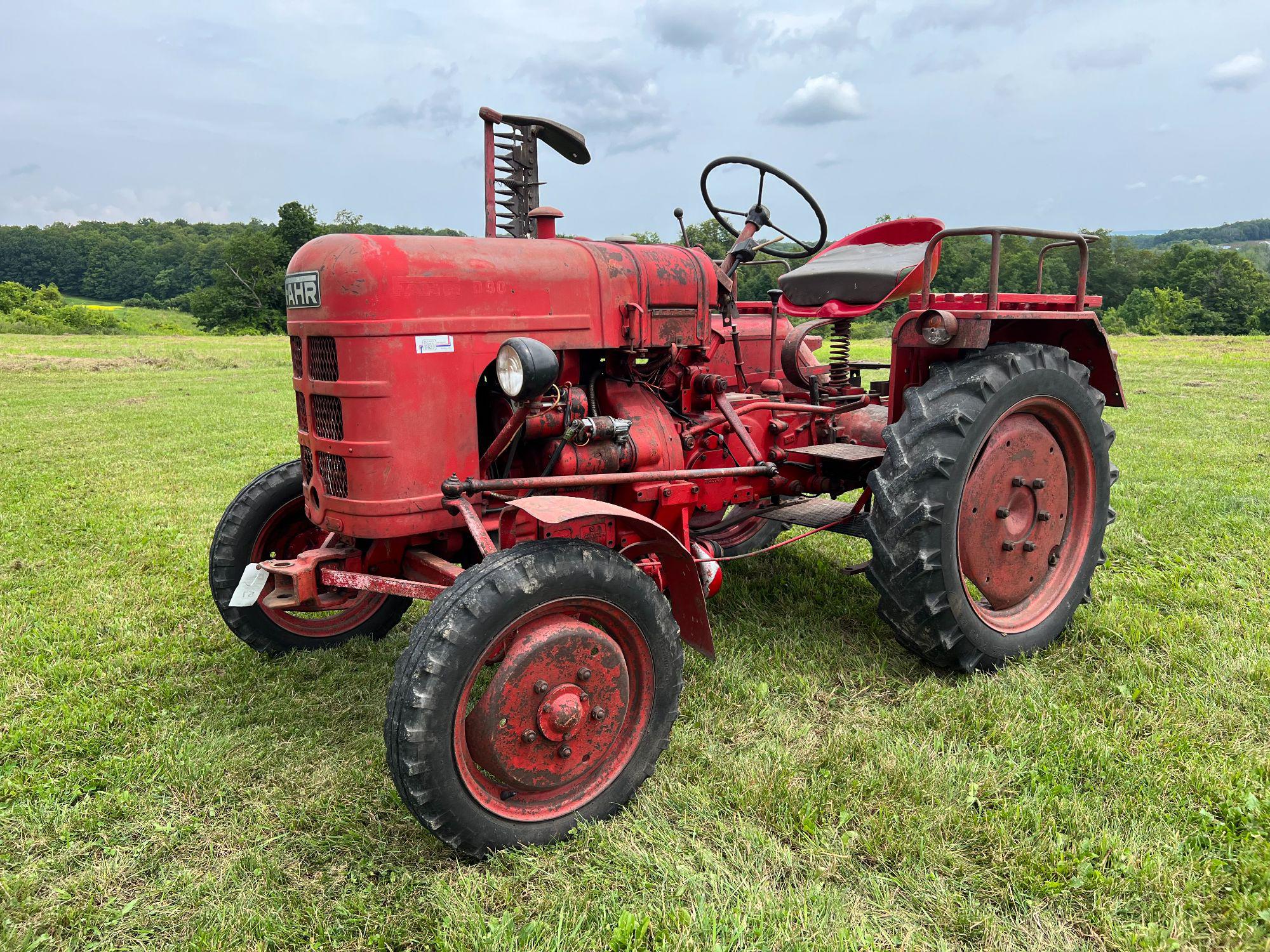

Fahr D90
Fahr D90 · 12 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
12 hp
Weight
1050 kg
Hover a source tag to verify
Overview
ManufacturerFahrReference
Total built4260Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
D90standardReference
D90Hhigh-wheelReference
Engine
MWM 0.9L 1-cyl dieselReference
Engine8.9 kWReference
MWM AKD112EReference
dieselReference
1-cylinderReference
air-cooledReference
Displacement0.9 LReference
Bore/Stroke98 x 120 mmReference
Power8.9 kWReference
Transmission
10-speed gearReference
TransmissionZF A5KReference
TypegearReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase152 cmReference
Weight1050 kgReference
Length248 cmReference
Width153 cmReference
Height168 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
