Tractor · 1954Unverified

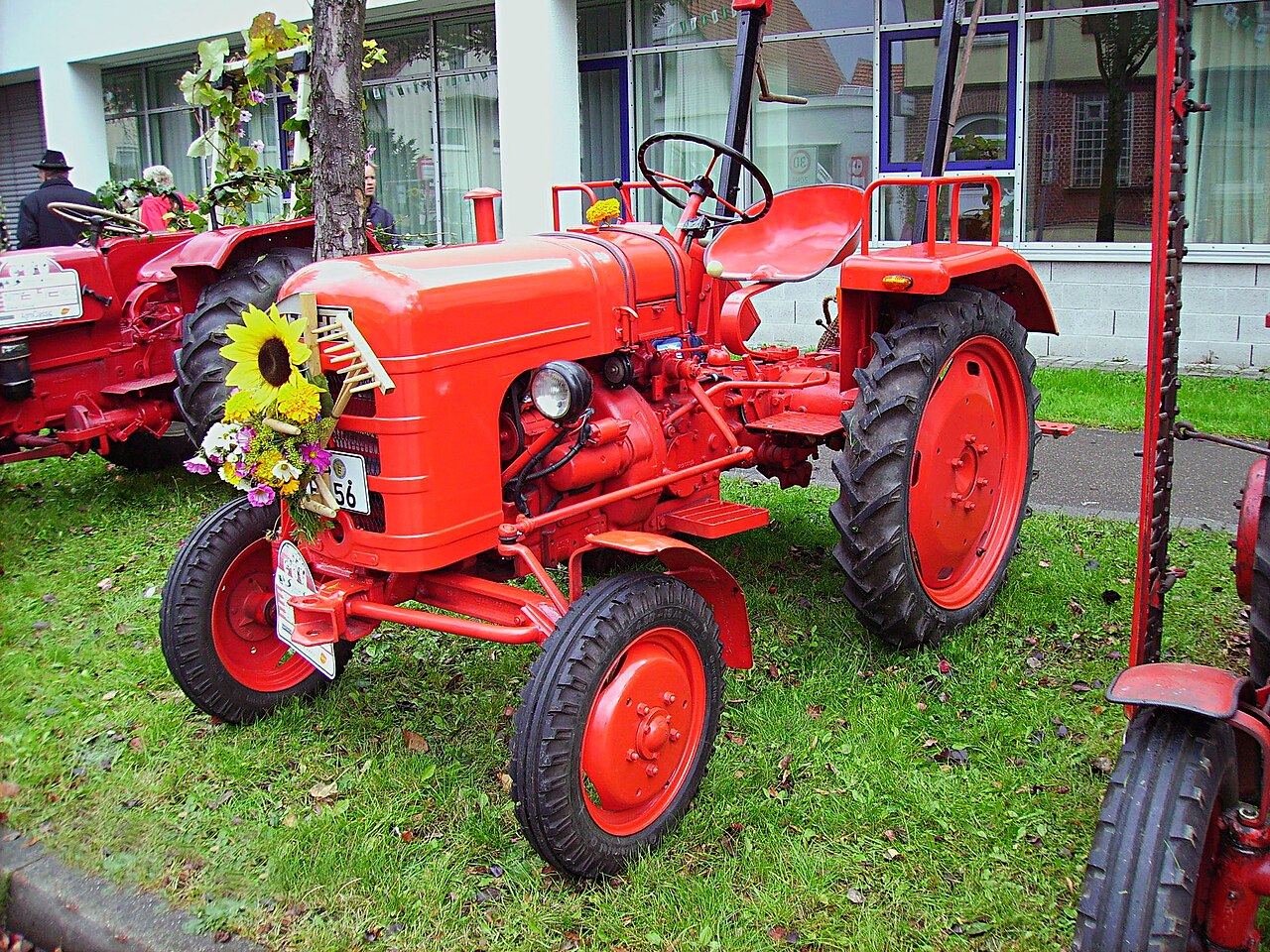

Fahr D90H

Name: Fahr D90H
Brand: Fahr

Fahr D90H · 12 hp. Reference specifications; pending source verification.

The Fahr D90H is a tractor model with a rated power of 12 horsepower, positioning it at the lighter end of its class. Manufactured between 1954 and 1956, it features a 1-cylinder diesel air-cooled engine, paired with two-wheel drive and a 10-speed gearbox. The operating weight of the Fahr D90H is listed as 1129 kg, and it is suited to operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

12 hp

Weight

1129 kg

Catalogue coverage

Variants represented

Richest spec table

22 rows

Recorded power

12 hp

Recorded weight

1129 kg

Transmissions

10-speed gear

Production years

1954-1956

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFahrReference

Total built1237Reference

Two-wheel driveReference

Manual steeringReference

Open operator station.Reference

Variants

D90standardReference

D90Hhigh-wheelReference

Engine

MWM 0.9L 1-cyl dieselReference

Engine8.9 kWReference

MWM AKD112EReference

dieselReference

1-cylinderReference

air-cooledReference

Displacement0.9 LReference

Bore/Stroke98 x 120 mmReference

Power8.9 kWReference

Transmission

10-speed gearReference

TransmissionZF A5LReference

TypegearReference

Gears10 forward and 2 reverseReference

PTO & Hydraulics

Rear PTO Type540Reference

Dimensions

Weight1129 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
