Tractor · 1941Unverified

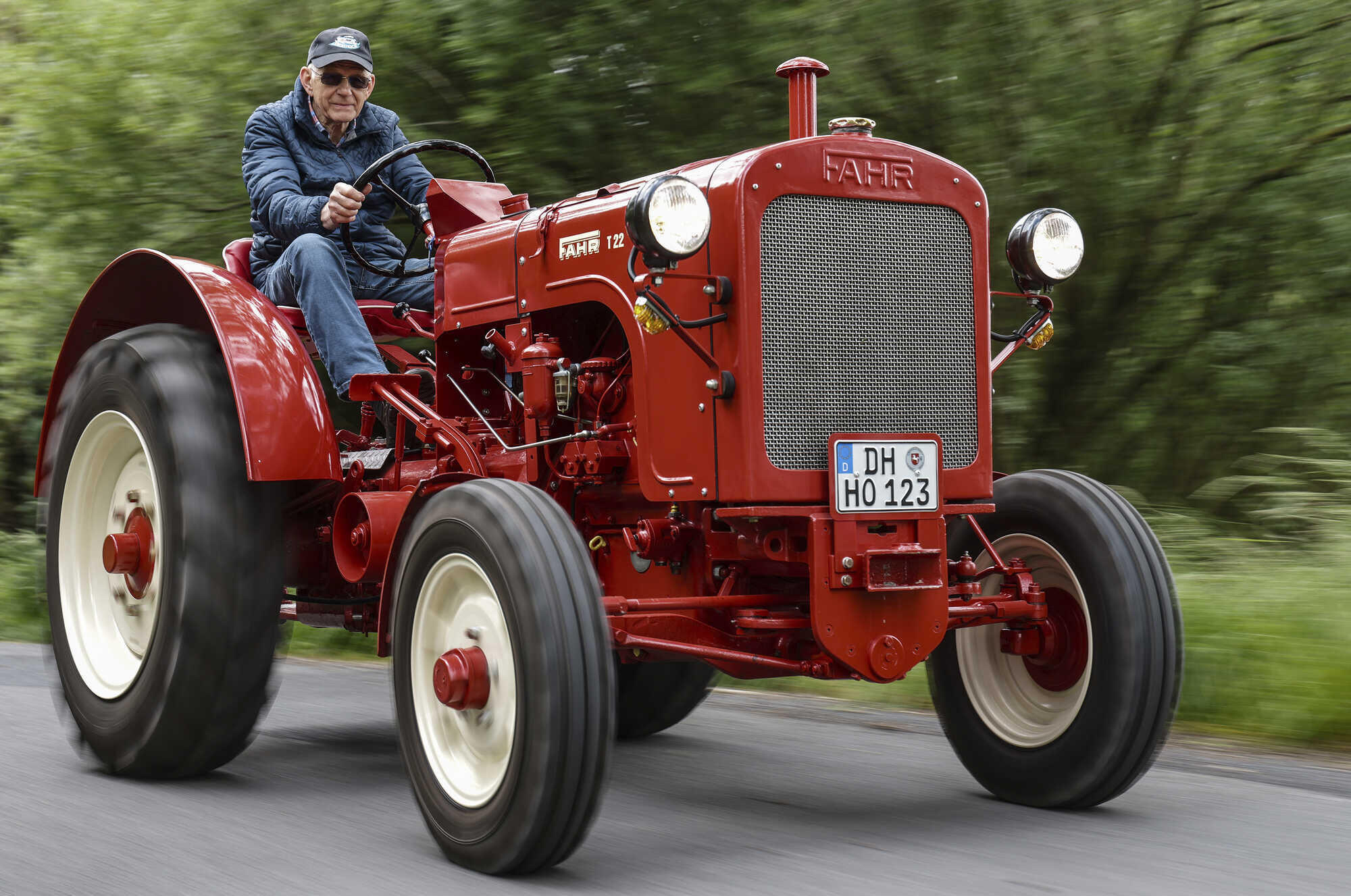

Fahr T22

Name: Fahr T22
Brand: Fahr

Fahr T22 · 22 hp. Reference specifications; pending source verification.

The Fahr T22 is a tractor with a rated output of 22 hp — making it one of the more compact options in its class. It was produced from 1941 to 1942. Power comes from a 2-cylinder diesel liquid-cooled engine, driving through two-wheel drive with a 5-speed gearbox. Listed weight is 1800 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

22 hp

Weight

1800 kg

Catalogue coverage

Variants represented

Richest spec table

25 rows

Recorded power

22 hp

Recorded weight

1800 kg

Transmissions

5-speed gear

Production years

1941-1942

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFahrReference

Total built905Reference

Two-wheel driveReference

Manual steeringReference

Open operator station.Reference

Engine

Deutz 2.2L 2-cyl dieselReference

Engine16.4 kWReference

Deutz F2M414Reference

dieselReference

2-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke100 x 140 mmReference

Power16.4 kWReference

Rated RPM1500Reference

Transmission

5-speed gearReference

TransmissionFahrReference

TypegearReference

Gears5 forward and 1 reverseReference

Dimensions

Wheelbase169 cmReference

Weight1800 kgReference

Length279 cmReference

Width153 cmReference

Height150 cmReference

Ground clearance28 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
