Tractor · 2005Unverified
Farm Pro 2010

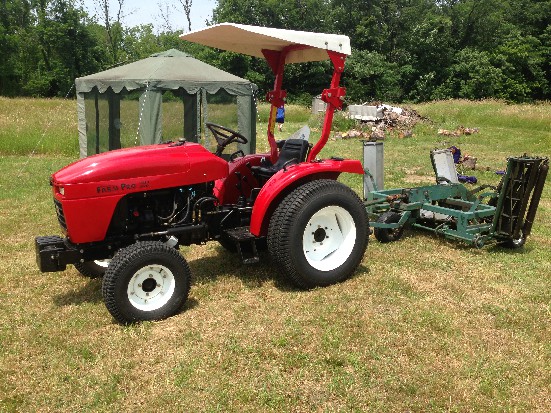

Farm Pro 2010 — Jinma built · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
2160 to 2425 pounds
Hover a source tag to verify
Overview
DistributorFarm ProReference
ManufacturerJinmaReference
Built in ChinaReference
Four-wheel driveReference
SteeringpowerReference
ROPS canopyReference
Engine
1.4L 3-cyl dieselReference
Engine14.9 kWReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke80 x 90 mmReference
Power14.9 kWReference
Rated RPM2300Reference
Oil capacity3.5 LReference
Coolant capacity9.8 LReference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Oil capacity14.0 LReference
Capacities
Fuel18.2 LReference
PTO & Hydraulics
Hydraulic system9.0 LReference
Capacity9.0 LReference
Pressure137.9 barReference
Total flow18.2 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)367 kgReference
Rear PTOlive (2-stage clutch)Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase150 cmReference
Weight2160 to 2425 poundsReference
Front tire6.00-12Reference
Rear tire8.3-24Reference
Ag front6.00-12Reference
Ag rear8.3-24Reference
Length270 cmReference
Width123 cmReference
Height130 cmReference
Shipping weight979 kgReference
Operating weight1099 kgReference
Ground clearance27 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
