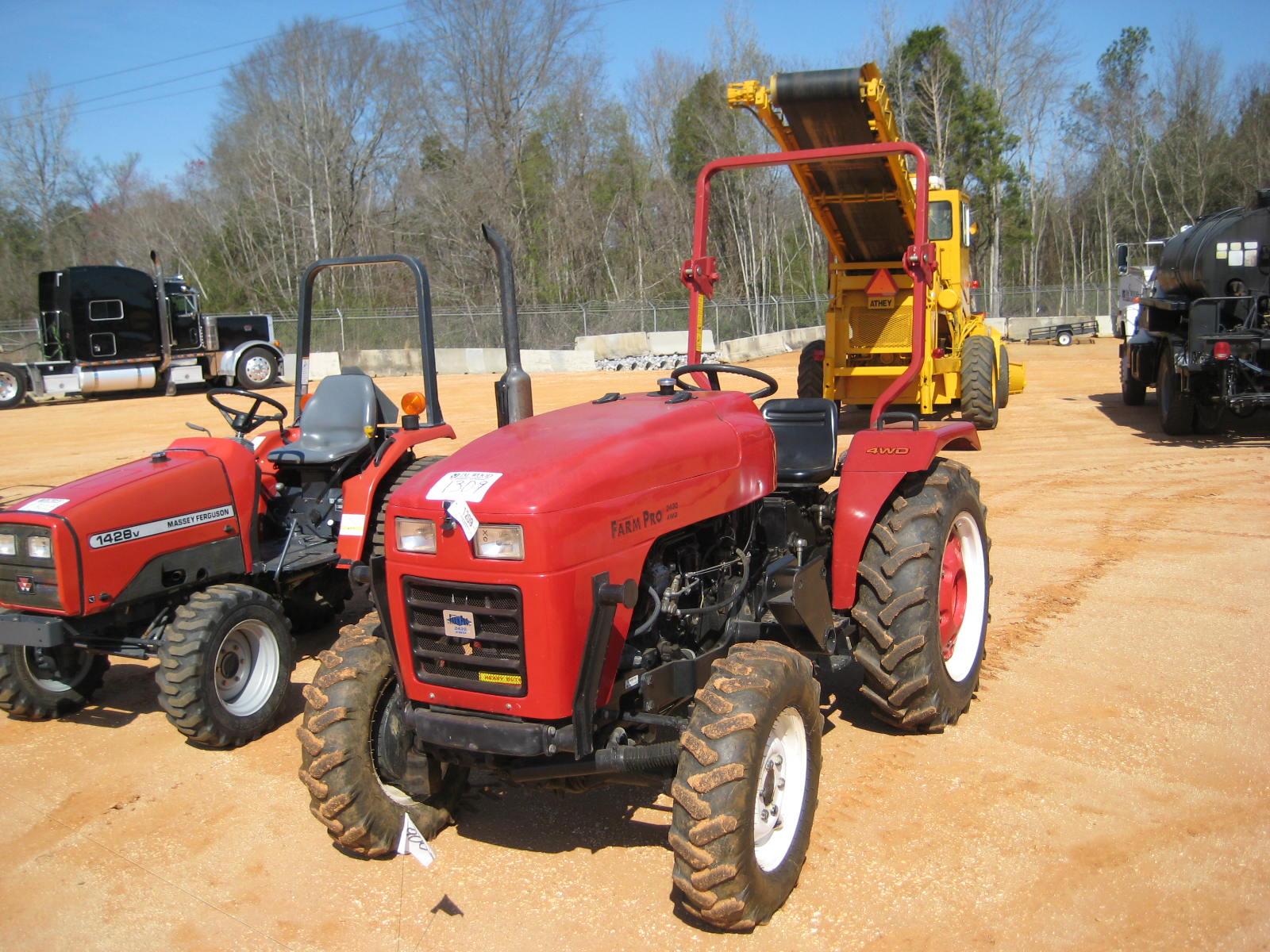

The Farm Pro 2430 is a tractor with a rating of approximately 30 hp, categorising it at the lower end of its class. Produced between 2002 and 2006, this tractor is equipped with a 3-cylinder diesel liquid-cooled engine and four-wheel drive, paired with an 8-speed gearbox. Its listed operating weight is 1986 kg, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1986 kg
Catalogue coverage
Variants represented
2
Richest spec table
42 rows
Recorded power
30 hp
Recorded weight
1986 kg
Transmissions
8-speed
Production years
2002-2006
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorFarm ProReference
ManufacturerJinmaReference
Compact Utility tractorReference
Built in ChinaReference
Four-wheel driveReference
SteeringpowerReference
ROPS canopyReference
Engine
2.2L 3-cyl dieselReference
Engine22.4 kWReference
TY395Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke95 x 105 mmReference
Power22.4 kWReference
Rated RPM2000Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.0 LReference
Coolant capacity7.2 LReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Oil capacity18.5 LReference
Capacities
Fuel29.9 LReference
PTO & Hydraulics
Hydraulic system8.7 LReference
Capacity8.7 LReference
Total flow11.4 lpmReference
Rear TypeIReference
Rear PTOlive (two-stage clutch)Reference
Rear PTO Type540/720Reference
Dimensions
Wheelbase182 cmReference
Weight1986 kgReference
Front tire7.50-16Reference
Rear tire11.2-24Reference
Ag front7.50-16Reference
Ag rear11.2-24Reference
Length323 cmReference
Width143 cmReference
Height243 cmReference
Shipping weight1986 kgReference
Ground clearance26 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
