Tractor · 2005Unverified

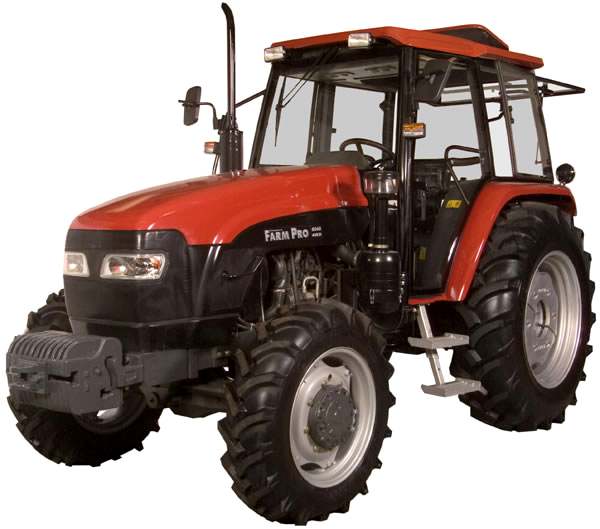

Farm Pro 3010
Farm Pro 3010 — Jinma built · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
3494 to 3858 pounds
Hover a source tag to verify
Overview
DistributorFarm ProReference
ManufacturerJinmaReference
Built in ChinaReference
Four-wheel driveReference
SteeringpowerReference
ROPS canopyReference
Engine
1.8L 4-cyl dieselReference
Engine22.4 kWReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke80 x 90 mmReference
Power22.4 kWReference
Rated RPM2200Reference
Oil capacity6.0 LReference
Coolant capacity7.2 LReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Oil capacity18.5 LReference
Capacities
Fuel29.9 LReference
PTO & Hydraulics
Hydraulic system8.8 LReference
Capacity8.8 LReference
Pressure137.9 barReference
Total flow18.2 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)649 kgReference
Rear PTOlive (2-stage clutch)Reference
Rear PTO Type540/720Reference
Dimensions
Wheelbase167 cmReference
Weight3494 to 3858 poundsReference
Front tire7.5-16Reference
Rear tire11.2-24Reference
Ag front7.5-16Reference
Ag rear11.2-24Reference
Length306 cmReference
Width144 cmReference
Height198 cmReference
Shipping weight1584 kgReference
Operating weight1749 kgReference
Ground clearance29 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
