Tractor · 2005Unverified

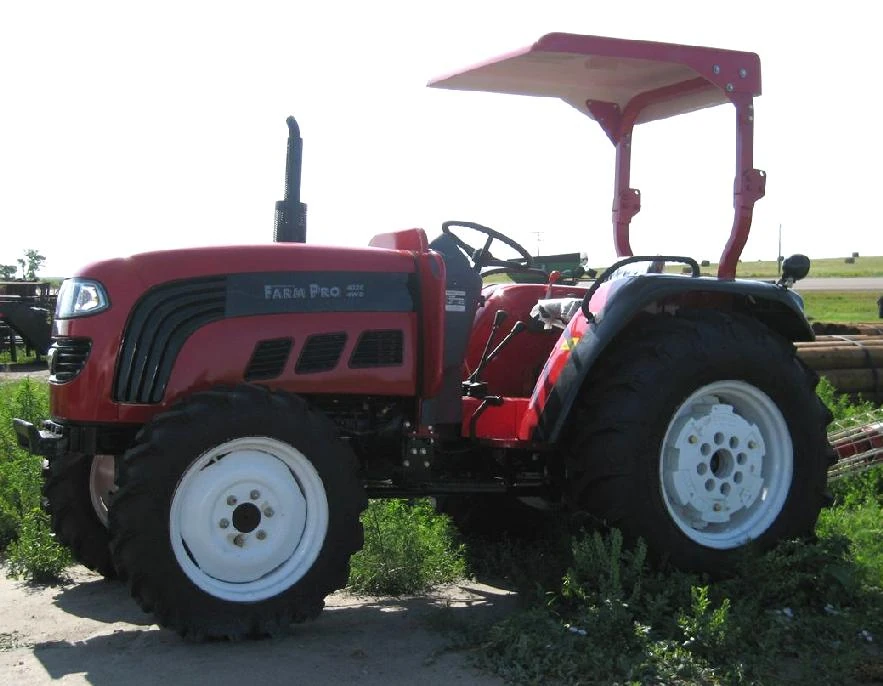

Farm Pro 4020
Farm Pro 4020 — Foton built · 40 hp. Reference specifications; pending source verification.
The Farm Pro 4020 is a compact tractor with a rating of 40 hp, manufactured from 2005 to 2012. It features a 3-cylinder diesel liquid-cooled engine, driving through a four-wheel drive system with an 8-speed gearbox. The tractor's weight is listed as 4167 to 4585 pounds. It is designed for tasks on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
4167 to 4585 pounds
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
40 hp
Recorded weight
1890 kg
Transmissions
8-speed
Production years
2005-2012
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorFarm ProReference
ManufacturerFotonReference
Built in ChinaReference
Four-wheel driveReference
SteeringpowerReference
ROPS canopyReference
Engine
2.9L 3-cyl dieselReference
Engine29.8 kWReference
SL3105BTReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke105 x 110 mmReference
Power29.8 kWReference
Rated RPM2200Reference
Oil capacity7.0 LReference
Coolant capacity9.5 LReference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
Oil capacity27.0 LReference
Capacities
Fuel37.9 LReference
PTO & Hydraulics
Hydraulic system12.0 LReference
Capacity12.0 LReference
Pressure160.0 barReference
Total flow11.4 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)683 kgReference
Rear PTO Type540 / 1000Reference
Dimensions
Wheelbase130 cmReference
Weight4167 to 4585 poundsReference
Front tire8.3Reference
Rear tire12.4Reference
Ag front8.3 - 20Reference
Ag rear12.4 - 28Reference
Length351 cmReference
Width175 cmReference
Height (exhaust)213 cmReference
Shipping weight1890 kgReference
Operating weight2079 kgReference
Ground clearance32 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
