Tractor · Unverified

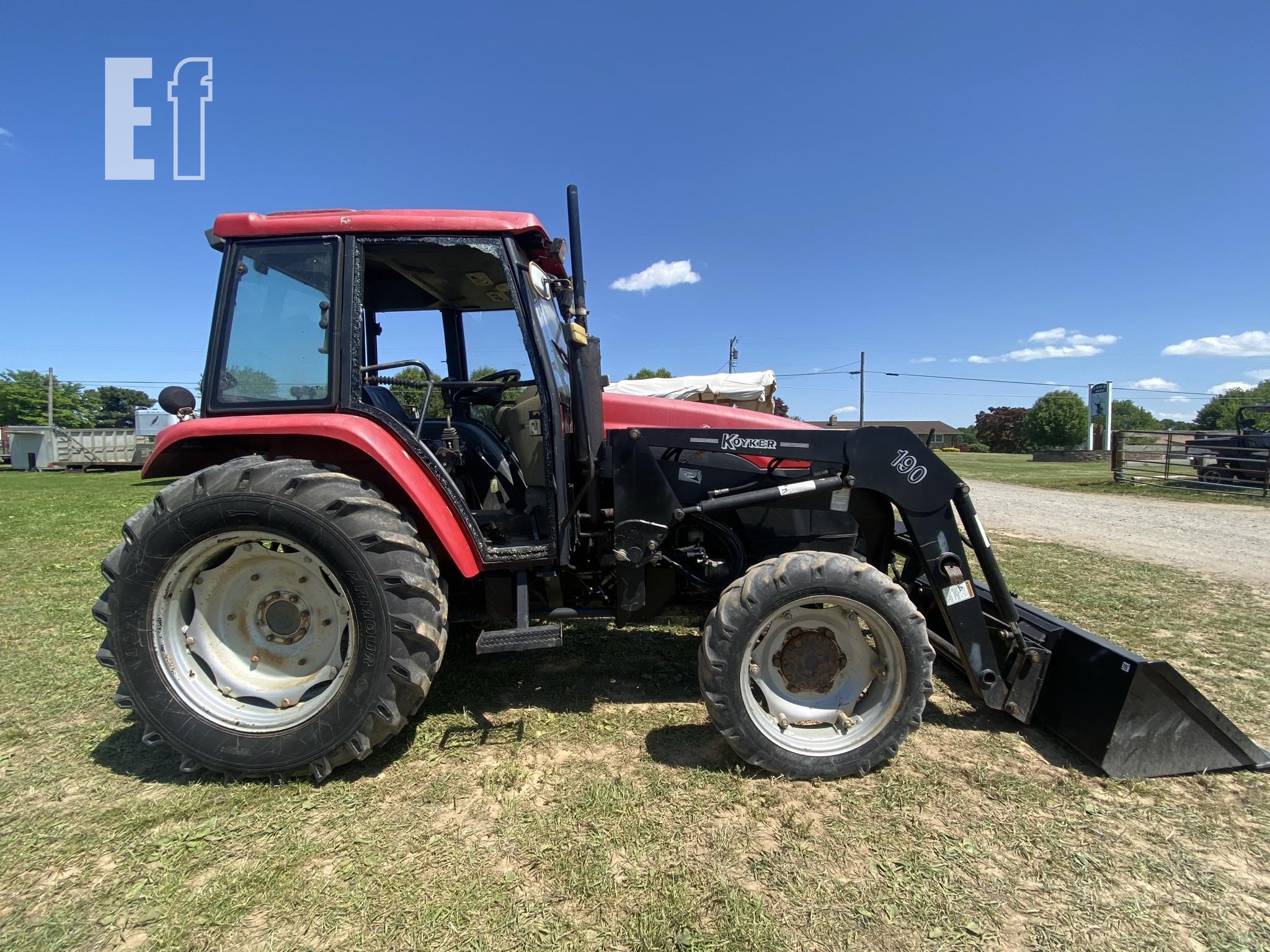

Farm Pro 7040

Name: Farm Pro 7040
Brand: Farm Pro

Farm Pro 7040 — Jinma built · 70 hp. Reference specifications; pending source verification.

The Farm Pro 7040 is a tractor with a power output of approximately 70 hp, a mid-range rating for its class. It features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and an 8-speed gearbox. The tractor's operating weight ranges from 6999 to 7507 pounds. It is designed for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

70 hp

Weight

6999 to 7507 pounds

Catalogue coverage

Variants represented

Richest spec table

43 rows

Recorded power

70 hp

Recorded weight

3174 kg

Transmissions

8-speed

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorFarm ProReference

ManufacturerJinmaReference

Built in ChinaReference

Four-wheel driveReference

SteeringpowerReference

Cab with heat and A/CReference

Engine

Perkins 4.0L 4-cyl dieselReference

Engine52.2 kWReference

PerkinsReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke100 x 127 mmReference

Power52.2 kWReference

Rated RPM2200Reference

Oil capacity17.0 LReference

Coolant capacity15.0 LReference

Transmission

8-speedReference

Gears8 forward and 2 reverseReference

Oil capacity40.0 LReference

Capacities

Fuel78.0 LReference

PTO & Hydraulics

Hydraulic system21.0 LReference

Capacity21.0 LReference

Pressure160.7 barReference

Total flow34.1 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)1223 kgReference

Rear PTOlive (2-stage clutch)Reference

Rear PTO Type540Reference

Dimensions

Wheelbase145 cmReference

Weight6999 to 7507 poundsReference

Front tire8.3Reference

Rear tire14.9Reference

Ag front8.3 - 24Reference

Ag rear14.9 - 30Reference

Length401 cmReference

Width192 cmReference

Height (cab)249 cmReference

Height (exhaust)256 cmReference

Shipping weight3174 kgReference

Operating weight3405 kgReference

Ground clearance34 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
