Tractor · 1954Unverified

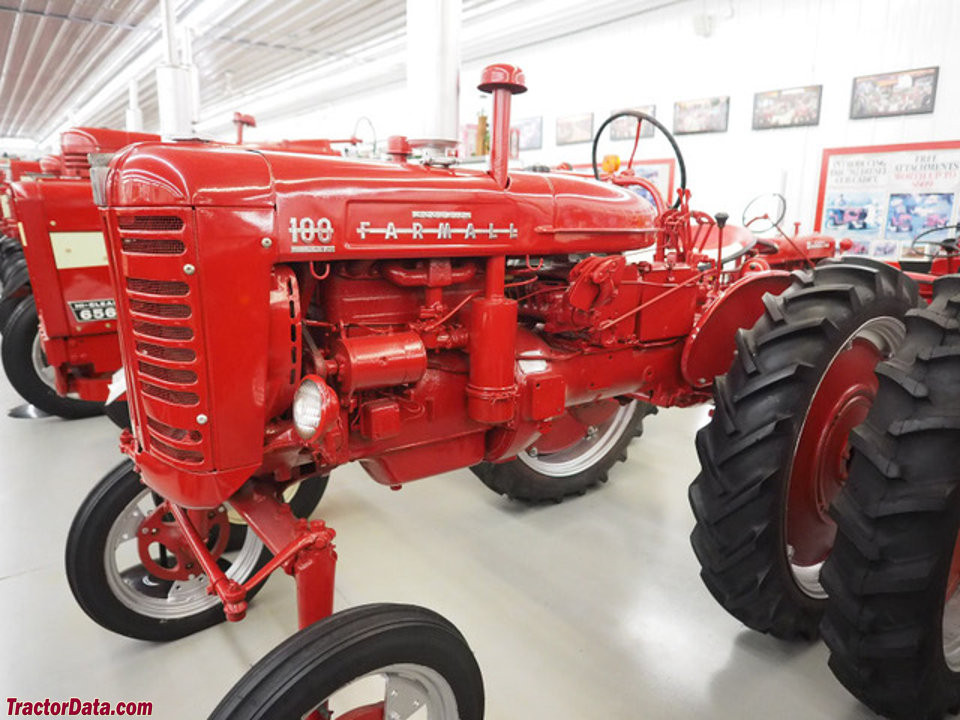

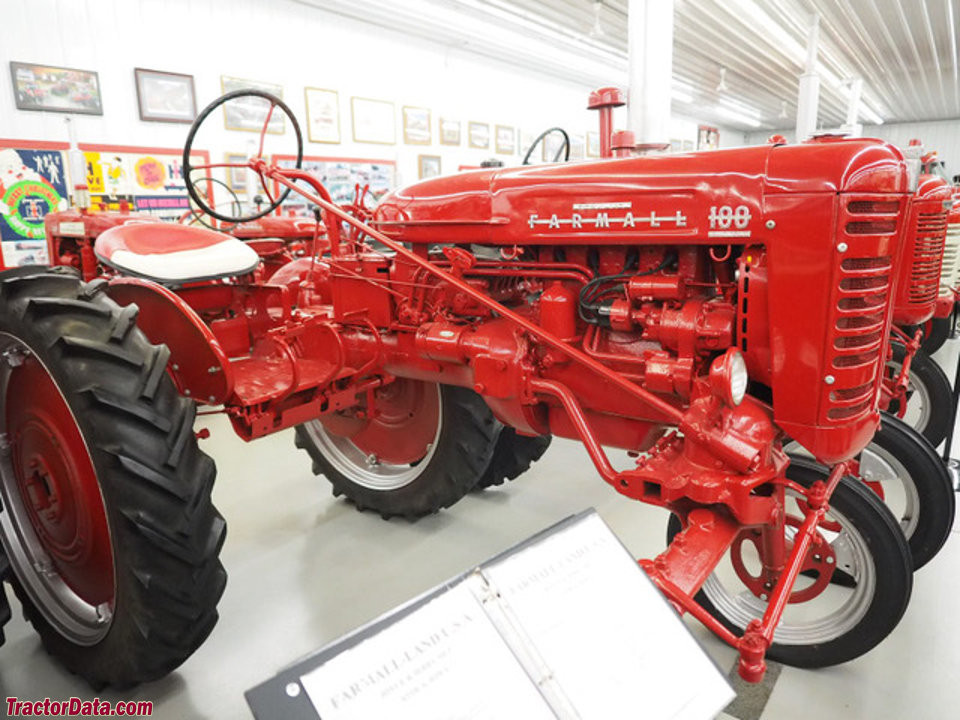

Farmall 100 Hi-Clear

Name: Farmall 100 Hi-Clear
Brand: Farmall

Farmall 100 Hi-Clear — Row-Crop tractor. Reference specifications; pending source verification.

The Farmall 100 Hi-Clear is a tractor model. It was built from 1954 to 1956. Under the hood is a 4-cylinder petrol liquid-cooled engine, paired with two-wheel drive with a 4-speed gearbox. It has a listed operating weight of 1281 kg, and it suits operations of varies. Recorded specifications in UK and US units are listed below.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Weight

1281 kg

Catalogue coverage

Variants represented

Richest spec table

58 rows

Recorded weight

1281 kg

Transmissions

4-speed gear

Production years

1954-1956

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFarmall (a part of International Harvester)Reference

Row-Crop tractorReference

Built in Louisville, Kentucky, USAReference

Total built1,057Reference

Two-wheel driveReference

Manual steeringReference

Contracting band brakesReference

Open operator station.Reference

Variants

IH 100utility tractorReference

Farmall 100row-crop tractorReference

100 Hi-Clearhigh crop tractorReference

Engine

International Harvester 2.0L 4-cyl gasolineReference

Fuel tank41.6 LReference

Plows1Reference

International Harvester C-123Reference

gasolineReference

4-cylinderReference

liquid-cooled inlineReference

Displacement2.0 LReference

Bore/Stroke79 x 102 mmReference

Air cleaneroil bathReference

Compression6.5:1Reference

Rated RPM1400Reference

Idle RPM900-1400Reference

Firing order1-3-4-2Reference

Starter volts6Reference

Oil capacity4.7 LReference

Transmission

4-speed gearReference

TypegearReference

Gears4 forward and 1 reverseReference

PTO & Hydraulics

Typeopen centerReference

TypeIH Fast HitchReference

Rear PTO Type540Reference

Engine RPM541@1400Reference

Dimensions

Wheelbase181 cmReference

Weight1281 kgReference

Front tire4.00-19Reference

Rear tire9-36Reference

Ag front4.00-19Reference

Ag rear9-36Reference

Length292 cmReference

Width153 cmReference

Height (steering wheel)182 cmReference

Shipping weight1281 kgReference

Clearance (rear axle)69 cmReference

Clearance (drawbar)32 cmReference

Clearance (drawbar)46 cmReference

Front tread111 to 172 cmReference

Rear tread101 to 172 cmReference

100 Hi-Clear Serial Numbers

1954501Reference

19551720Reference

195612895Reference

Final18940Reference

FAQ: How to read a serial number table.Reference

Capacities

Diameter21 cmReference

Width15 cmReference

RPM1157Reference

Speed784.56 meters/minReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
