Tractor · 1970Unverified

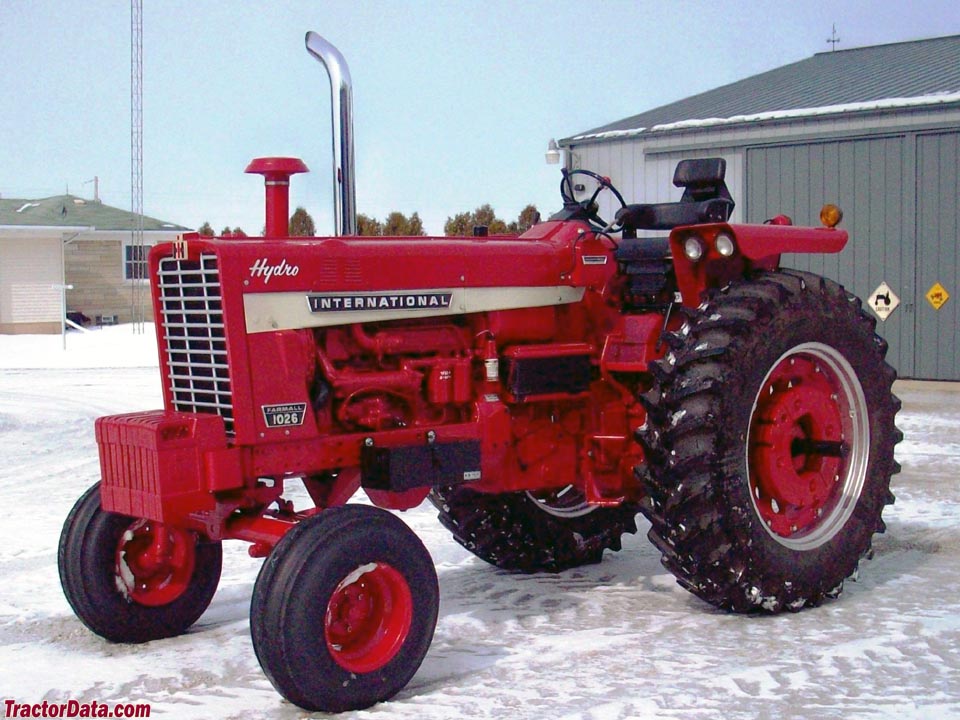

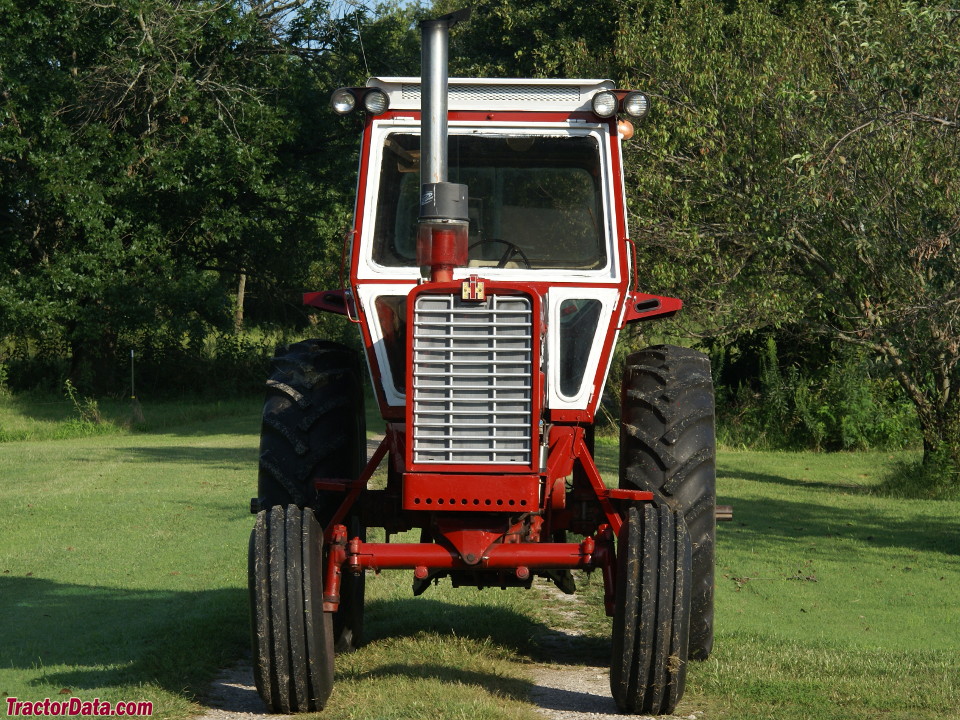

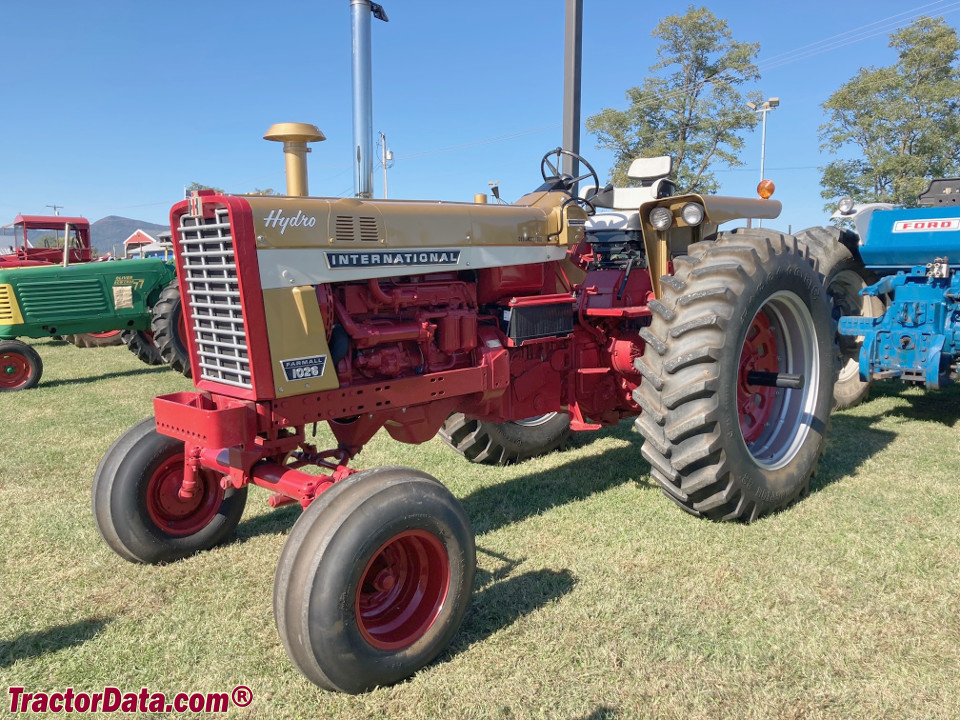

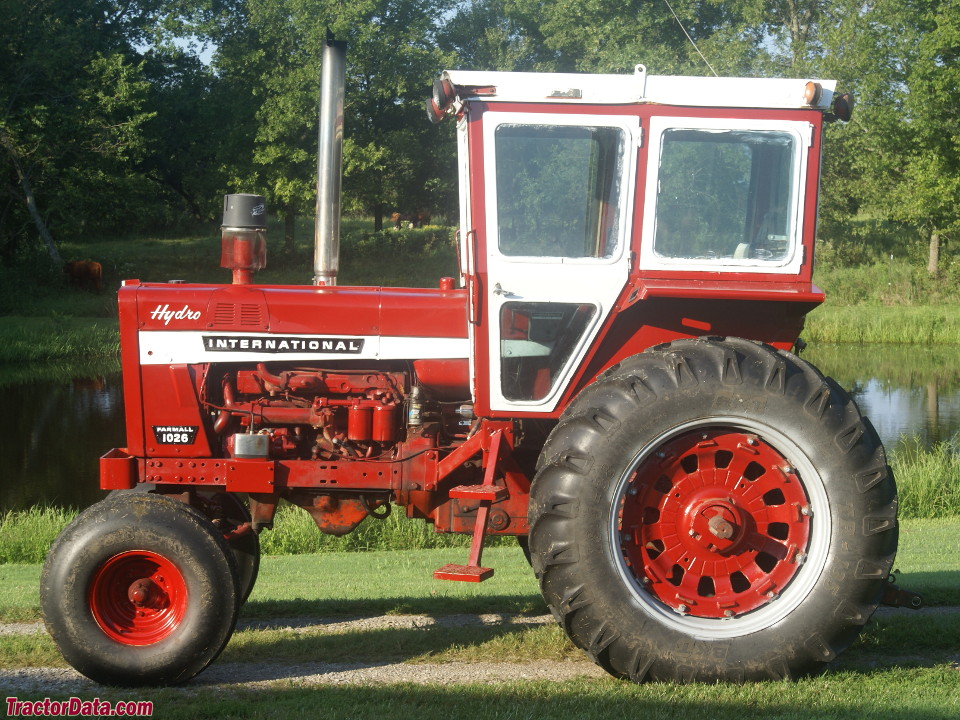

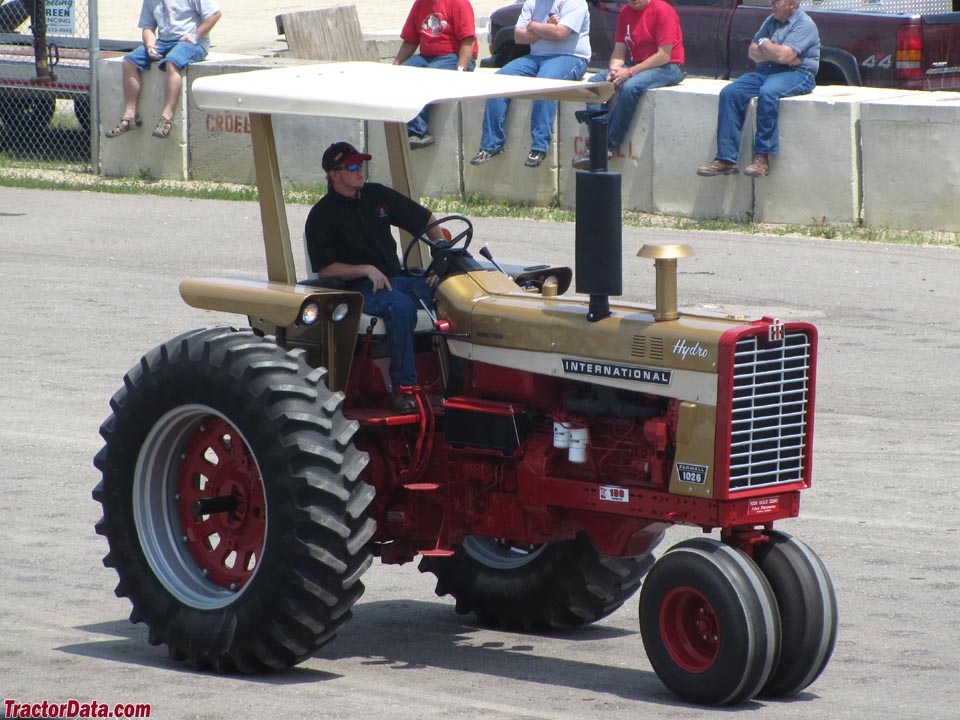

Farmall 1026
Farmall 1026 — Row-Crop tractor · 127 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
127 hp
Max power
59.8 kW
Weight
5034 kg
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
Row-Crop tractorReference
Built in Rock Island, Illinois, USAReference
Total built2,414Reference
Original price was $11,800 in 1971Reference
Two- or four-wheel driveReference
Power steeringReference
Differential hydraulic dry disc brakesReference
Open operator station.Reference
Variants
IH 1026standardReference
Farmall 1026row-cropReference
IH 21026industrialReference
Engine
International Harvester 6.7L 6-cyl dieselReference
Fuel tank159.0 LReference
Engine (gross)94.7 kWReference
Engine (net)91.7 kWReference
Drawbar (tested)59.8 kWReference
International Harvester DT-407Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke110 x 117 mmReference
Power (net)91.7 kWReference
Power (gross)94.7 kWReference
Air cleanerdual-stage dryReference
Compression16:1Reference
Rated RPM2400Reference
Idle RPM900-2400Reference
Starter volts12Reference
Oil capacity12.3 LReference
Coolant capacity22.7 LReference
Power at rated engine speed83.9 kWReference
Max power59.8 kWReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity26.5 LReference
PTO & Hydraulics
PTO (claimed)83.5 kWReference
PTO (tested)83.9 kWReference
Typeopen centerReference
Rear valves1 or 2Reference
Rear TypeIIReference
Controlhydraulic draft controlReference
Rear PTOindependentReference
Clutchhydraulic discReference
Rear PTO Type1000Reference
Rear PTO Type540/1000Reference
Engine RPM540@2100Reference
Engine RPM1000@2100Reference
Power at rated PTO speed82.6 kWReference
Dimensions
Wheelbase266 cmReference
Weight5034 kgReference
Front tire11L-15Reference
Rear tire18.4-38Reference
Ag front11L-15Reference
Ag rear18.4-38Reference
Length421 cmReference
Height (steering wheel)218 cmReference
Operating weight5034 kgReference
Ballasted weight6792 kgReference
Bar rear axle82 mmReference
Front tread152 to 213 cmReference
Farmall 1026 attachments
front-end loaderReference
1026 Serial Number Location
Serial number plate on the left side of the hydrostatic housing, ahead of the batteries.Reference
1026 Serial Numbers
19707501Reference
19719707Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Batteries2Reference
Battery volts6Reference
Battery AH204Reference
Test results
Diesel hydro 2WDJune 3 - 27, 1970Link: Nebraska Tractor Test 1047 fileReference
PTO performanceReference
Fuel use29.9 l/hourReference
Fuel use26.9 l/hourReference
Drawbar performanceReference
Fuel use29.5 l/hourReference
Max pull4346 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
