Tractor · 1965Unverified

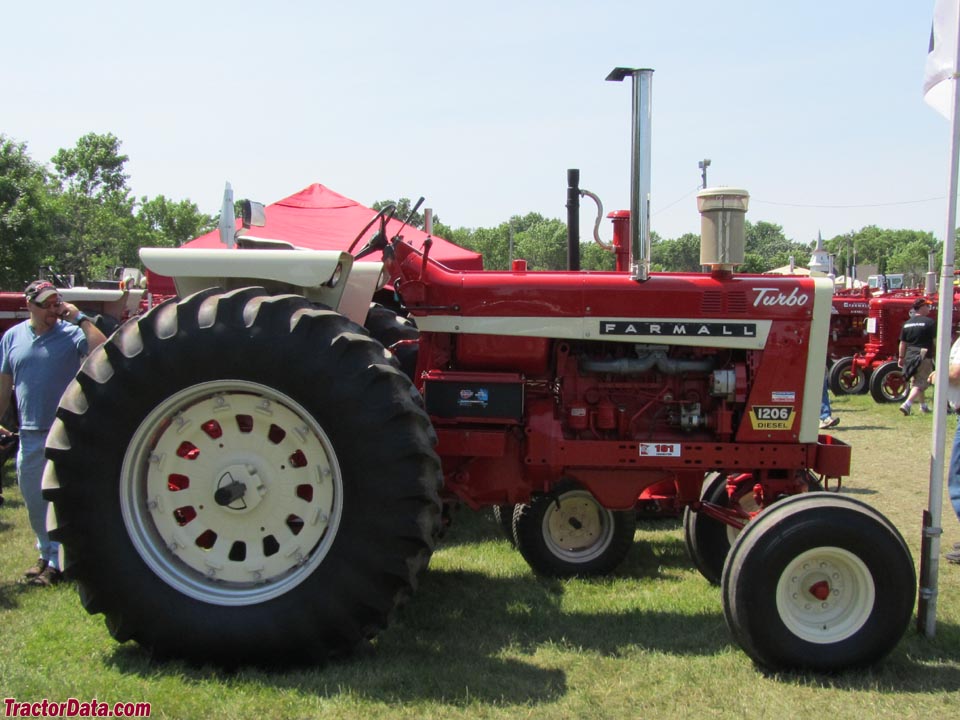

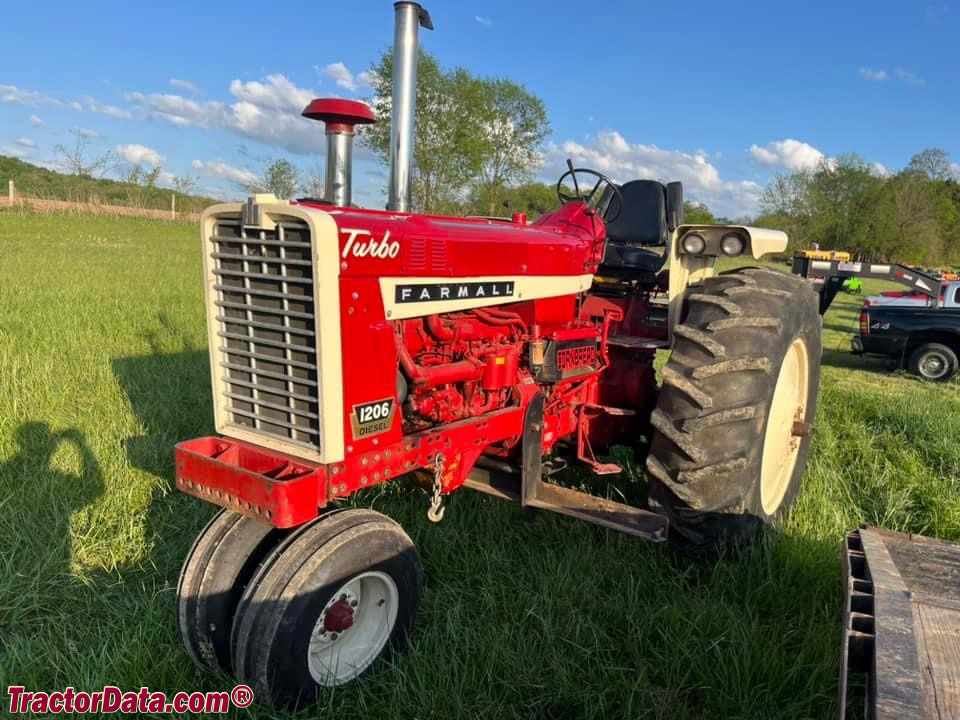

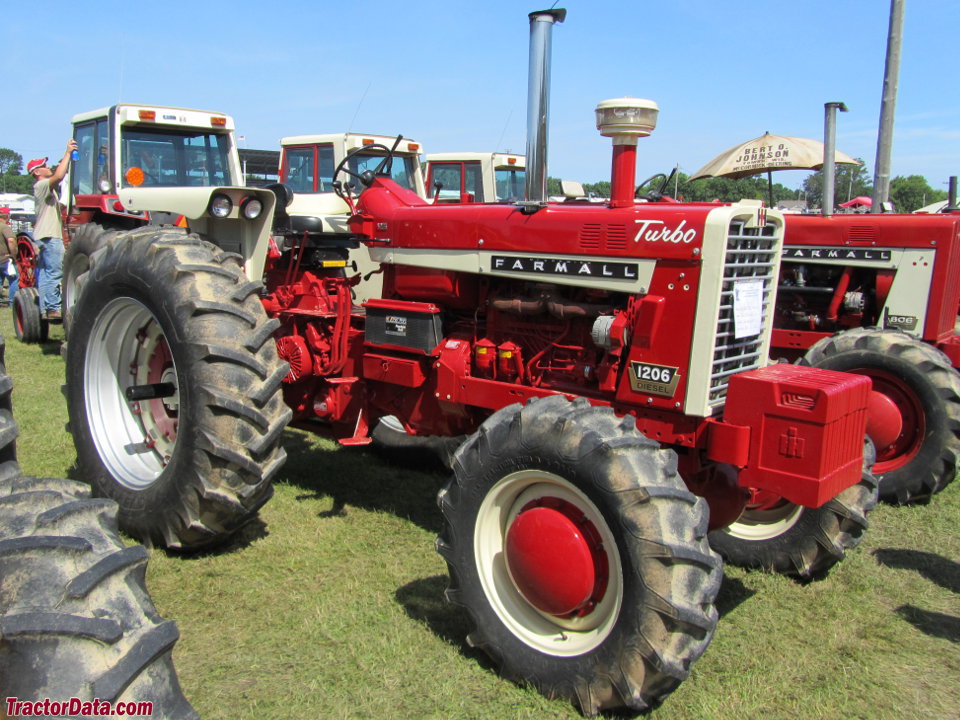

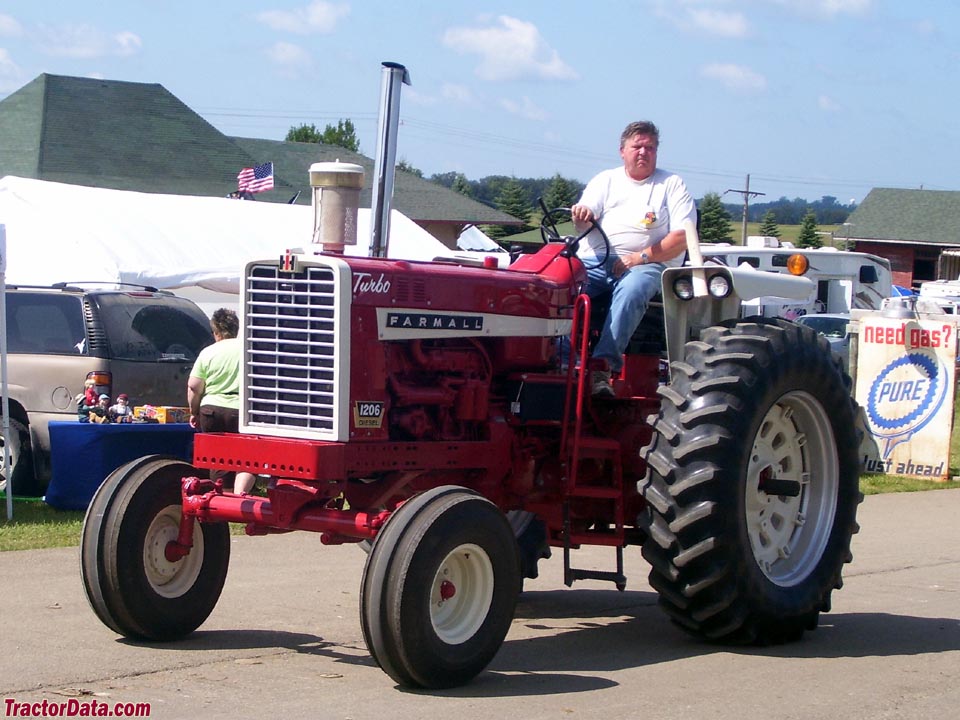

Farmall 1206
Farmall 1206 · 113 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
113 hp
Max power
70.8 kW
Weight
9400 to 10115 pounds
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
Built in Rock Island, Illinois, USAReference
Total built8,400Reference
Original price was $9,450 in 1967Reference
Two- or four-wheel driveReference
Power steeringReference
Differential hydraulic dry disc brakesReference
Open operator station. Optional one-door cab. Optional heat and air-conditioning.Reference
Variants
IH 1206standard frontReference
Farmall 1206row-cropReference
Wheatlandlarger platform, heavy drawbarReference
Engine
International Harvester 5.9L 6-cyl dieselReference
Fuel tank159.0 LReference
Drawbar (claimed)74.3 kWReference
Drawbar (tested)70.8 kWReference
International Harvester DT361Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke105 x 108 mmReference
Air cleanertwo-stage dryReference
Compression17.0:1Reference
Rated RPM2400Reference
Starter volts12Reference
Oil capacity14.2 LReference
Coolant capacity22.2 LReference
Power at rated engine speed84.0 kWReference
Max power70.8 kWReference
Transmission
8-speed unsynchronizedReference
16-speed partial power shiftReference
TypeunsynchronizedReference
Gears8 forward and 4 reverseReference
TransmissionTorque AmplifierReference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
The Torque Amplifier (TA) provides a clutchless power shift between Direct Drive (DD) and the lower TA gearing.Reference
PTO & Hydraulics
PTO (claimed)84.0 kWReference
PTO (tested)84.0 kWReference
Valves0 to 2Reference
Pump flow45.4 lpmReference
Rear TypeIIIReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Power at rated PTO speed79.5 kWReference
Dimensions
Wheelbase256 cmReference
Weight9400 to 10115 poundsReference
Front tire7.50-16Reference
Rear tire18.4-38Reference
Ag front7.50-16Reference
Ag rear18.4-38Reference
Length388 cmReference
Width233 cmReference
Height (steering wheel)218 cmReference
Shipping4263 kgReference
Operating4588 kgReference
Ballasted6159 kgReference
1206 Serial Number Location
On clutch housing, left sideReference
1206 Serial Numbers
19657501Reference
19668626Reference
196712731Reference
FAQ: How to read a serial number table.Reference
Test results
Diesel Torque Amplifier 2WDSeptember 8 - 23, 1965Link: Nebraska Tractor Test 910 fileReference
PTO performanceReference
Fuel use26.9 l/hourReference
Fuel use24.6 l/hourReference
Drawbar performanceReference
Fuel use26.5 l/hourReference
Gear 1-DD used for power test.Reference
Max pull4873 kgReference
Gear 1-TA used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
