Tractor · 1956Unverified

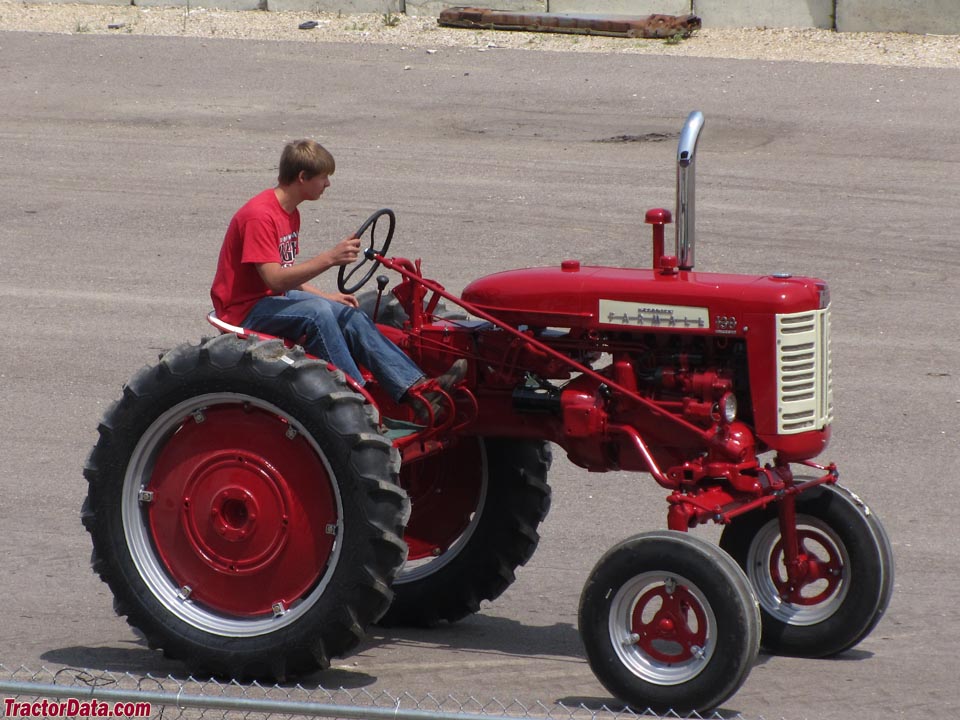

Farmall 130 Hi-Clear
Farmall 130 Hi-Clear — High-Clearance tractor. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
1270 kg
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
High-Clearance tractorReference
Two-wheel driveReference
SteeringmanualReference
Mechanical contracting band brakesReference
Open operator station.Reference
Variants
130row-cropReference
130 Hi-Clearhigh-cropReference
Engine
International Harvester 2.0L 4-cyl gasolineReference
Fuel tank41.6 LReference
International Harvester C-123Reference
gasolineReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement2.0 LReference
Bore/Stroke79 x 102 mmReference
Air cleaneroil bathReference
Compression6.8:1Reference
Rated RPM1400Reference
Firing order1-3-4-2Reference
Starter volts6Reference
Oil capacity4.7 LReference
Coolant capacity14.2 LReference
Transmission
4-speed gearReference
TypegearReference
Gears4 forward and 1 reverseReference
PTO & Hydraulics
TypeIH Fast HitchReference
Dimensions
Wheelbase181 cmReference
Weight1270 kgReference
Front tire4.00-19Reference
Rear tire9.00-36Reference
Ag front4.00-19Reference
Ag rear9.00-36Reference
Length292 cmReference
Width153 cmReference
Height (steering wheel)182 cmReference
Shipping weight1270 kgReference
Front tread111 to 172 cmReference
Rear tread121 to 172 cmReference
130 Hi-Clear Serial Numbers
Location:Clutch housing on left side of tractor.Reference
1956501Reference
19571120Reference
19588363Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
