Tractor · 1958Unverified

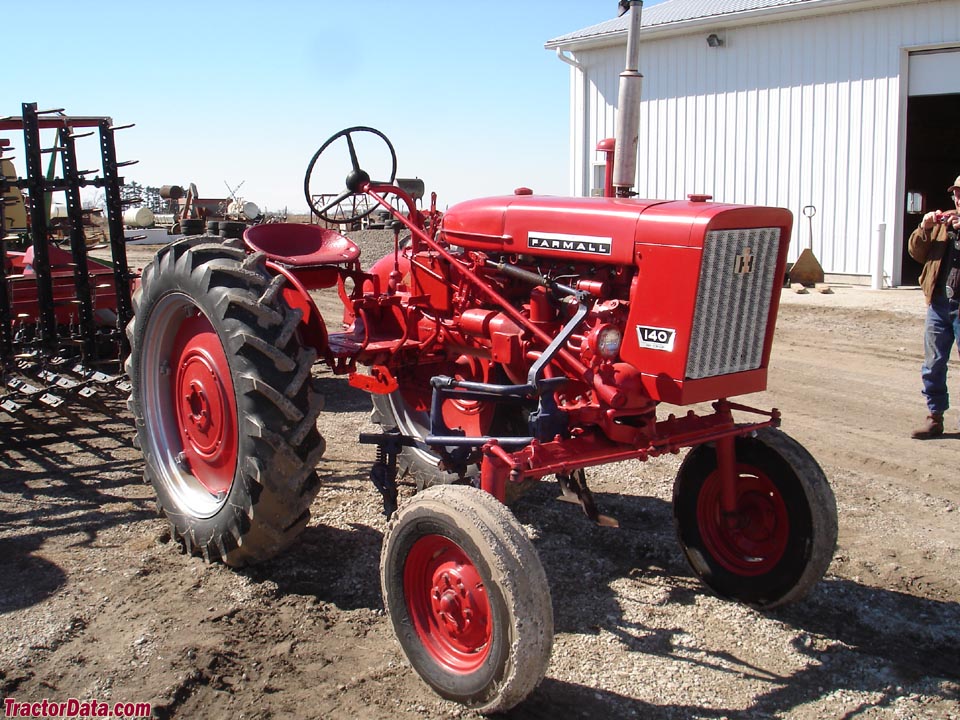

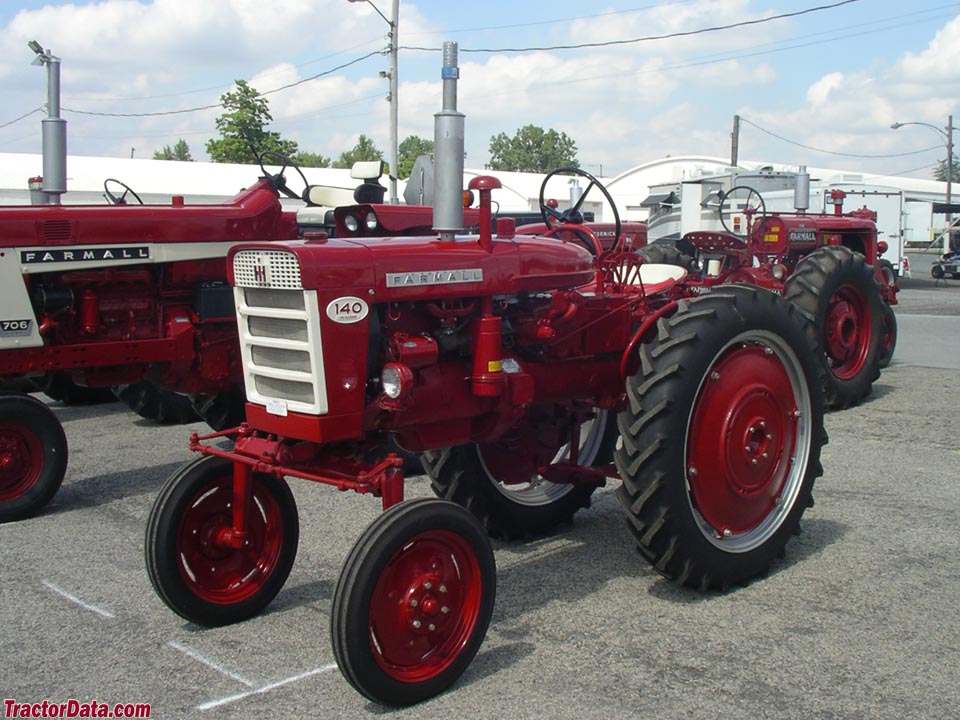

Farmall 140 Hi-Clear
Farmall 140 Hi-Clear — High-Clearance tractor · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
1270 kg
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
High-Clearance tractorReference
Two-wheel driveReference
SteeringmanualReference
Differential contracting band brakesReference
Open operator station.Reference
Variants
International 140IH versionReference
Farmall 140utilityReference
140 Hi-Clearhigh-cropReference
Engine
International Harvester 2.0L 4-cyl gasolineReference
Fuel tank41.6 LReference
Drawbar (claimed)12.7 kWReference
Plows1Reference
International Harvester C-123Reference
gasolineReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement2.0 LReference
Bore/Stroke79 x 102 mmReference
Air cleaneroil bathReference
Compression6.94:1Reference
Rated RPM1400Reference
Firing order1-3-4-2Reference
Starter volts6 (early)Reference
Starter volts12 (late)Reference
Oil capacity4.7 LReference
Coolant capacity14.4 LReference
Transmission
4-speed sliding gearReference
Typesliding gearReference
Gears4 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)15.7 kWReference
TypeIH Fast Hitch (one-point)Reference
Rear PTOtransmissionReference
Rear PTO Type540Reference
Dimensions
Wheelbase181 cmReference
Weight1270 kgReference
Front tire4.00x19Reference
Rear tire9.00x36Reference
Ag front4.00x19Reference
Ag rear9.00x36Reference
Length292 cmReference
Height (steering wheel)182 cmReference
Shipping weight1270 kgReference
140 Hi-Clear Serial Number Location
Serial number plate on the left side of the tractor, on the clutch housing.Reference
140 Hi-Clear Serial Numbers
1958501Reference
19592011Reference
19608082Reference
196111168Reference
196216637Reference
196321181Reference
196425387Reference
196528408Reference
196631285Reference
196734818Reference
196837352Reference
196939906Reference
197042300Reference
197144424Reference
197246605Reference
197348507Reference
197450720Reference
197554273Reference
197657773Reference
197760839Reference
197863111Reference
197964544Reference
FAQ: How to read a serial number table.Reference
Electrical
Groundpositive (6V)Reference
Groundnegative (12V)Reference
Charging systemgenerator (early)Reference
Charging systemalternator (late)Reference
Battery volts6 (early)Reference
Battery volts12 (late)Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
