Tractor · 1956Unverified

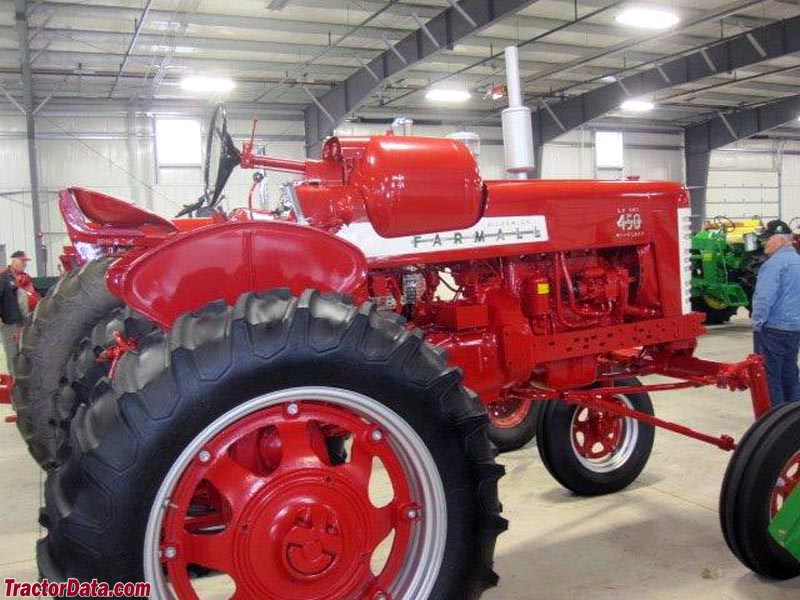

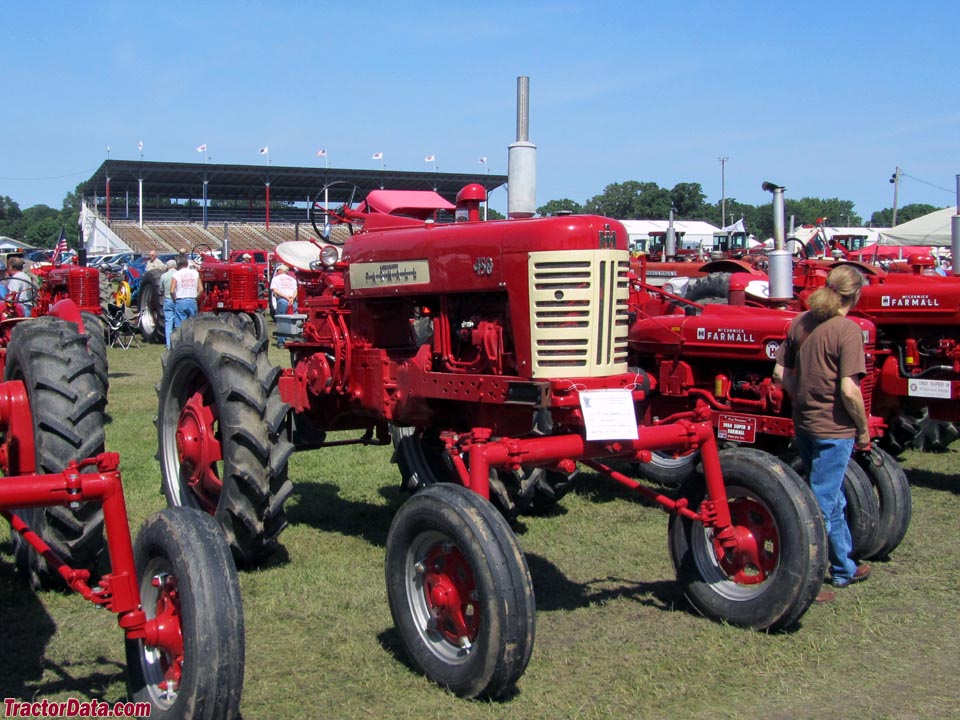

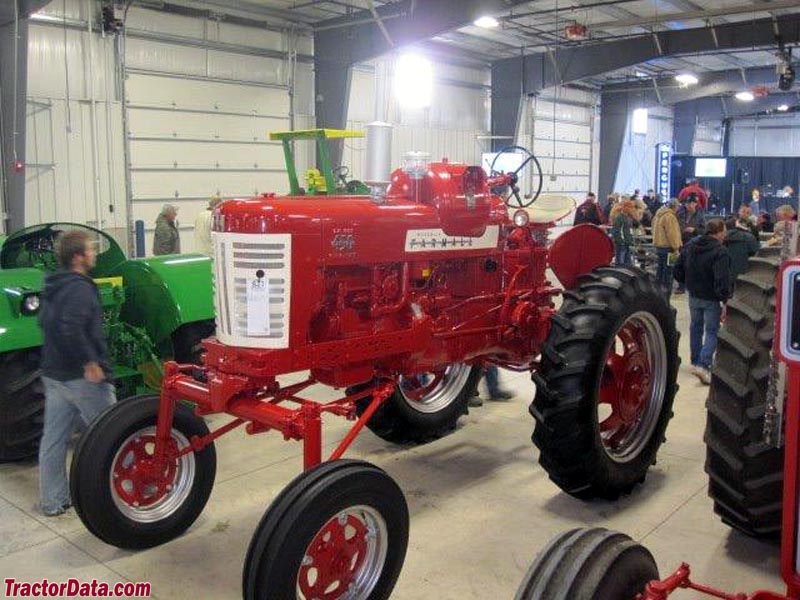

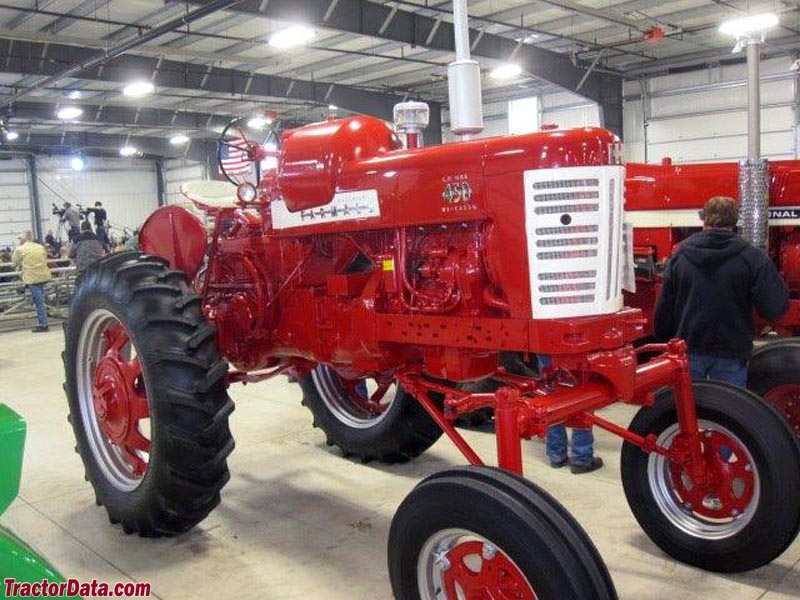

Farmall 450 Hi-Clear
Farmall 450 Hi-Clear — High-Clearance tractor. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
6600 to 7000 pounds
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
High-Clearance tractorReference
Two-wheel driveReference
Steeringpower assistReference
Mechanical disc brakesReference
Open operator station.Reference
Variants
450row-cropReference
W-450standard-frontReference
400 Hi-Clearhigh-cropReference
Engine
International Harvester 4.6L 4-cyl gasolineReference
International Harvester 4.6L 4-cyl dieselReference
International Harvester 4.6L 4-cyl LP gasReference
Fuel tank79.5 LReference
International Harvester C281Reference
gasolineReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement4.6 LReference
Bore/Stroke105 x 133 mmReference
Air cleaneroil bathReference
Compression6.6:1Reference
Rated RPM1450Reference
Starter volts6Reference
Coolant capacity26.5 LReference
International HarvesterReference
dieselReference
Compression17.45:1Reference
Starter volts12Reference
LP gasReference
Compression8.35:1Reference
Transmission
10-speed partial power shiftReference
TransmissionInternational Harvester Torque AmplifierReference
Typepartial power shiftReference
Gears10 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
TypeHydra-TouchReference
Valves1 to 3Reference
TypeIH Fast HitchReference
Rear PTOtransmissionReference
Rear PTOindependent (optional)Reference
Rear PTO Type540Reference
Dimensions
Wheelbase255 cmReference
Weight6600 to 7000 poundsReference
Front tire6.00-20Reference
Rear tire13x38Reference
Ag front6.00-20Reference
Ag rear13x38Reference
Width223 cmReference
Height (steering wheel)236 cmReference
Weight2993 kgReference
Weight3175 kgReference
Front tread152 to 213 cmReference
Rear tread106 to 187 cmReference
450 Hi-Clear Serial Numbers
Location:Left side of clutch housingReference
1956501Reference
19571734Reference
195821871Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter27 cmReference
Width17 cmReference
RPM899Reference
Speed788.82 meters/minReference
Speeds
With 13-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
