Tractor · 1958Unverified
Farmall 560
Farmall 560 — Row-Crop tractor · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Max power
39.6 kW
Weight
6563 to 6785 pounds
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
Row-Crop tractorReference
Total built65,982Reference
Original price$5,500 (1963)Reference
The Farmall 560 experienced problems due to the final drive not being strong enough to handle the power of the engine. An entirely new rear end was offered by International in mid 1959, and the company sponsored a massive replacement program.Reference
Two-wheel driveReference
Steeringmanual rack-and-pinionReference
Steeringhydrostatic power optionalReference
Independent mechanical disc brakesReference
Open operator station.Reference
Variants
IH 560standard-treadReference
Hi-Clearhigh-cropReference
Engine
International Harvester 4.6L 6-cyl dieselReference
International Harvester 4.3L 6-cyl gasolineReference
International Harvester 4.3L 6-cyl LP gasReference
Drawbar (claimed)40.9 kWReference
Plows5Reference
Drawbar (tested)39.6 kWReference
Belt (tested)44.8 kWReference
International Harvester D-282Reference
dieselReference
6-cylinderReference
liquid-cooled vertical I-headReference
Displacement4.6 LReference
Bore/Stroke94 x 112 mmReference
Air cleaneroil bathReference
Compression18.2:1Reference
Rated RPM1800Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity8.5 LReference
Coolant capacity15.1 LReference
Exhaust valve clearance0.686 mmReference
International Harvester C-263Reference
gasolineReference
Displacement4.3 LReference
Bore/Stroke90 x 112 mmReference
Compression7.2:1Reference
International HarvesterReference
LP gasReference
Compression8.75:1Reference
Power at rated engine speed44.4 kWReference
Max power39.6 kWReference
Power at rated engine speed47.0 kWReference
Max power38.0 kWReference
Belt power (max)44.8 kWReference
Max power32.8 kWReference
Transmission
5-speed sliding gearReference
10-speed partial power shiftReference
Typesliding gearReference
Gears5 forward and 1 reverseReference
Oil capacity60.6 LReference
Tractor must be stopped and clutch used to shift gears.Reference
TransmissionTorque AmplifierReference
Typepartial power shiftReference
Gears10 forward and 2 reverseReference
The Torque Amplifier (TA) allows a clutchless shift-on-the-move underspeed for any gear. With the TA lever forward, the TA is disengaged and the transmission is in direct drive (DD) mode. To engage the TA, the lever should be pulled quickly and smoothly to the rear. The TA on the 560 will free-wheel, so it should be disengaged when going downhill or towing the tractor to start it.Reference
PTO & Hydraulics
PTO (claimed)44.4 kWReference
PTO (tested)47.0 kWReference
Hydraulic system60.6 LReference
Capacity60.6 LReference
Valves1 to 3Reference
Pump flow45.4 lpmReference
Pump flow64.3 lpmReference
Steering flow9.5 lpmReference

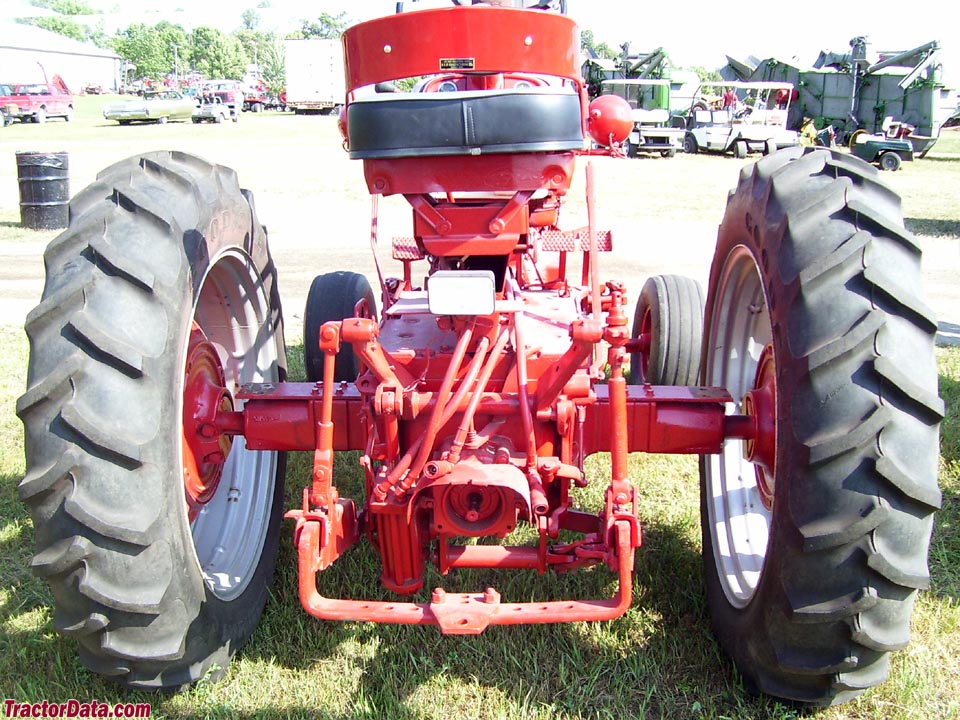

TypeIH Fast HitchReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Capacities
Fuel124.9 LReference
Fuel140.0 LReference
Diameter27 cmReference
Width19 cmReference
Dimensions
Wheelbase243 cmReference
Wheelbase254 cmReference
Weight6563 to 6785 poundsReference
Front tire6.00-16Reference
Rear tire12.4-38Reference
Ag front6.00-16Reference
Ag front6.00-20 (Hi-Clear)Reference
Ag rear12.4-38Reference
Ag rear13.6-38Reference
Ag rear15.5-38Reference
Length358 cmReference
Length393 cmReference
Width215 cmReference
Width223 cmReference
Width271 cmReference
Height (steering wheel)223 cmReference
Height (steering wheel)271 cmReference
Bar rear axle69 mmReference
Operating2976 kgReference
Operating3077 kgReference
Ballasted4291 kgReference
Farmall 560 attachments
front-end loaderReference
560 Serial Number Location
Clutch housing, right sideReference
560 Serial Numbers
1958501Reference
19597341Reference
196026914Reference
196136125Reference
196247798Reference
196360278Reference
Final66032Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Charging amps20Reference
Batteries1 (gas)Reference
Batteries2 (diesel)Reference
Battery volts12 (gas)Reference
Battery volts6 (diesel)Reference
Attachment overview
International Harvester 2001 loaderReference
International Harvester 2000 loaderReference
Test results
NTTL 669: diesel Torque Amplifier 2WDReference
NTTL 671: gasoline Torque Amplifier 2WDReference
NTTL 675: LP gas Torque Amplifier 2WDReference
Diesel Torque Amplifier 2WDSeptember 18 - 25, 1958Link: Nebraska Tractor Test 669 fileReference
PTO performanceReference
Fuel use15.5 l/hourReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Max pull3332 kgReference
Gear 1 used for pull test.Reference
Gasoline Torque Amplifier 2WDSeptember 24 - October 6, 1958Link: Nebraska Tractor Test 671 fileReference
Fuel use18.9 l/hourReference
Max pull3441 kgReference
Gear 1-TA used for pull test.Reference
LP gas Torque Amplifier 2WDOctober 8 - 20, 1958Link: Nebraska Tractor Test 675 fileReference
Belt fuel use (max)24.6 l/hourReference
Fuel use19.3 l/hourReference
Max pull3412 kgReference
Speeds
With 13.6-38 rear tires.Reference
With 16.6-38 rear tires.Reference
