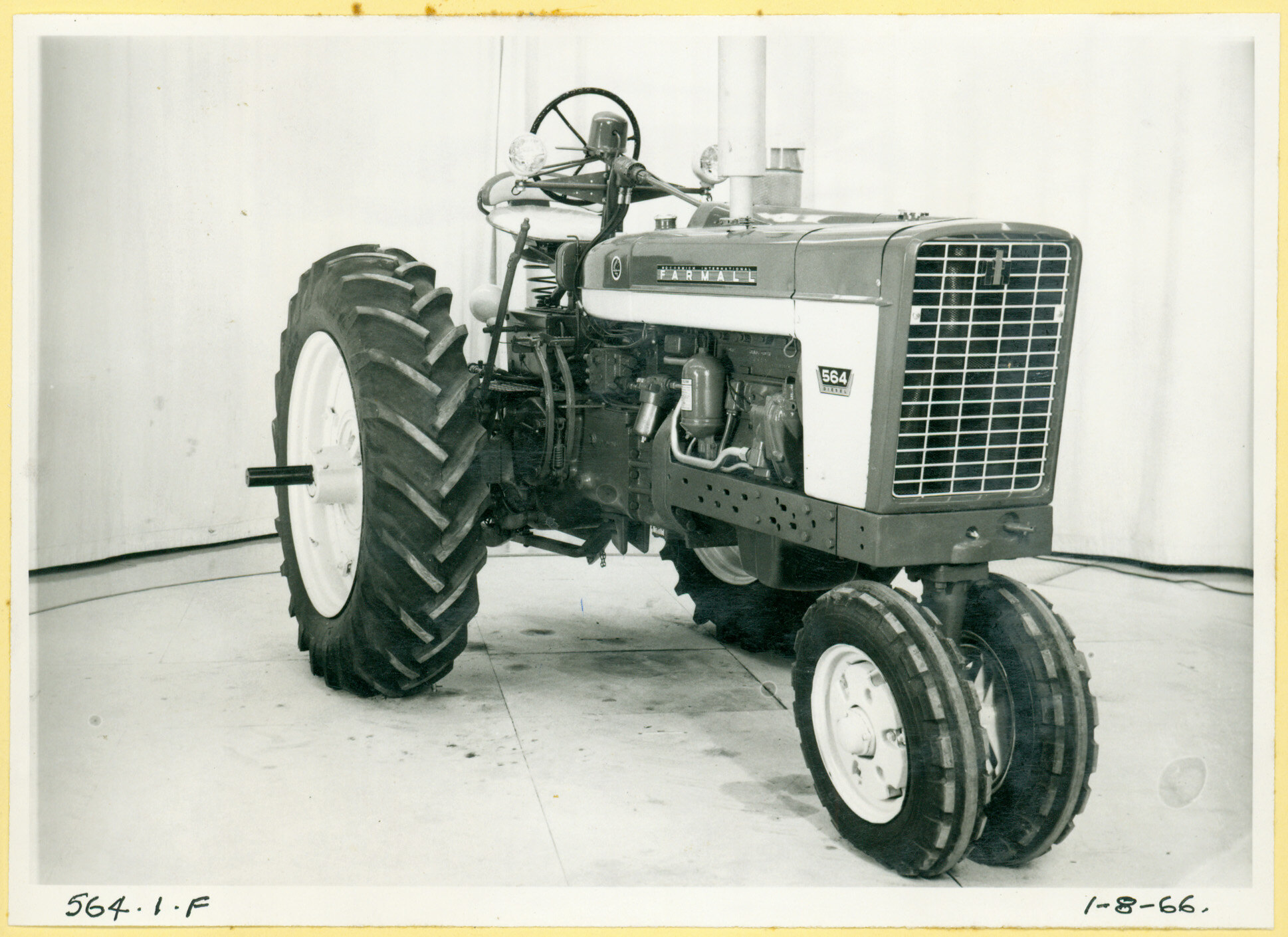

Farmall 564
Farmall 564 — Utility tractor · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
5465 to 6592 pounds
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
Utility tractorReference
Built in Neuss, GermanyReference
Two- or four-wheel driveReference
Manual steeringReference
Dry disc brakesReference
Open operator station.Reference
Engine
International Harvester 3.4L 4-cyl dieselReference
Engine44.7 kWReference
International Harvester D-206Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke98 x 111 mmReference
Power44.7 kWReference
Rated RPM2180Reference
Torque210.9 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity9.0 LReference
Coolant capacity17.5 LReference
Transmission
8-speed partially synchronizedReference
12-speed partial power shiftReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Oil capacity42.0 LReference
TransmissionAgriomatic SReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
Oil capacity35.0 LReference
The Agriomatic S provides an additional four forward speeds selected by a right-hand power shift lever. Pushing the lever forward engages the Agriomatic range, while rearward uses the conventional range. The Agriomatic speeds are between high and low ranges, so this provides an undershift in high range and an overshift in low range. In reverse range it operates as a power shuttle.Reference
Capacities
Fuel70.0 LReference
PTO & Hydraulics
Hydraulic system16.7 LReference
Capacity16.7 LReference
Rear TypeII/IReference
Rear lift2000 kgReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase212 cmReference
Weight5465 to 6592 poundsReference
Front tire6.00-16Reference
Rear tire12.4/11-36Reference
Ag front6.00-16Reference
Ag rear12.4/11-36Reference
Ag front6.50-16Reference
Ag front7.50-16Reference
Ag front7.50-18Reference
Ag rear13.6/12-36Reference
Ag rear13.6/12-38Reference
Ag rear14.9/13-30Reference
Ag rear16.9/14-30Reference
Ag rear16.9-14/34Reference
Ag rear18.4/15-30Reference
Ag rear15.5-38Reference
Length355 cmReference
Width178 cmReference
Height175 cmReference
2WD Weight2478 kgReference
4WD Weight2990 kgReference
Ground clearance38 cmReference
Electrical
Charging systemgeneratorReference
Charging amps11Reference
Charging volts14Reference
Batteries2Reference
Battery volts6Reference
Battery AH88Reference
Speeds
With 11-36 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
