Tractor · 1969Unverified
Farmall 826
Farmall 826 — Row-Crop tractor · 92 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
92 hp
Max power
58.9 kW
Weight
4472 kg
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
Row-Crop tractorReference
Built in Rock Island, Illinois, USAReference
Total built9,591Reference
Original price was $9,600 in 1971Reference
Two- or four-wheel driveReference
Final drivesbull gearReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic dry disc brakesReference

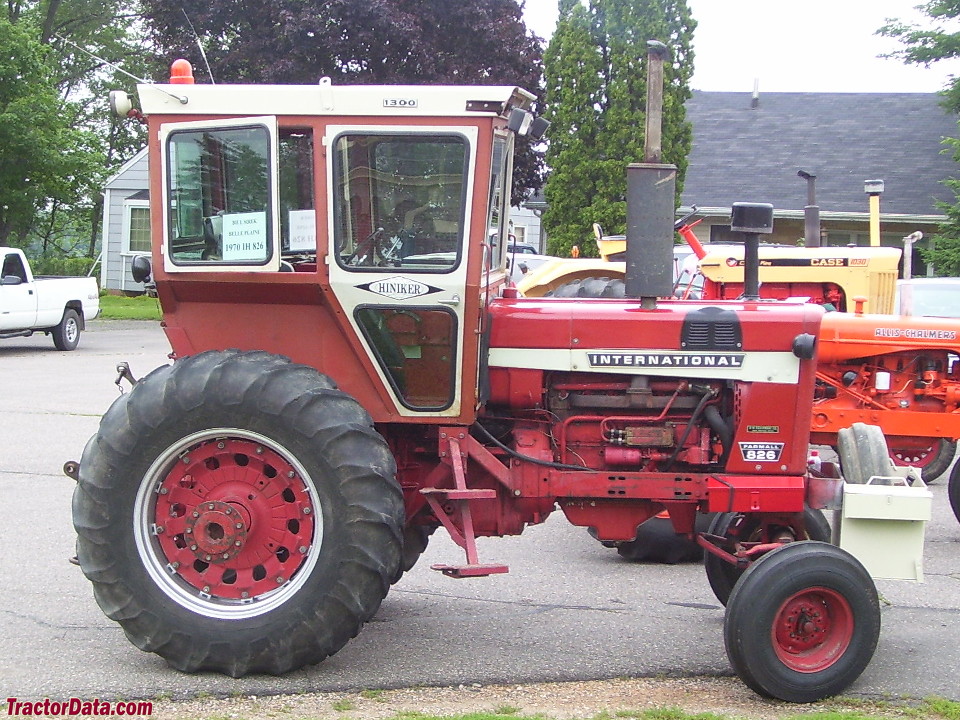

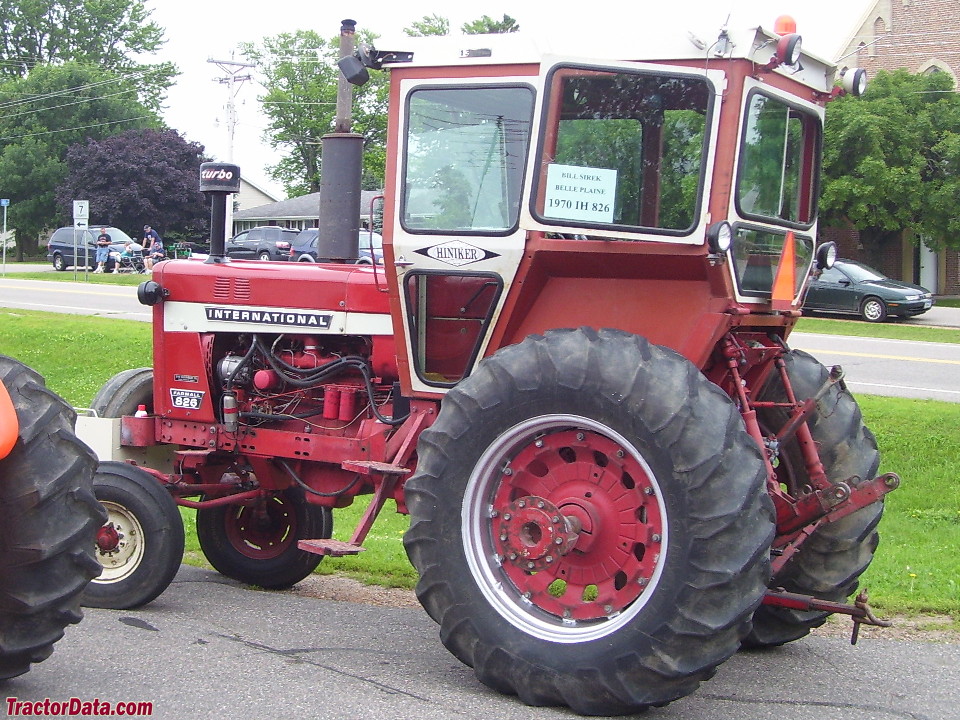

Open operator station. Cab optional.Reference
Variants
International 826standardReference
Farmall 826row-cropReference
International 2826industrialReference
Engine
International Harvester 5.9L 6-cyl dieselReference
International Harvester 4.9L 6-cyl gasolineReference
International Harvester 4.9L 6-cyl LP-gasReference
Fuel tank140.0 LReference
Hydro Drawbar (claimed)45.5 kWReference
Drawbar (tested)58.9 kWReference
International Harvester D-358Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke98 x 129 mmReference
Air cleanerdual stage dryReference
Compression16:1Reference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity11.4 LReference
Coolant capacity35.0 LReference
International Harvester C-301Reference
gasolineReference
Displacement4.9 LReference
Bore/Stroke97 x 112 mmReference
LP-gasReference
Power at rated engine speed68.7 kWReference
Max power58.9 kWReference
Power at rated engine speed63.1 kWReference
Max power45.8 kWReference
Transmission
16-speed two-speed power shiftReference
hydrostaticReference
Gear Drawbar (claimed)58.9 kWReference
Gear Operating weight4472 kgReference
TransmissionInternational Harvester Torque AmplifierReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Gear PTO (claimed)68.6 kWReference
Hydro PTO (claimed)62.6 kWReference
PTO (tested)68.7 kWReference
Typeopen centerReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Rear PTO Type540/1000Reference
Engine RPM540@2100Reference
Engine RPM1000@2100Reference
Power at rated PTO speed63.6 kWReference
Power at rated PTO speed58.9 kWReference
Dimensions
Wheelbase266 cmReference
Weight4472 kgReference
Front tire9.5L-15Reference
Rear tire18.4-34Reference
Ag front9.5L-15Reference
Ag rear18.4-34Reference
Length416 cmReference
Height (steering wheel)213 cmReference
Ballasted weight6277 kgReference
Bar rear axle82 by 2336 mmReference
Farmall 826 attachments
front-end loaderReference
826 Serial Number Location
Clutch housing, left sideReference
826 Serial Numbers
19697501 (Farmall)Reference
19708153 (Farmall)Reference
197116352 (Farmall)Reference
19697501 (IH)Reference
19707518 (IH)Reference
19717719 (IH)Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Batteries2 (diesel)Reference
Batteries1 (gas/LP)Reference
Battery volts6 (diesel)Reference
Battery volts1 (gas/LP)Reference
Test results
NTTL 1045: D358 diesel Torque Amplifier 2WDReference
NTTL 1046: D358 diesel hydrostatic 2WDReference
D358 diesel Torque Amplifier 2WDJune 3 - 27, 1970Link: Nebraska Tractor Test 1045 fileReference
PTO performanceReference
Fuel use23.5 l/hourReference
Fuel use3.8 l/hourReference
Drawbar performanceReference
Gear 1-Hi-TA used for power test.Reference
Max pull4368 kgReference
Gear 3-Lo-TA used for pull test.Reference
D358 diesel hydrostatic 2WDJune 6 - 27, 1970Link: Nebraska Tractor Test 1046 fileReference
Fuel use23.8 l/hourReference
Fuel use21.2 l/hourReference
Fuel use23.1 l/hourReference
Max pull3982 kgReference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
